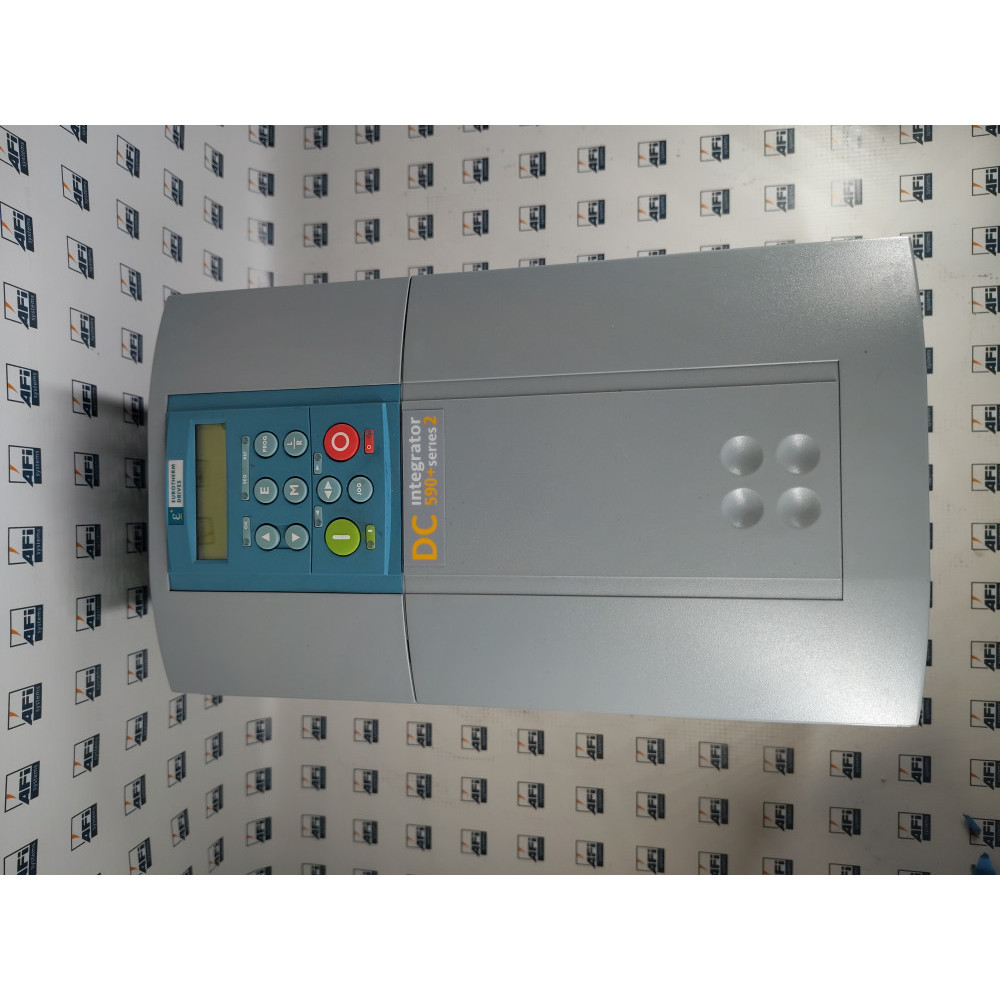

Parker 955+8R0020 DC590+ Integrator Series DC Drive
955+8R0020 DC590+ Integrator Series 4Q Regenerative DC Drive by Parker /w/ 3ph 220...500VAC Input ±10% @ 50/60Hz, 110VDC Auxiliary Supply and 15kW, 20HP, 35A Output.
Terminals Include 5x AI (4 Configurable), 3x AQ (2 Configurable), 9x DI (5 Configurable; 15mAmax @ 24V) and 3x DQ (3 Configurable; 100mA @ 24V...30Vmax).
DRV Option, Comes Installed /w/ AC Line Contactor + Fuses, DC Fuse, Control / Field Fuses and Motor Blower Starter.
IP20 Enclosure, Rated for 0...45°C (Derate 1%/°C up to 55°Cmax) and 500m Altitude (Derate 1%/200m up to 5000mmax).
Frame 1: 220mm Deep x 200mm Wide x 375mm High /w/ 6.4kg Weight.
955+8R0020 Specifications
| Supply Voltage (VAC) | 220...500 |
| Power Output (kW) | 15 |
| Power Output (HP) | 20 |
| Output Current (A) | 35 |
| Input Phase | Three |
| Control Voltage (VDC) | 110 |
