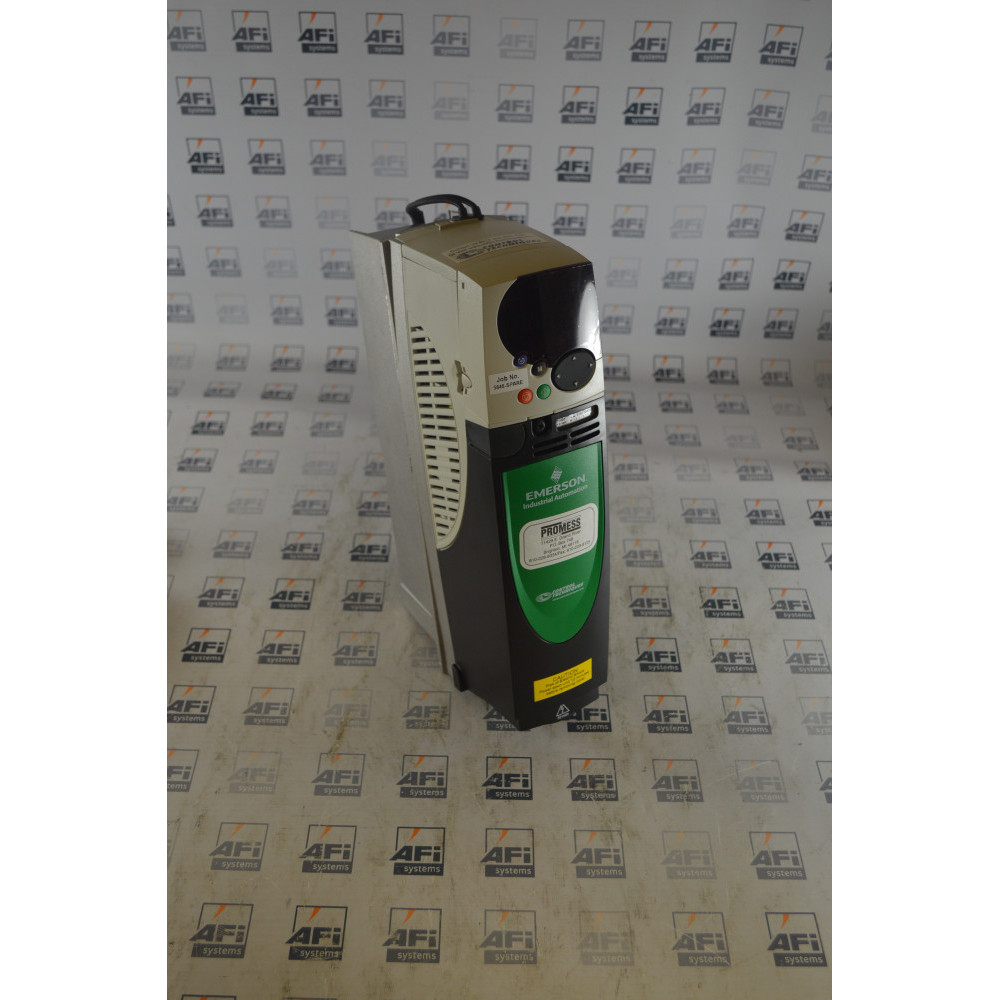

Control Techniques Unidrive SP1401 AC Inverter Drive
The Control Techniques SP1401 is a 3 phase, 0.75kW, 2.1 amp, 380-460V AC inverter drive from the Unidrive SP range.
AFi systems are able to both supply and repair this drive and also other drives from within the Unidrive SP range.
In a breakdown situation we know that speed is key, so if your requirement is urgent give us a call for the fastest possible delivery.
All parts are supplied with our standard 2 year warranty.
SP1401 Specifications
| AC Drive Application | HVAC Fan & Pump |
| AC Drive Depth (mm) | 219 |
| AC Drive Filter | Industrial |
| AC Drive Heavy Duty Output (kw) | 0.75 |
| AC Drive Height (mm) | 322 |
| AC Drive Input Voltage (VAC) | 380...480V AC |
| AC Drive Keypad | Yes |
| AC Drive Logic | Positive |
| AC Drive Loop | Closed |
| AC Drive NEMA Rating | Nema 1 |
| AC Drive Normal Duty Output (kw) | 1.1 |
| AC Drive Nr Analog Inputs | 3 |
| AC Drive Nr Analog Outputs | 2 |
| AC Drive Nr Digital Inputs | 7 |
| AC Drive Nr Digital Outputs | 3 |
| AC Drive Nr Relay Outputs | 1 |
| AC Drive Phase | Three Phase |
| AC Drive Protection | IP20 |
| AC Drive Weight (kg) | 5 |
| AC Drive Width (mm) | 62 |
| AC Drive Heavy Duty Output (Amps) | 2.1 |
| AC Drive Normal Duty Output (Amps) | 2.8 |
Tags: SP1401
