• Danfoss, 132F0022, FC-051P2K2T4E20H3BXCXXXSXXX, (Repair Yours)

Helvetica
Arial

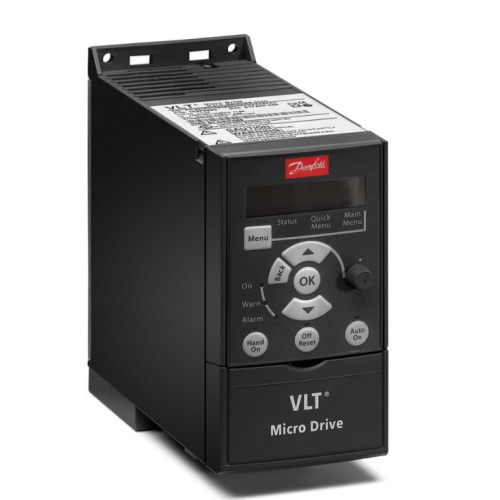

sans-serif; font-size: 14px;">Variable Speed / Frequency Drive (VSD/VFD) / Inverter - Danfoss (VLT FC051) - Configuration code FC-051P2K2T4E20H3BXCXXXSXXXX - Rated input voltage (3-phase) 380Vac-480Vac - Rated power (normal duty) 2.2kW / (normal duty) 3HP - Rated output current 5.3A (380-480Vac; normal duty) - Frequency (output) 0-200Hz - Frame size M2 - IP20 - with FC Protocol; Modbus RTU communication capability - Surface mounting.

Helvetica
Arial
sans-serif; font-weight: lighter; color: rgb(98
98
114); font-size: 1.857rem; padding: 1.5rem 0px;">Specifications

Helvetica
Arial
sans-serif; font-size: 14px;">
Primary brand
Danfoss
Main function
Variable Speed / Frequency Drive (VSD/VFD) / Inverter
Product series / family name
VLT
Sub-range name
FC051
Supply voltage (AC)
380Vac-480Vac
Rated current
5.3A (380-480Vac; normal duty)
Rated active power (kW)
(normal duty) 2.2kW
Rated power (HP)
(normal duty) 3HP
Communication protocol
FC Protocol
Modbus RTU
Digital inputs
1 x digital input (FWD)
1 x digital input (REV)
1 x digital input (RESET)
1 x digital input (JOG)
1 x digital input (Preset ref bit 0)
Digital outputs
1 x digital output (SPDT Single Pole Double Throw contact type)
Analog inputs
2 x analog inputs (0-20mA / 4-20mA / 0-10V DC)
Analog outputs
1 x analog output (0-20mA / 4-20mA DC)
Degree of protection
IP20
Functions
Variable Speed / Frequency Drive (VSD/VFD) / Inverter
Compliant with standard(s)
CE
C-tick
UL
Power dissipation/losses
57.5 W
81.5 W
Type of network
3-phase
Network frequency
(input) 50-60 Hz
(output) 0-200 Hz
Order code / Manufacturer SKU
FC-051P2K2T4E20H3BXCXXXSXXXX
Mounting mode
Surface
Analog outputs
1 x analog output (0-20mA / 4-20mA DC)
Degree of pollution
2


Repair

Replace

Refurbish

Starting with our Free Evaluation and Quote, our ISO certified repairs staff is ready to run your drive through a litany of tests and maintenance procedures. We offer fast turnaround and friendly, professional service.

  • Certified technicians follow a step-by-step diagnostic process
  • Free evaluations
  • No fix no fees repairs
  • Fast repair turnaround
  • State of the art testing equipment
  • Electronic repairs warranted for two years
