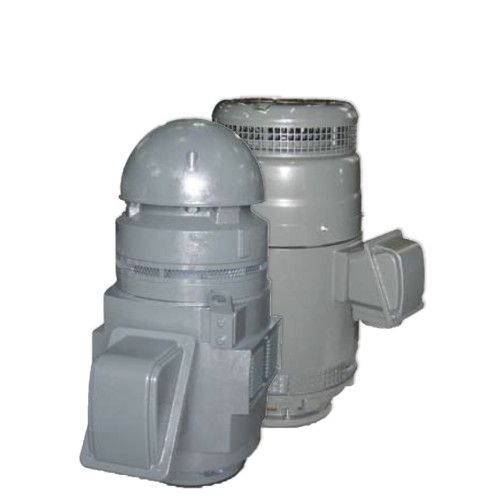

Teco Westinghouse Max-VH Vertical Hollow Shaft WP1 VHP3004 1800 RPM, 300 HP, 230/460 VAC (Factory New)
MAX-VH Vertical Hollow Shaft WP1
HP 7.5 hp through 400 hp
Speed 1800 RPM
Voltage 230/460V, 460V, 575V
Frequency 60Hz.
Features
- High Thrust Vertical Hollow Shaft with P-base
- Standard with Coupling and Gib Key
- Standard with Non-Reverse Ratchet and Heavy Duty Stainless Steel Pins
- Meets or Exceeds EPAct Efficiency Levels
- 36 Month Warranty from Date of Manufacture
- 1.15 Service Factor - Continuous on Sine Wave Power, 1.0 S.F. on PWM
- Class F Insulation with 2 Dips & Bakes and Phenolic Alkyd Resin Varnish Finish
- Cast Iron Frame, End Brackets, and Main Conduit Box
- Fabricated Steel Drip Cover
- 1045 Carbon Hollow Steel Shaft
- 9 Leads (PWS on 230V) on 210TP to 365TP
- 12 Leads (PWS on 230V) on 404TP to 405TP
- 6 Leads (PWS on 460V) on 444TP and Larger
- Inverter Duty - 4:1 Variable Torque
VHP3004 Specifications
| AC Motor Voltage (VAC) | 460 |
| AC Motor Power (HP) | 400 |
| AC Motor Power (KW) | 299 |
| AC Motor Speed (RPM) | 1800 |
| AC Motor Frame (Type) | 447TP |
| AC Motor Enclosure (Type) | WP1 |
| Generic Length (in) | 26.0 |
| Generic Width (in) | 37.8 |
| Generic Height (in) | 59.73 |
| Generic Weight (lbs) | 3320.00 |
