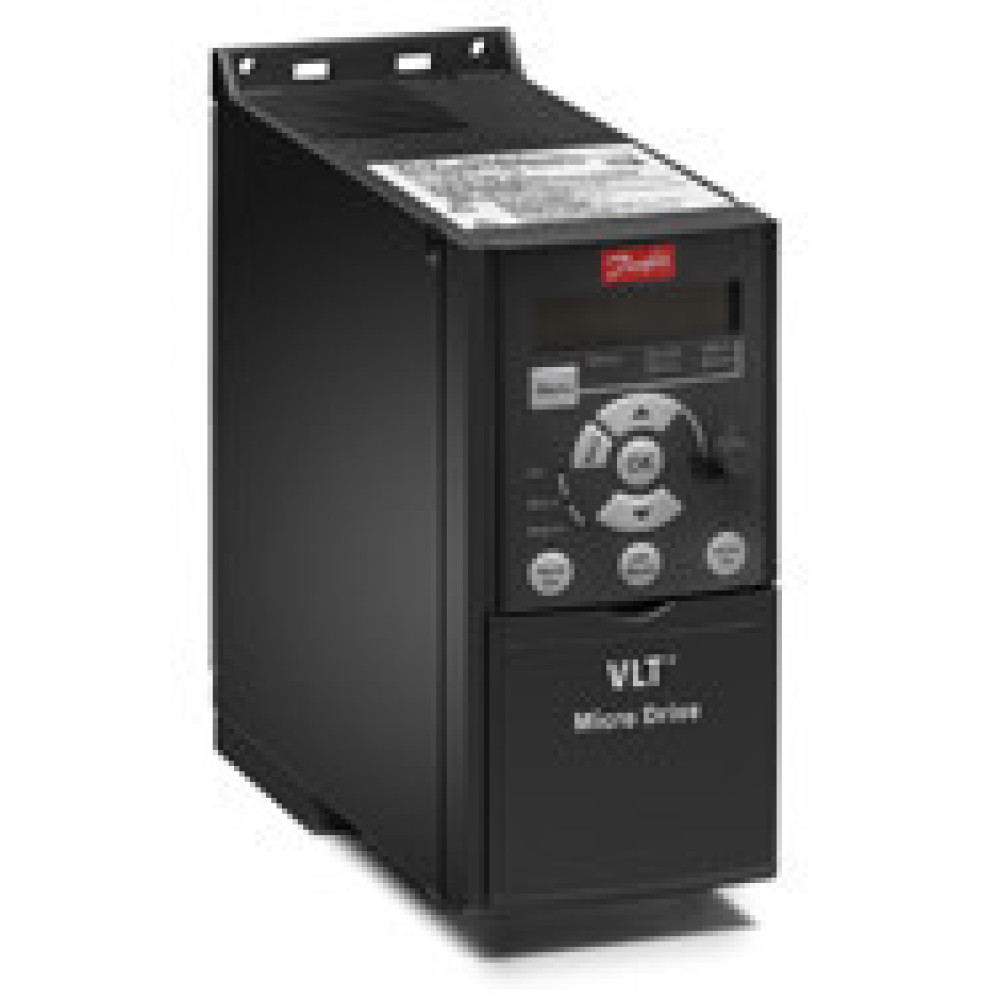

Image shown is a representation only. Actual product may vary
132F0020 1.5kW 4.1 A inverter drive , Three Phase 380...480V AC supply (no keypad)
The 132F0020 is a 1.5kW, 4.1A, Three Phase variable speed drive with a 380...480V AC supply. As part of the VLT Micro Drive series, this drive is incredibly compact, and side by side mounting without derating is possible thanks to the book style design, making it suited to many industrial and HVAC applications. Like the rest of the VLT range, the 132F0020 1.5kW AC drive is built with quality and reliability in mind not to mention ease of use and great functionality.
As an approved Danfoss repair center AFi are able to offer comissioning support for the 132F0020 as well as the rest of the VLT Micro Drive family. We can also offer 132F0020 repairs.
132F0020 Specifications
| AC Drive Application | General Purpose |
| AC Drive Input Voltage (VAC) | 380...480V AC |
| AC Drive Heavy Duty Output (Amps) | 4.1 |
| AC Drive Heavy Duty Output (kw) | 1.5 |
| AC Drive Normal Duty Output (Amps) | 4.1 |
| AC Drive Normal Duty Output (kw) | 1.5 |
| AC Drive Phase | Three Phase |
| AC Drive Protection | IP20 |
| AC Drive Keypad | No |
| AC Drive Filter | Industrial |
| AC Drive Communications | Modbus Comms |
| AC Drive Loop | Open |
| AC Drive Logic | Positive, Negative |
| AC Drive Nr Digital Inputs | 5 |
| AC Drive Nr Analog Inputs | 2 |
| AC Drive Nr Analog Outputs | 1 |
| AC Drive Nr Relay Outputs | 1 |
| AC Drive Pulse Input | 1 |
| AC Drive Height (mm) | 176 |
| AC Drive Width (mm) | 75 |
