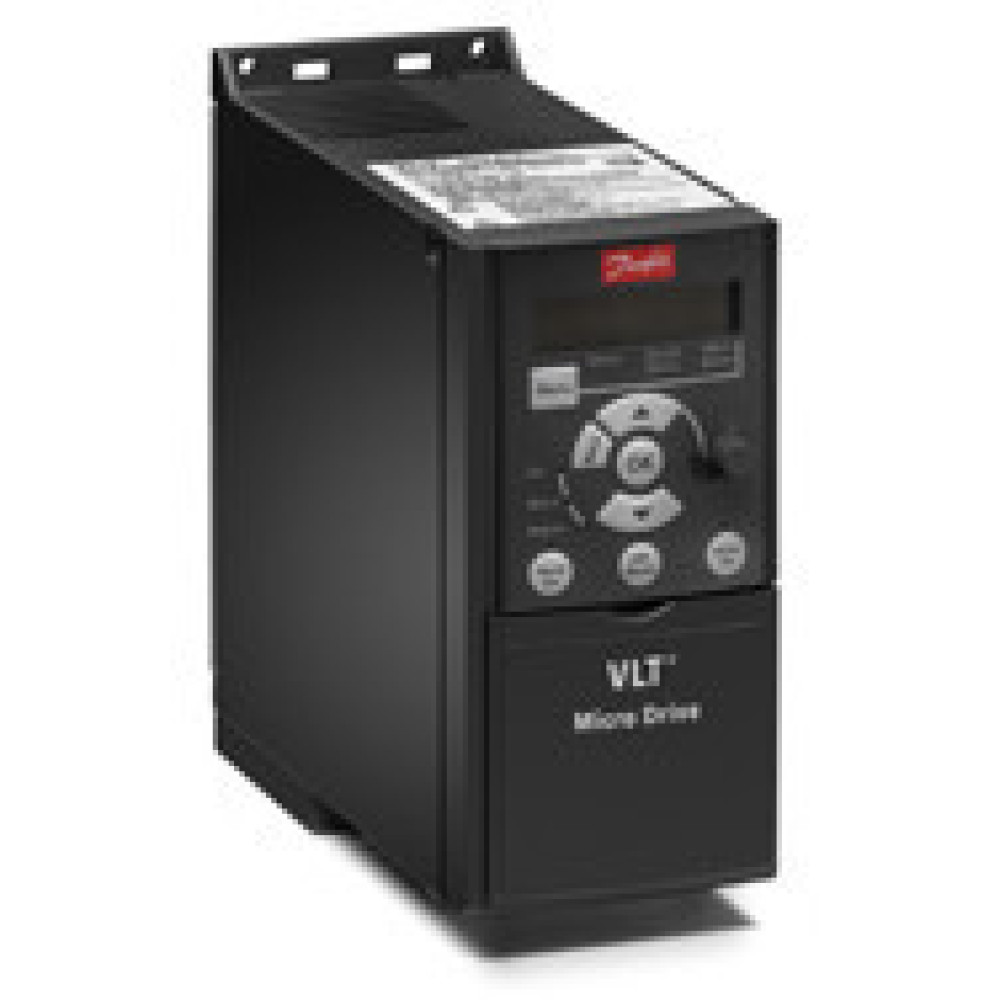

Image shown is a representation only. Actual product may vary
132F0022 2.2kW 5.6 A inverter drive , Three Phase 380...480V AC supply (no keypad)
The 132F0022 is a 2.2kW, 5.6A, Three Phase AC drive with a 380...480V AC supply. As part of the VLT Micro Drive family, this AC drive is exceptionally small, and the book style design enables side by side mounting without derating, making it perfect for many industrial and HVAC applications. Like the rest of the VLT family, the 132F0022 2.2kW AC drive is built with quality and reliability in mind not to mention ease of use and great functionality.
As an authorised Danfoss service partner AFi are able to offer set up support for the 132F0022 as well as the rest of the VLT Micro Drive family. We can also offer 132F0022 repairs.
132F0022 Specifications
| AC Drive Application | General Purpose |
| AC Drive Input Voltage (VAC) | 380...480V AC |
| AC Drive Heavy Duty Output (Amps) | 5.6 |
| AC Drive Heavy Duty Output (kw) | 2.2 |
| AC Drive Normal Duty Output (Amps) | 5.6 |
| AC Drive Normal Duty Output (kw) | 2.2 |
| AC Drive Phase | Three Phase |
| AC Drive Protection | IP20 |
| AC Drive Keypad | No |
| AC Drive Filter | Industrial |
| AC Drive Communications | Modbus Comms |
| AC Drive Loop | Open |
| AC Drive Logic | Positive, Negative |
| AC Drive Nr Digital Inputs | 5 |
| AC Drive Nr Analog Inputs | 2 |
| AC Drive Nr Analog Outputs | 1 |
| AC Drive Nr Relay Outputs | 1 |
| AC Drive Pulse Input | 1 |
| AC Drive Width (mm) | 90 |
