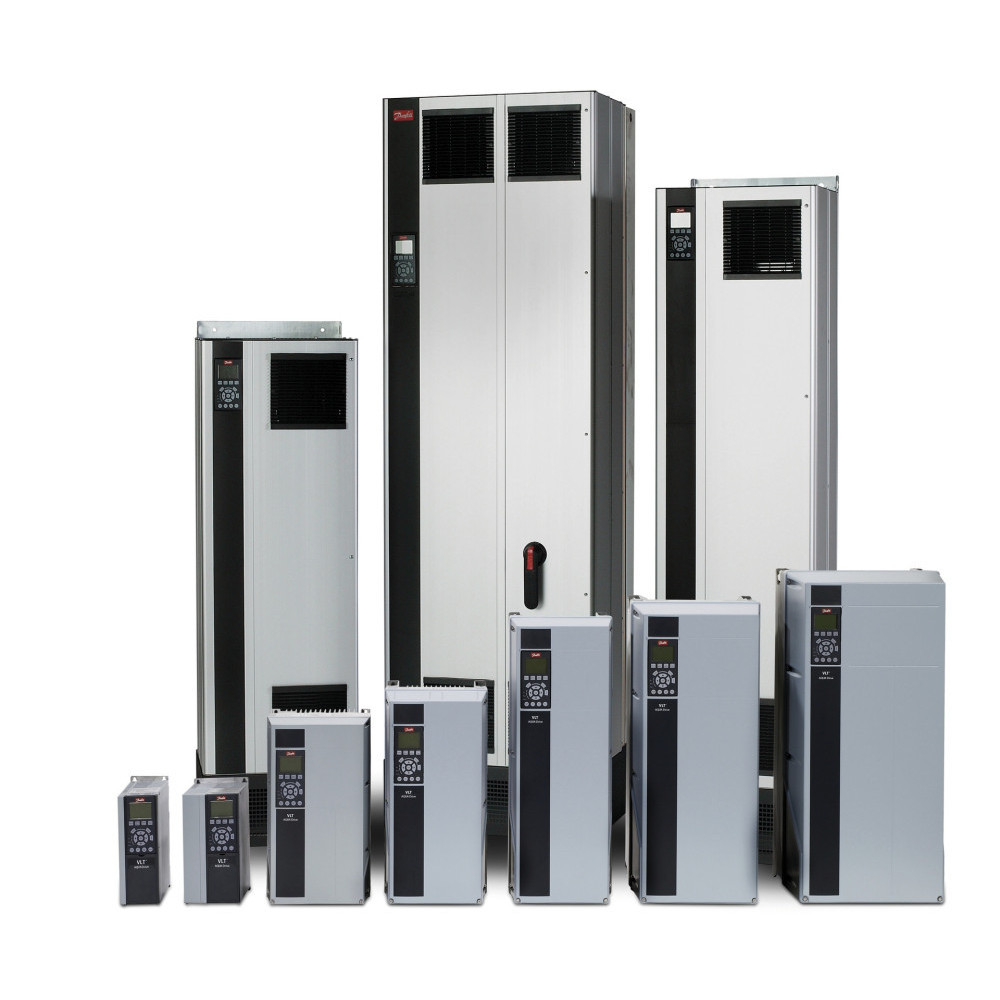

    Image shown is a representation only. Actual product may vary

135X1957 Danfoss

Get Yours Repaired

Fast Turnaround!

2 Year AFI Warranty!

Secure Checkout!

Eco Friendly Option!


Fast Turnaround!

2 Year AFI Warranty!

Secure Checkout!

Eco Friendly Option!

Danfoss 135X1957 315kW 450HP 540A 3ph 380...480VAC IP54 Rated VLT AQUA Drive FC-202

Part of Danfoss's VLT AQUA Drive FC-202 series, the 135X1957 (typecode: FC-202N355T4E54H2XGC7XXSXXXXAXBXCXXXXDX) is a variable frequency drive taking a 3ph 380...480 supply and outputting 315kW, 450HP, 540A.

Terminal Information

Note: Logic can be switched between PNP and NPN (source and sink) via parameter 5-00. All digital inputs must be configured from digital input terminals.
6x DI (24VDC nominal, 28VDCmax; OFF <5VDC, ON >10VDC in PNP operation; OFF >19VDC, ON <14VDC in NPN operation).
2x AI (Individually conf. as voltage/current via DIP switch; 0...10V input in voltage mode, ±20V max. allowable, approx. 10kΩ impedance; 0/4mA...20mA in current mode, 30mA max. allowable, approx. 200Ω impedance).
2x DQ (40mA @ 0...24VDC).
1x AQ (0/4mA...20mA, 500Ω max. load).
All values given are for onboard drive I/O only, expansions not considered.

Physical Information

IP54, NEMA 12 rated unit; 2043mm x 602mm x 513mm (HxWxD), net weight of 295kg.
Rated for operation between 0°C...+50°C ambient @ 5...95% relative humidity non-condensing.
Suitable for altitudes =<1000m above sea-level without derating.
IE2 energy efficiency class and conformant to EN 61800-3 EMC emission and immunity standards.

Our Repair Process

Any products sent for repair at AFi Systems come with a 2-year warranty to ensure you can be confident in your product upon its return. We will thoroughly service your 135X1957, ensuring it is bench tested and confirmed operational. Any components subject to degradation over time such as fans and electrolytic capacitors will be replaced to ensure a greater lifespan for your inverter.

Any Questions?

If you require any assistance or have any questions about whether this 315kW 135X1957 is right for your application and/or environment, be sure to call or email for help. AFi Systems are happy to fulfill your requests, and can ship drives to you quickly.

135X1957 Specifications

Input Voltage (VAC) 380...480
Heavy Duty Power Output (kW) 315
Heavy Duty Power Output (HP) 450
Heavy Duty Output Current (A) 540
Normal Duty Power Output (kW) 355
Normal Duty Power Output (HP) 500
Normal Duty Output Current (A) 590
Input Phase Three
Ingress Protection Rating IP54
NEMA Rating NEMA 12
EMC Filter Class A2 (C3)
Drive Keypad Yes
Drive Loop Open, Closed
Drive Logic Positive, Negative
Drive Communications Modbus
No. of Digital Inputs 6
No. of Analog Inputs 2
No. of Digital Outputs 2
No. of Analog Outputs 1
No. of Relay Outputs 2
Pulse Input 2
Brake Chopper No
Conformal Coating Yes
Safe Torque Off No
Height (mm) 2043
Width (mm) 602
Depth (mm) 513
Weight (kg) 295
