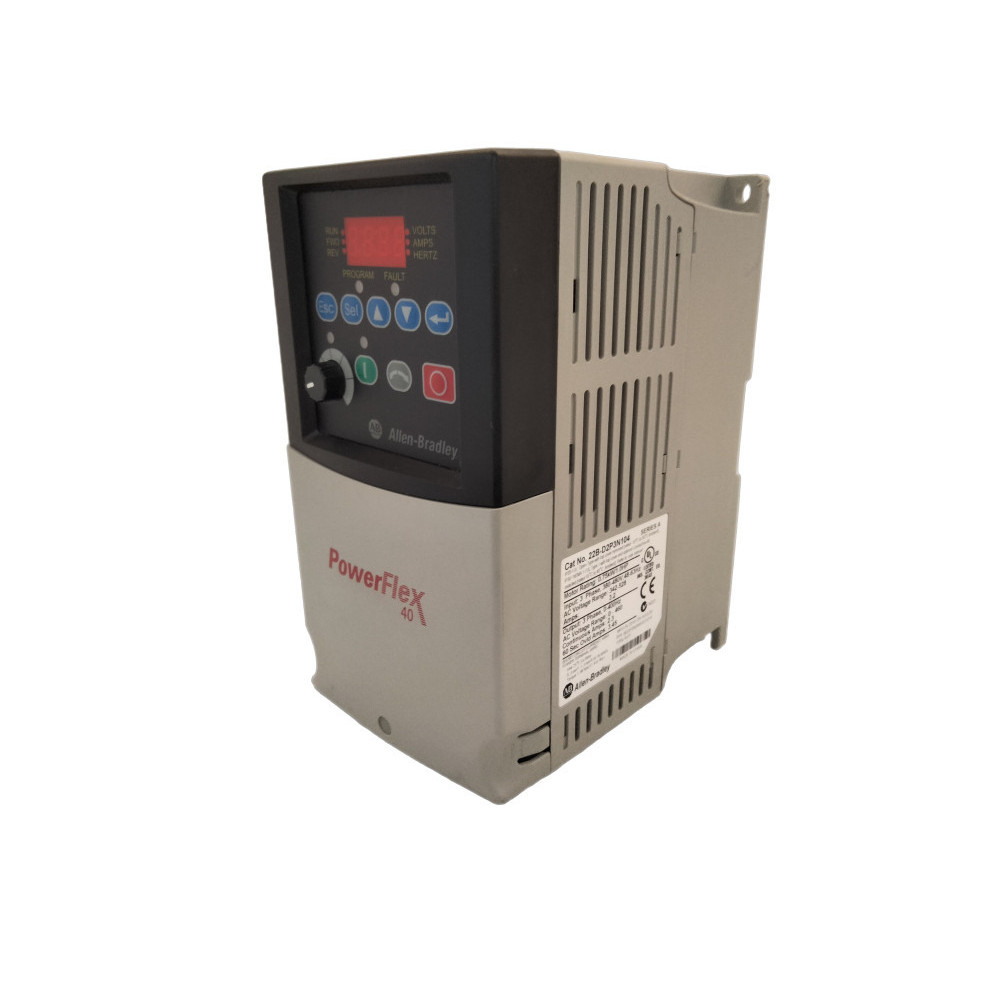

Allen-Bradley 22B-D2P3N104 PowerFlex 40 Series AC Drive
The 22B-D2P3N104, part of the PowerFlex 40 range by Allen-Bradley, is an inverter /w/ 3ph 380...480VAC supply @ 50/60Hz and 0.75kW, 1HP, 2.3A output.
IP20, NEMA/UL open type rated enclosure, frame size B; 180mm x 100mm x 136mm (HxWxD), net weight of 2kg.
22B-D2P3N104 SER A Specifications
| Input Voltage (VAC) | 380...480 |
| Heavy Duty Power Output (kW) | 0.75 |
| Heavy Duty Power Output (HP) | 1 |
| Heavy Duty Output Current (A) | 2.3 |
| Input Phase | Three |
| Ingress Protection Rating | IP20 |
| EMC Filter | None |
| Drive Keypad | Yes |
| Drive Loop | Open |
| Drive Logic | Positive, Negative |
| Drive Communications | Modbus |
| No. of Digital Inputs | 7 |
| No. of Analog Inputs | 2 |
| No. of Analog Outputs | 1 |
| No. of Digital Outputs | 2 |
| No. of Relay Outputs | 1 |
| Height (mm) | 180 |
| Width (mm) | 100 |
| Depth (mm) | 136 |
| Weight (kg) | 2 |
