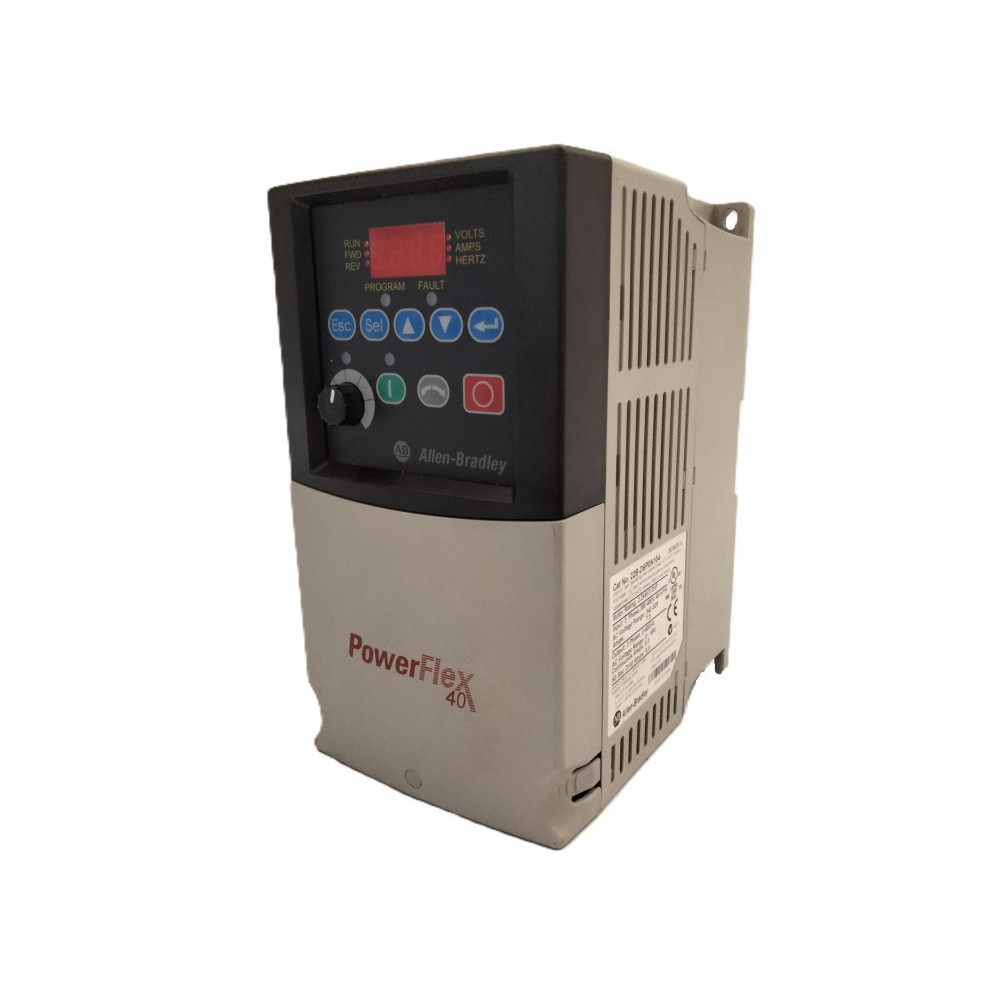

Image shown is a representation only. Actual product may vary -
-
-
-
Allen-Bradley 22B-D6P0N104 2.2kW PowerFlex 40 Series Inverter
The 22B-D6P0N104 is an Allen-Bradley PowerFlex 40 series inverter /w/ 3ph 380...480VAC ±10% supply and 2.2kW, 3HP, 6A output.
Terminals include 7x DI, 2x DQ, 2x AI, 2x AQ and 1x Relay Contact. Unfiltered drive, suitable for operation between -10°C...+40°C.
IP20, NEMA/UL type open rated enclosure, frame size B; 180mm x 100mm x 136mm (HxWxD), net weight of 2.2kg.
22B-D6P0N104 Ser A Specifications
| AC Drive Input Voltage (VAC) | 380...480 |
| AC Drive Heavy Duty Output (HP) | 3 |
| AC Drive Heavy Duty Output (Amps) | 6 |
| AC Drive Heavy Duty Output (kw) | 2.2 |
| AC Drive Phase | Three Phase |
| AC Drive Protection | IP20 |
| AC Drive Keypad | Yes |
| AC Drive Filter | No Filter |
| AC Drive Communications | Modbus |
| AC Drive Loop | Open |
| AC Drive Logic | Negative, Positive |
| AC Drive Nr Digital Inputs | 7 |
| AC Drive Nr Analog Inputs | 2 |
| AC Drive Nr Digital Outputs | 2 |
| AC Drive Nr Analog Outputs | 1 |
| AC Drive Nr Relay Outputs | 1 |
| AC Drive Height (mm) | 180 |
| AC Drive Depth (mm) | 136 |
| AC Drive Width (mm) | 100 |
| AC Drive Weight (kg) | 2.2 |
