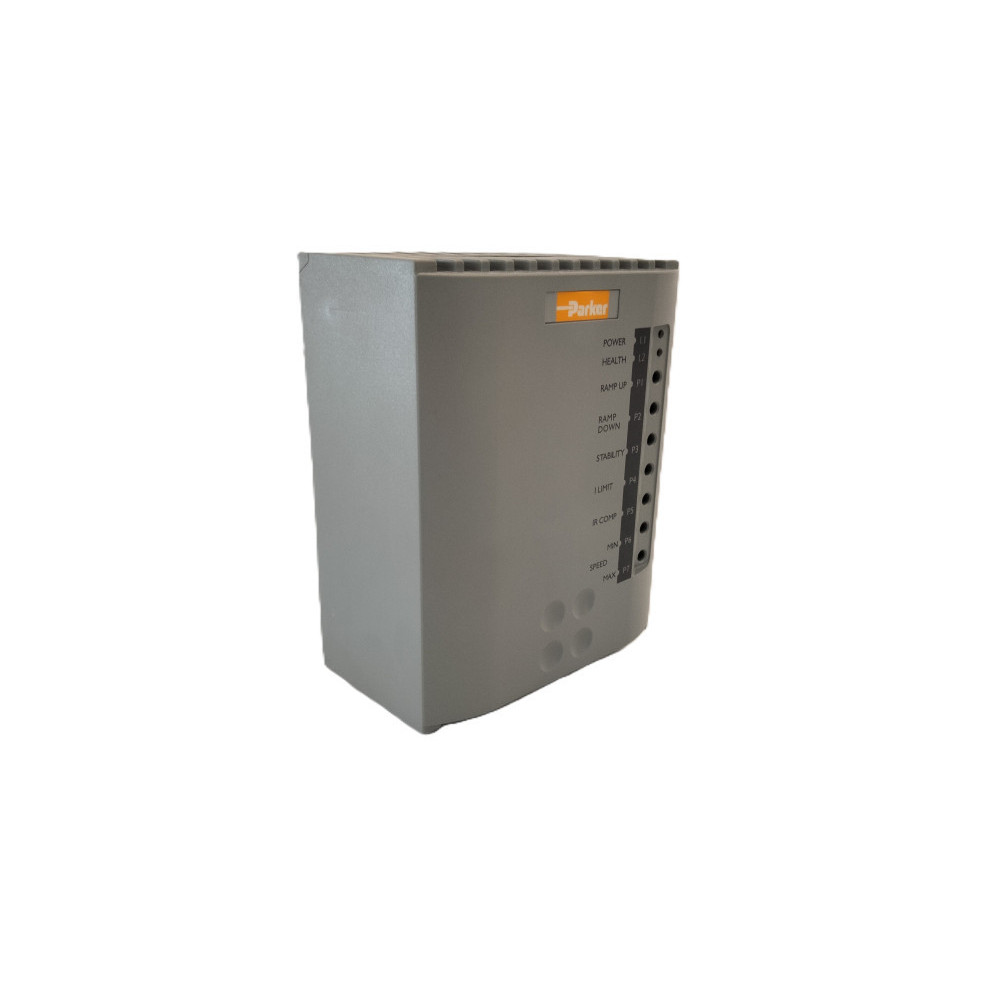

Image shown is a representation only. Actual product may vary -
-
-
-
Parker 506-01-20-00 1Q 3A 110/240VAC DC Thyristor Drive
The 506-01-20-00 by Parker is a single-quadrant DC drive /w/ a 1ph 110...120/220...240VAC @ 50/60Hz supply and an output of 0.21kW, 0.3HP, 3A output @ 90VDC and 0.43kW, 0.6HP, 3A @ 180VDC.
IP20 rated enclosure, frame size 1; 140mm x 105mm x 80mm (HxWxD), net weight of 0.6kg.
Rated for 40°C ambient temperatures. Requires 50mm ventilation space above and below; no side ventilation necessary. 10Wmax power loss due to heat.
506-01-20-00 Specifications
| Supply Voltage (VAC) | 110 / 230 |
| Power Output (kW) | 0.21 / 0.43 |
| Power Output (HP) | 03 / 0.6 |
| Output Current (A) | 3 |
| Input Phase | Single |
| Ingress Protection Rating | IP20 |
