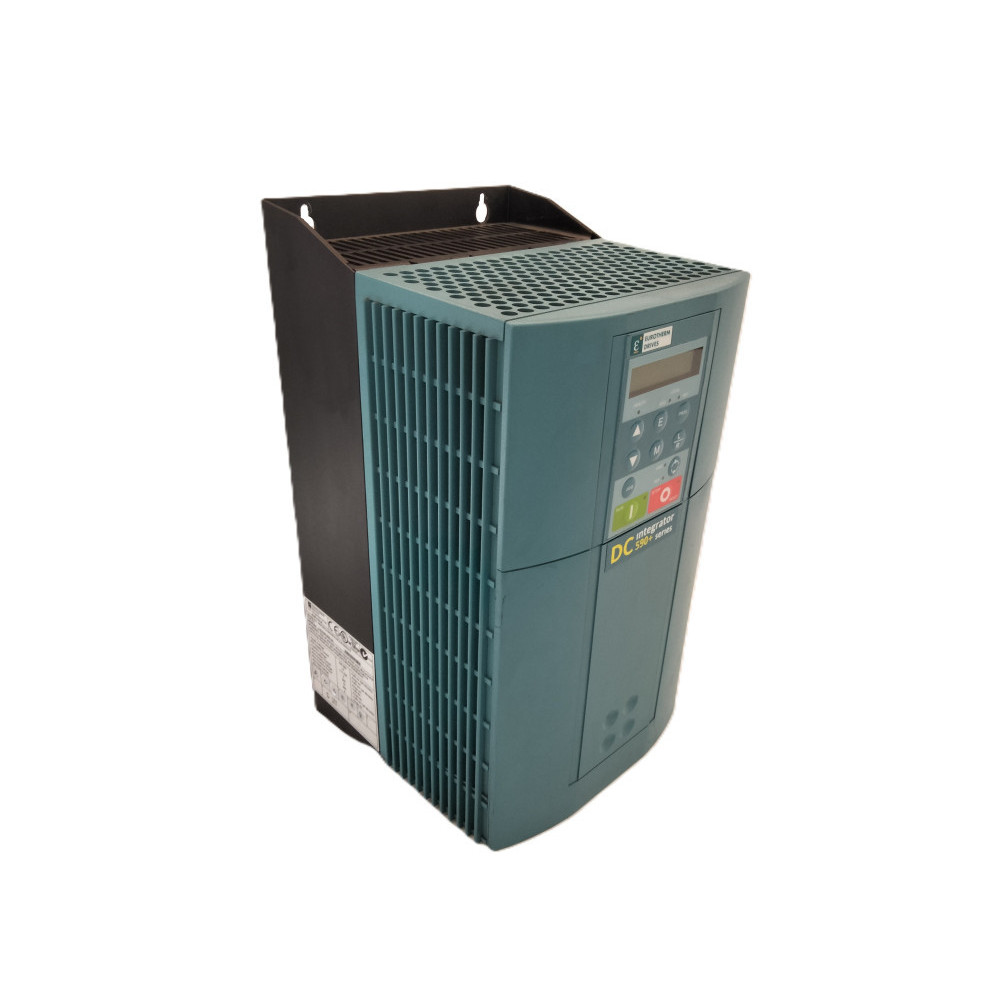

Image shown is a representation only. Actual product may vary -
-
-
-
Parker SSD 590P/0015/500/0011/UK/ARM/0/0/0 DC Drive
The 590P/0015/500/0011/UK/ARM/0/0/0, part of the 590P series by Parker, is a 4Q regenerative DC thyristor drive /w/ 3ph 220...500VAC supply ±10%, 110/230VDC control supply and 6kW, 8HP, 15A output.
Terminals include; 10x DI (5x conf., 2 as encoder in.), 5x AI (4x conf.), 3x DQ (3x conf.) and 3x AQ (2x conf.). Rated for 40° ambient temperature, /w/ 100mm ventilation above and below, 57Wmax loss to heat.
IP20 rated enclosure, frame size 1; 375mm x 200mm x 220mm (HxWxD), net weight of 6.4kg. Panel mount /w/ M6 screw fixings on 360mm x 140mm centers.
590P/0015/500/0011/UK/ARM/0/0/0 Specifications
| DC Drive Input Voltage (VAC) | 220...500 |
| DC Drive Output (Amps) | 15 |
| DC Drive Power (KW) | 6 |
| DC Drive Power (HP) | 8 |
| DC Drive Phase Input (Single/Three) | Three |
| DC Drive Control Voltage (VDC) | 110 / 230 |
