590P/0270/500/0011/UK/ARM/0/115/0 PARKER

Part of Parker's 590+ line, the 590P/0270/500/0011/UK/ARM/0/115/0 is a 4 quadrant regenerative DC thyristor drive /w/ 3ph 220...500VAC supply ±10% @ 50/60Hz, 110...120VAC ±10% auxiliary supply @ 50/60Hz and 120kW, 150HP, 270A output.

Physical Information

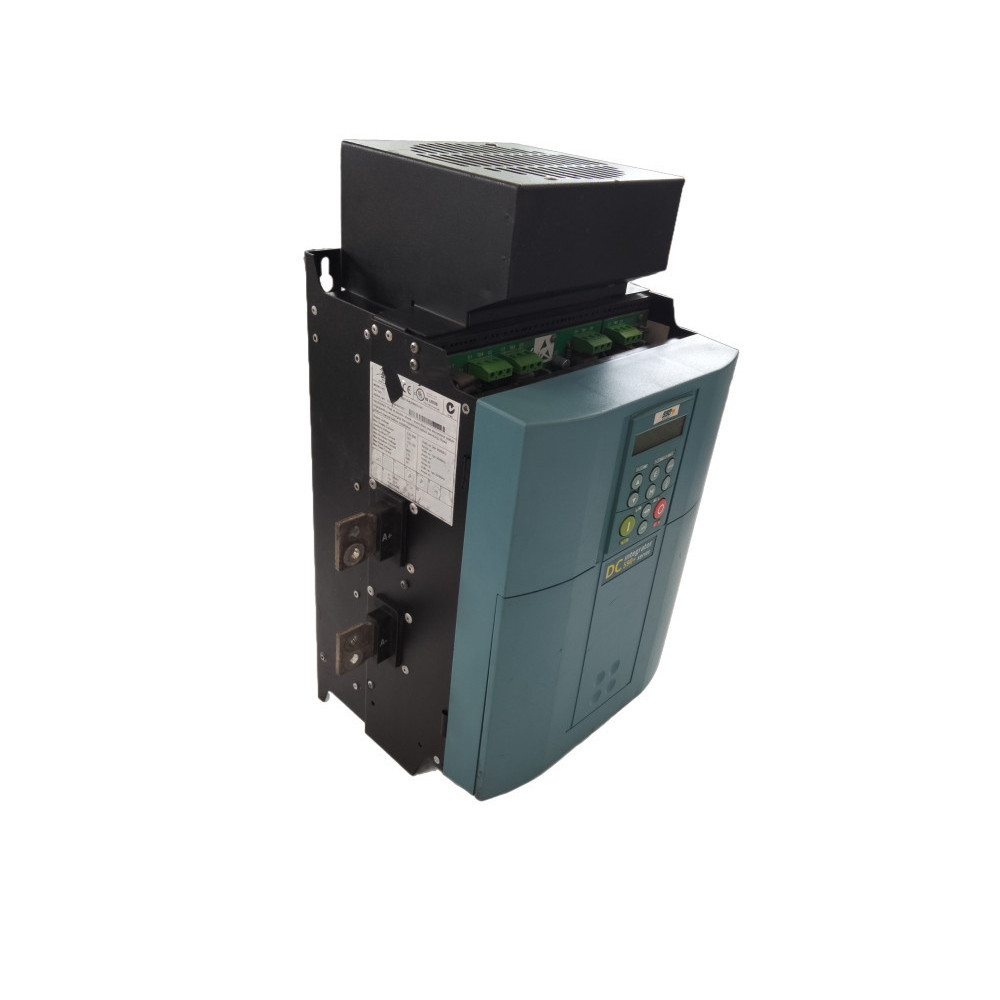

Standard IP20 rated panel mount, frame size 3 in standard SSD livery; 485mm x 300mm x 234mm (HxWxD) /w/ a weight of 20kg.
Rated for operating ambient temperatures between 0°C...+35°C, /w/ a maximum derating @ 55°C; derate linearly at 1%/Δ°C above maximum ambient operating temperature. 840W^max of total losses @ full load.
If >500m (1,650ft) above sea level, derate motor power rating by 1%/Δ200m to a maximum of 2,000m (6,561ft).
Suitable for 85%^max relative humidity at 40°C non-condensing. Operate in non-flammable, non-corrosive and dust-free atmosphere.
Uses 1 fan(s), rated for 40W @ 110...120VAC and 45/39W @ 220...240VAC. Cooled by forced vent of 120cfm (200m³/h) @ 60Pa.
Climactic conditions should fall under Class 3K3, as defined by EN60721-3-3 (1995).

Electrical Information

Armature input current of 243A, field current of 10A and a symmetrical fault current of 10kA^rms.
External power semiconductor protection fuse with a 500A rating to suit input bridge @ 125000A²s should be installed to ensure proper operation of the drive.
When isolating the drive from the AC power system, please use a choke with a rating of at least 243A and an inductance of 50µH^min.

Terminal Information

5x AI (4x conf., used as speed reference setpoints and auxiliary; variously -10V...0V, 0V...+10V).
3x AQ (2x conf., used for speed feedback, total speed setpoint, and current monitoring; -10V...+10V).
5x DI (All conf., used for current clamp, ramp hold, current demand isolate, jog/take-up slack, and quench; +24VDC).
3x DQ (All conf., used to check for zero speed, drive health and drive readiness; +24VDC).

Note: Analog inputs can be reconfigured as digital inputs for up to 10x DI.

Optional Fittings

This drive is configured to use armature voltage feedback. no communications module fitted module has been installed, /w/ built-in 6901 keypad to facilitate operator interface. Drive is set up for programming in English.

Our Repair Process

Any products sent for repair at AFi Systems come with a 2-year warranty to ensure you can be confident in your product upon its return. We will thoroughly service your 4 quadrant regenerative DC drive, ensuring it is bench tested and confirmed operational. Any components subject to degradation over time such as fans and electrolytic capacitors will be replaced to ensure a greater lifespan for your drive.

Any Questions?

If you require any assistance or have any questions about whether this 120kW 4Q regenerative DC drive is right for your application and/or environment, be sure to call or email for help. AFi Systems are happy to fulfil your requests, and can ship drives to you quickly.

Compliances

Europe: EN61800-5 : 2003, when fitted inside a cubicle
North America/Canada: UL508C
Overvoltage Category: Overvoltage Category III (3-phase supply), Overvoltage Category II (auxiliary supply)
Pollution Degree: Pollution Degree 2
