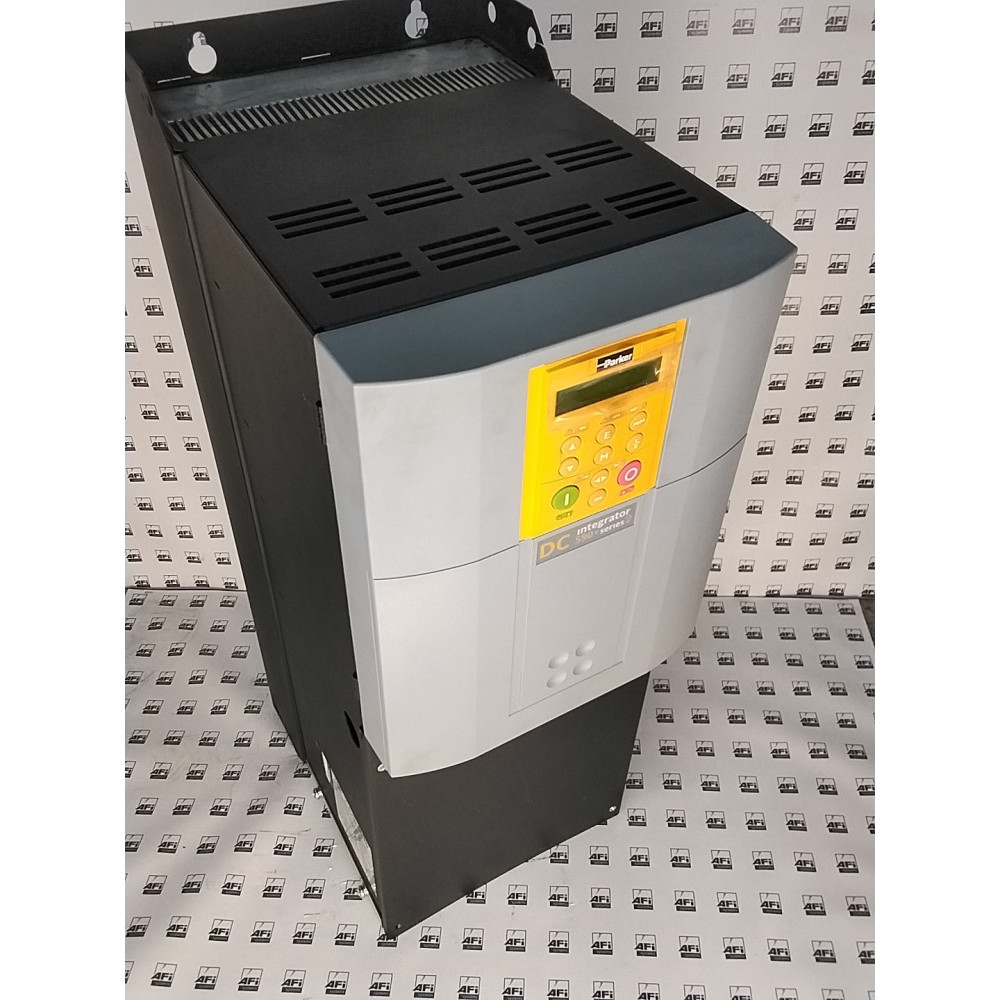

Parker 590P/0380/500/0041/UK/ARM/0/115/0 590+ Series DC Drive

Part of Parker's 590+ series, the 590P/0380/500/0041/UK/ARM/0/115/0 is a 4Q regenerative DC thryristor drive /w/ 3ph 220...500VAC supply ±10% @ 50/60Hz, 110...120VAC ±10% auxiliary supply @ 50/60Hz and 150kW, 200HP, 380A output.

Physical Information

IP20 panel mount and roof vent kit, frame size 4 in standard SSD livery; 700mm x 253mm x 358mm (HxWxD) /w/ a weight of 32kg.
Rated for operating ambient temperatures between 0°C...+40°C, suitable for a maximum derating @ 55°C; derate linearly at 1%/Δ°C above maximum ambient operating temperature. 1230Wmax of total losses @ full load.
If >500m (1,650ft) above sea level, derate motor power rating by 1%/Δ200m to a maximum of 2,000m (6,561ft).
Suitable for 85%max relative humidity at 40°C non-condensing. Operate in non-flammable, non-corrosive and dust-free atmosphere.
Uses 1 fan(s), rated for 130W @ 110...120VAC and 140W @ 220...240VAC. Cooled by forced vent of 240cfm (410m3/h) @ 200Pa.
Climactic conditions should fall under Class 3k3, as defined by EN60721-3-3 (1995).

Electrical Information

Armature input current of 342A, field current of 30A and a symmetrical fault current of 18kArms
External power semiconductor protection fuse with a 550A rating to suit input bridge @ 240000A2s should be installed to ensure proper operation of the drive.
When isolating the drive from the AC power system, please use a choke with a rating of at least 342A and an inductance of 30µH.

Terminal Information

5x AI (4x conf., used as speed reference setpoints and auxilliary ; variously -10V...0V, 0V...+10V)
3x AQ (2x conf., used for speed feedback, total speed setpoint, and current monitoring; -10V...+10V)
5x DI (All conf., used for current clamp, ramp hold, current demand isolate, jog/take-up slack, and quench; +24VDC)
3x DQ (All conf., used to check for zero speed, drive health and drive readiness; +24VDC)

Note: Analog inputs can be reconfigured as digital inputs for up to 10x DI.

Optional Fittings

This drive is configured to use armature voltage feedback. no communications module fitted module has been installed, /w/ built-in 6901 keypad to facilitate operator interface. Drive is set up for programming in English.

Our Repair Process

Any products sent for repair at AFi Systems come with a 2-year warranty to ensure you can be confident in your product upon its return. We will thoroughly service your 4Q regenerative DC thryristor drive, ensuring it is bench tested and confirmed operational. Any components subject to degradation over time such as fans and electrolytic capacitors will be replaced to ensure a greater lifespan for your drive.

Any Questions?

If you require any assistance or have any questions about whether this 150kW 4 quadrant regenerative DC drive is right for your application and/or environment, be sure to call or email for help. AFi Systems are happy to fulfill your requests, and can ship drives to you quickly.

Compliances

Europe: EN61800-5 : 2003, when fitted inside a cubicle
North America/Canada: UL508C
Overvolage Category: Overvoltage Category III (3-phase supply), Overvoltage Category II (auxiliary supply)
Pollution Degree: Polution Degree 2

590P/0380/500/0041/UK/ARM/0/115/0 Specifications
