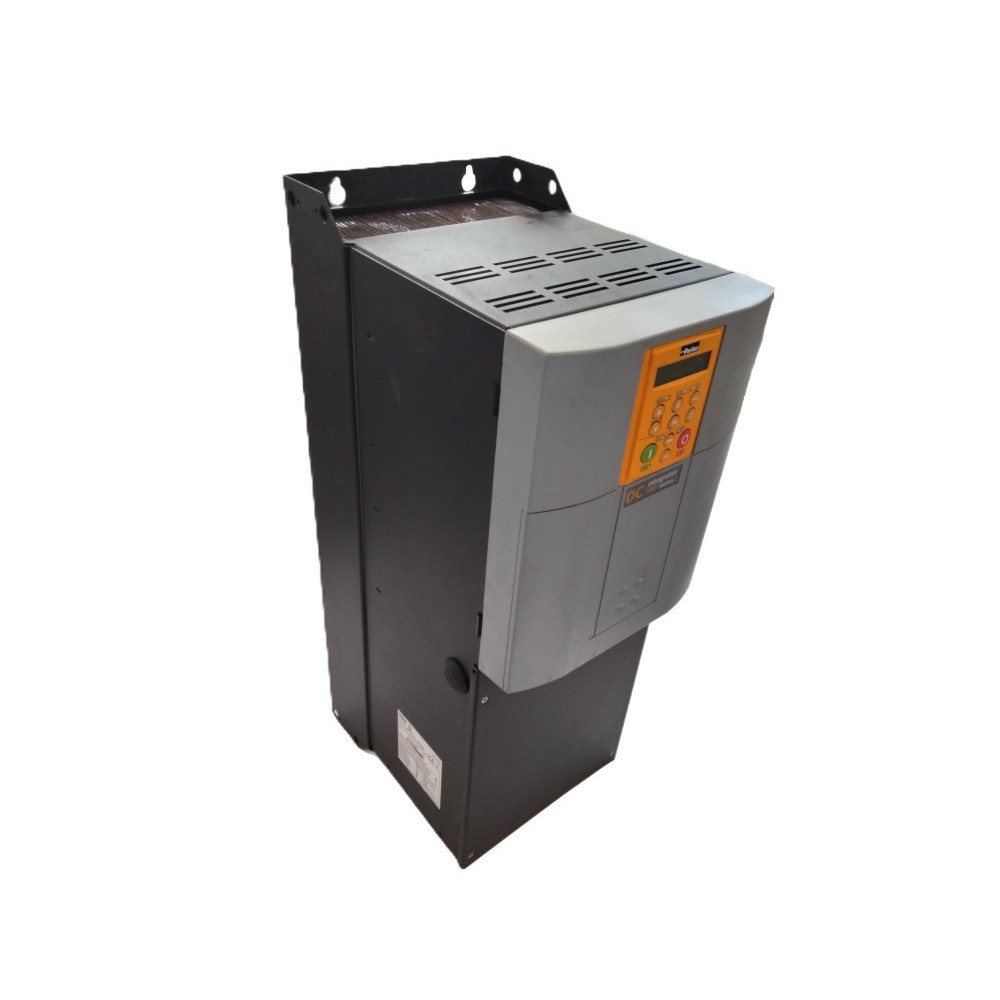

Image shown is a representation only. Actual product may vary -
-
-
-
Parker 590P/0725/500/0011/UK/ARM/0/115/0 DC Drive
590P/0725/500/0011/UK/ARM/0/115/0 4Q DC Thyristor Drive by Parker /w/ 3ph 220...500VAC Supply @ 50/60Hz and 300kW, 400HP, 725A Output.
Terminals Include 5x AI (4x Conf.), 3x AQ (2x Conf.), 10x DI (5x Conf., 2 as Encoder Inputs for Line Encoder) and 3x DQ (3x Conf.).
Rated for 40°C Ambient. Requires 200mm Ventilation Above, 210mm Below and No Side Ventilation. 2265Wmax Heat Loss.
358mm Deep x 253mm Wide x 700mm High /w/ 44kg Weight. Panel Mount /w/ M8 Screw Fixings on 680mm x 150mm Centers.
590P/0725/500/0011/UK/ARM/0/115/0 Specifications
| DC Drive Input Voltage (VAC) | 220...500 |
| DC Drive Output (Amps) | 725 |
| DC Drive Power (KW) | 300 |
| DC Drive Power (HP) | 400 |
| DC Drive Phase Input (Single/Three) | Three |
| DC Drive Control Voltage (VDC) | 115 |
