Image shown is a representation only. Actual product may vary -
-

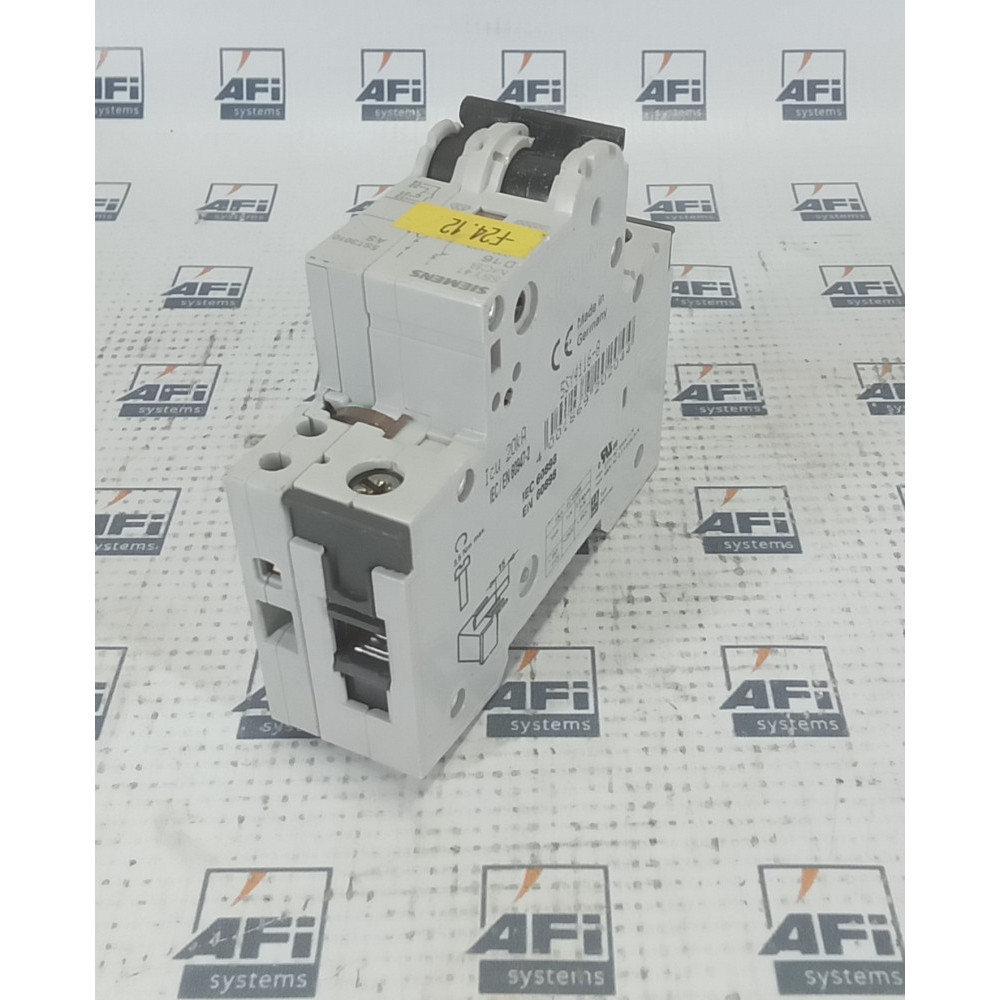

Siemens 5SY41MCB-D16
Current Rating: 16 A.
Voltage Rating: 230 V AC / 400 V AC; also supports up to 72 V DC.
Breaking Capacity: 10 kA and up to 20 kA
Tripping Curve: Type D, which triggers magnetically at 10 to 20 times the rated current.
Mounting: Standard 35 mm DIN rail with a quick assembly system.
Dimensions: 90 mm height, 18 mm width (1 module), and 70 mm installation depth.
Operating Temperature: -40°C to +70°C.
