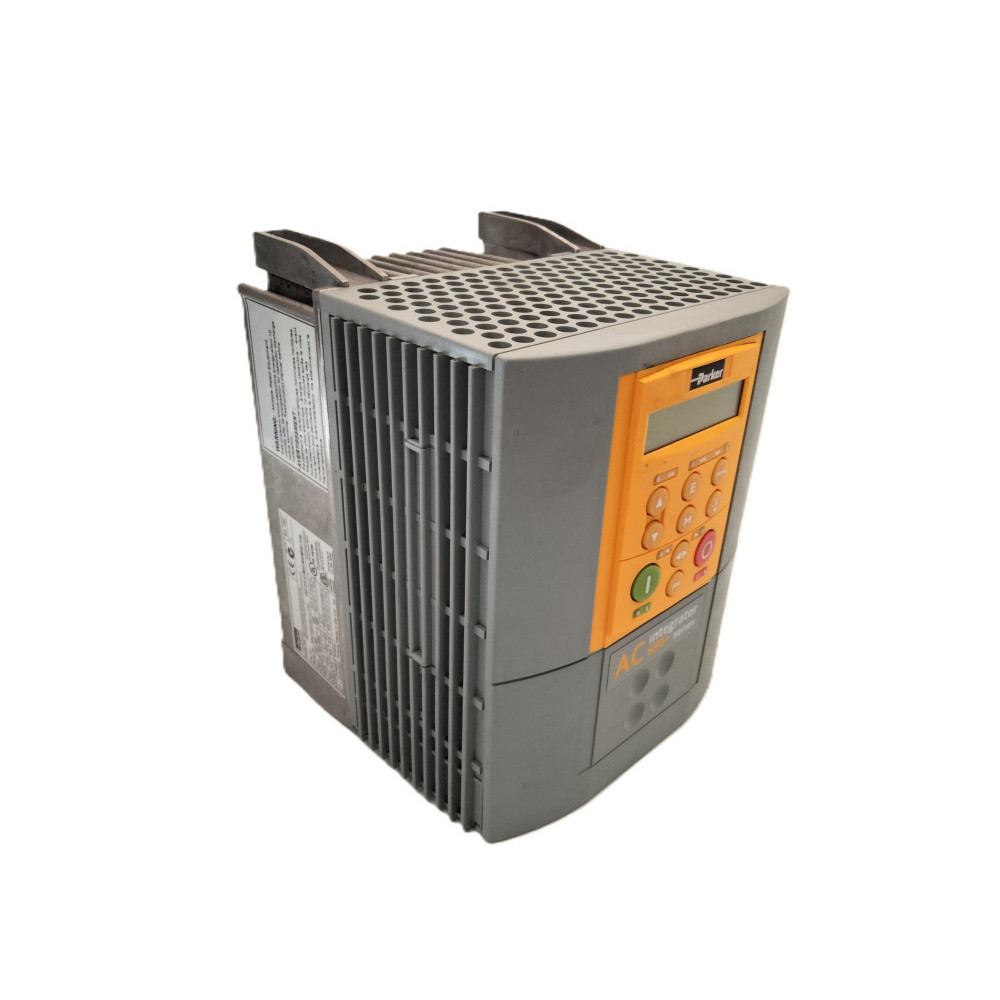

Image shown is a representation only. Actual product may vary -
-
-
-
690PB/0040/400/3/F/0011/UK/0/0/0/0/0 Parker SSD Drives
Refurbished
8 in UK stock
-
$2,352.00
3-5 Days Delivery!
2 Year AFI Warranty!
Secure Checkout!
Eco Friendly Option!
AFi Inventory Options
Click below to highlight option.
3-5 Days Delivery!
2 Year AFI Warranty!
Secure Checkout!
Eco Friendly Option!
Parker 690-431950B0-BF0P00-A400 690+ Series AC Drive
690-431950B0-BF0P00-A400 690+ Series AC Drive by Parker (Legacy Pn. 690PB/0040/400/3/F/0011/UK/0/0/0/0/0) /w/ 3ph 380...460VAC Input ±10% @ 50/60Hz and 3kW, 4HP, 9.5A Output.
Terminals Include 4x AI, 3x AQ, 8x DI, 3x DQ (Relay Contacts).
Overload @ 150% for 60s; 0/120Hz Default Speed Control Range, Optional 0/240Hz and 0/480Hz; 100% Duty Braking into 100Ωmin Resistor.
VxF Sensorless Flux Vector, or Full Closed Loop Vector Control when Optional Encoder Board is Fitted.
12.6A Input Current, 16A Fuse to Suit Input Bridge @ 340A2s.
Wall Mount in Clean Environment/Cubicle Mount. Rated for 40°C Ambient, 80mm Ventilation Above and Below, 15mm Side Ventilation. 200Wmax Heat Loss.
Frame Size B: 177mm Wide x 181mm Deep x 233mm High /w/ 4.3kg Weight. Mounting via M4 Screws Fixings on 129.5mm x 223mm Centers.
690PB/0040/400/3/F/0011/UK/0/0/0/0/0 Specifications
| AC Drive Input Voltage (VAC) | 380...460 |
| AC Drive Heavy Duty Output (HP) | 4 |
| AC Drive Heavy Duty Output (Amps) | 9.5 |
| AC Drive Heavy Duty Output (kw) | 3 |
| AC Drive Phase | Three |
| AC Drive Protection | IP20 |
| AC Drive Keypad | Yes |
| AC Drive Nr Digital Inputs | 8 |
| AC Drive Nr Analog Inputs | 4 |
| AC Drive Nr Digital Outputs | 3 |
| AC Drive Nr Analog Outputs | 3 |
| AC Drive Nr Relay Outputs | 3 |
| AC Drive Height (mm) | 233 |
| AC Drive Depth (mm) | 181 |
| AC Drive Width (mm) | 177 |
| AC Drive Weight (kg) | 4.3 |
