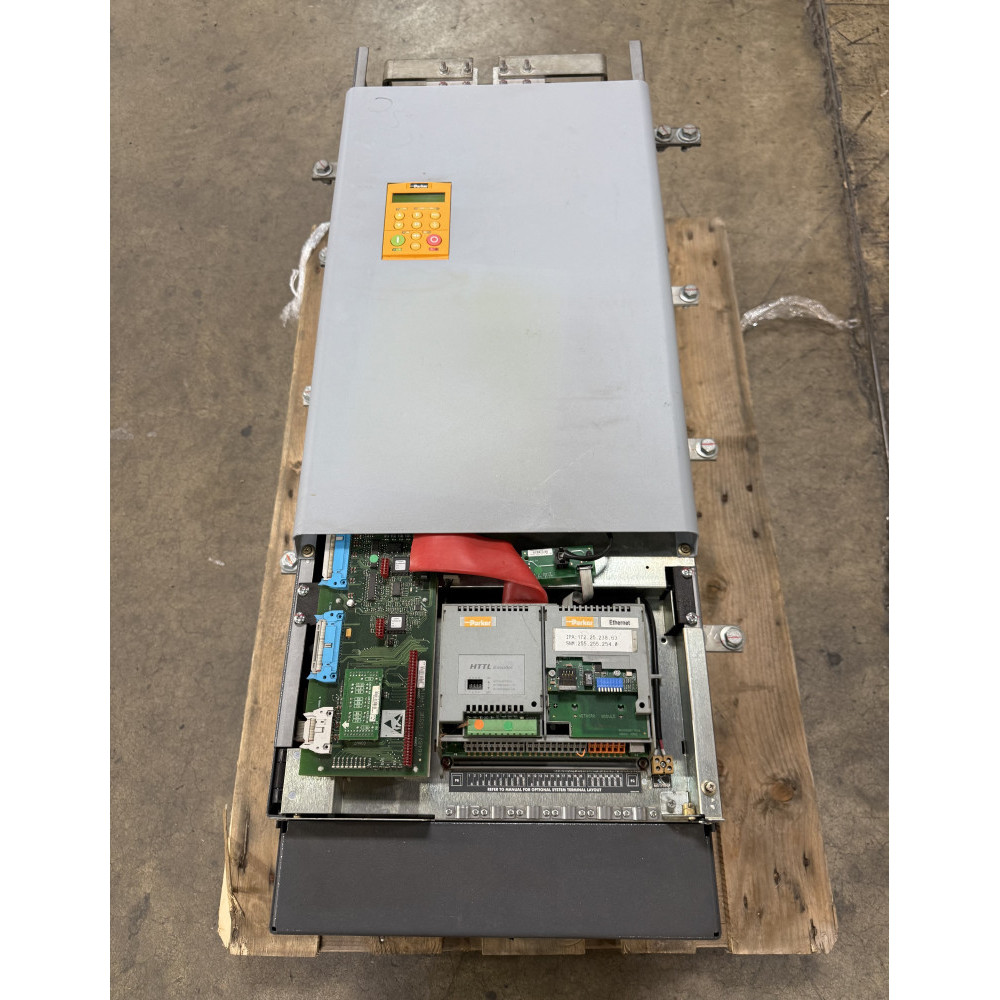

Image shown is a representation only. Actual product may vary -
-
-
-
Parker AC Drive
690+0200/460/CBN (Legacy Part No. 690PG/1320/460/0011/US/0/0/0/0/B0/115/0) 690+ Integrator Series AC Drive by Parker /w/ 3ph 380...460VAC Input ±10% @ 50/60Hz and 132kW, 200HP, 250A Output.
Terminals Include 4x AI (0-10V, 0-±10V, 0-20mA, 4-20mA), 3x AQ (0-10V, 0-±10V, 0-20mA, 4-20mA), 7x DI (24VDC, 30VDCmax), 3x DQ (Relay Contacts; 3A @ 230VAC).
Open/Closed Loop Sensorless Vector Control. Fieldbus over Profibus-DP, DeviceNet, CANbus, Ethernet and Modbus RTU can be Installed.
IP20 Chassis Enclosure /w/ Braking Resistor; No Filter Included. Rated for 0-45°C /w/ 1% Derate per °C Above (50°Cmax) and 1000m Altitude /w/ 1% Derate per 100m Above (2000mmax).
Frame Size G: 465mm Deep x 455mm Wide x 1042mm High /w/ 100kg Weight.
690+0200/460/CBN Specifications
| AC Drive Input Voltage (VAC) | 380...460 |
| AC Drive Heavy Duty Output (HP) | 200 |
| AC Drive Heavy Duty Output (Amps) | 250 |
| AC Drive Heavy Duty Output (kw) | 132 |
| AC Drive Normal Duty Output (HP) | 250 |
| AC Drive Normal Duty Output (Amps) | 302 |
| AC Drive Normal Duty Output (kw) | 150 |
| AC Drive Phase | Three |
| AC Drive Protection | IP20 |
| AC Drive Keypad | Yes |
| AC Drive Filter | None |
| AC Drive Loop | Open/Closed |
| AC Drive Nr Digital Inputs | 7 |
| AC Drive Nr Analog Inputs | 4 |
| AC Drive Nr Digital Outputs | 3 |
| AC Drive Nr Analog Outputs | 3 |
| AC Drive Nr Relay Outputs | 3 |
| AC Drive Height (mm) | 1042 |
| AC Drive Depth (mm) | 465 |
| AC Drive Width (mm) | 455 |
| AC Drive Weight (kg) | 100 |
