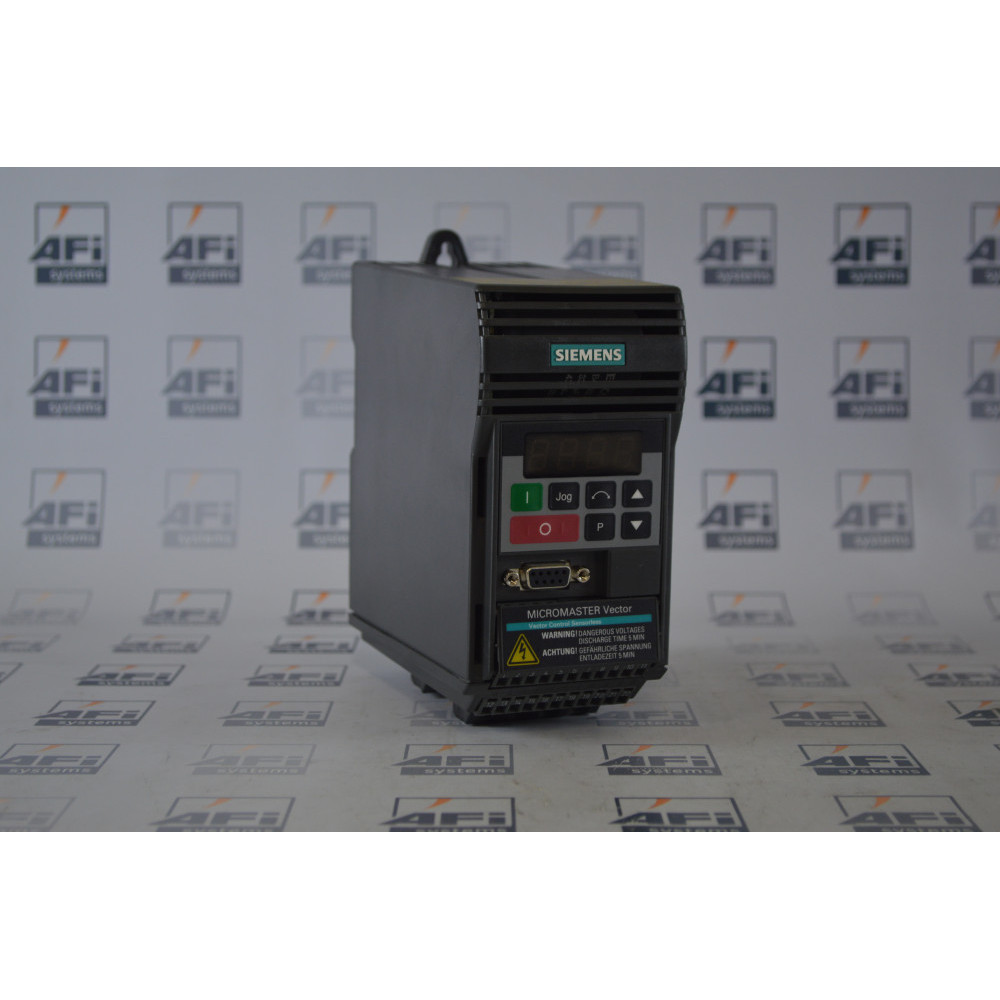

Siemens 6SE3211-4DA40 AC Inverter Drive
The Siemens 6SE3211-4DA40 is a 3 phase, 0.55kW, 1.6 amp AC inverter drive from the MicroMaster Vector series.
AFi Systems are able to both supply and repair this drive and also other drives from the MicroMaster range.
In a breakdown situation we know that speed is key, so if your requirement is urgent give us a call for the fastest possible delivery.
All parts are supplied with our standard 2 year warranty.
6SE3211-4DA40 Specifications
| Input Voltage (VAC) | 380...480 |
| Heavy Duty Power Output (kW) | 0.55 |
| Heavy Duty Output Current (A) | 1.5 |
| Input Phase | Three |
| Ingress Protection Rating | IP20 |
| NEMA Rating | NEMA 1 |
| EMC Filter | No Filter |
| Drive Keypad | Yes |
| Drive Loop | Open, Closed |
| Drive Communications | USS Protocol |
| No. of Digital Inputs | 6 |
| No. of Analog Inputs | 2 |
| No. of Analog Outputs | 2 |
| No. of Relay Outputs | 2 |
| Height (mm) | 73 |
| Width (mm) | 147 |
| Depth (mm) | 141 |
