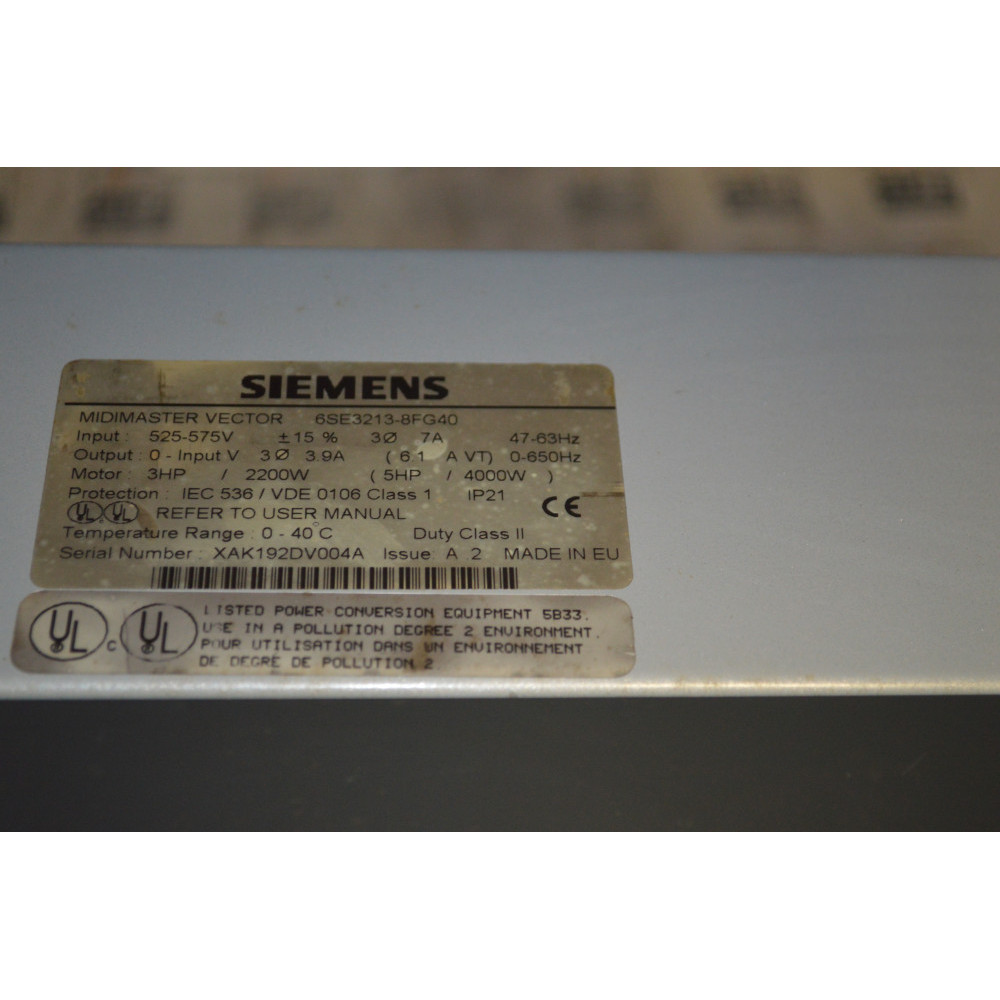

Image shown is a representation only. Actual product may vary -
-
-
-
Siemens 6SE3213-8FG40 MIDIMASTER Series VFD
Siemens 6SE3213-8FG40 MIDIMASTER Series VFD /w/ 3ph 500...575VAC Input, 4kW, 5.5HP, 7A Output.
6SE3213-8FG40 Specifications
| Input Voltage (VAC) | 500...575 |
| Heavy Duty Power Output (kW) | 2.2 |
| Heavy Duty Power Output (HP) | 3 |
| Heavy Duty Output Current (A) | 3.9 |
| Normal Duty Power Output (kW) | 4 |
| Normal Duty Power Output (HP) | 5.5 |
| Normal Duty Output Current (A) | 7 |
| Input Phase | Three |
| Ingress Protection Rating | IP21 |
| NEMA Rating | 1 |
| EMC Filter | None |
| Drive Keypad | Yes |
| Drive Loop | Open, Closed |
| Drive Communications | USS Protocol |
| No. of Digital Inputs | 6 |
| No. of Analog Inputs | 2 |
| No. of Analog Outputs | 2 |
| No. of Relay Outputs | 2 |
| Height (mm) | 450 |
| Width (mm) | 275 |
| Depth (mm) | 210 |
| Weight (kg) | 11 |
