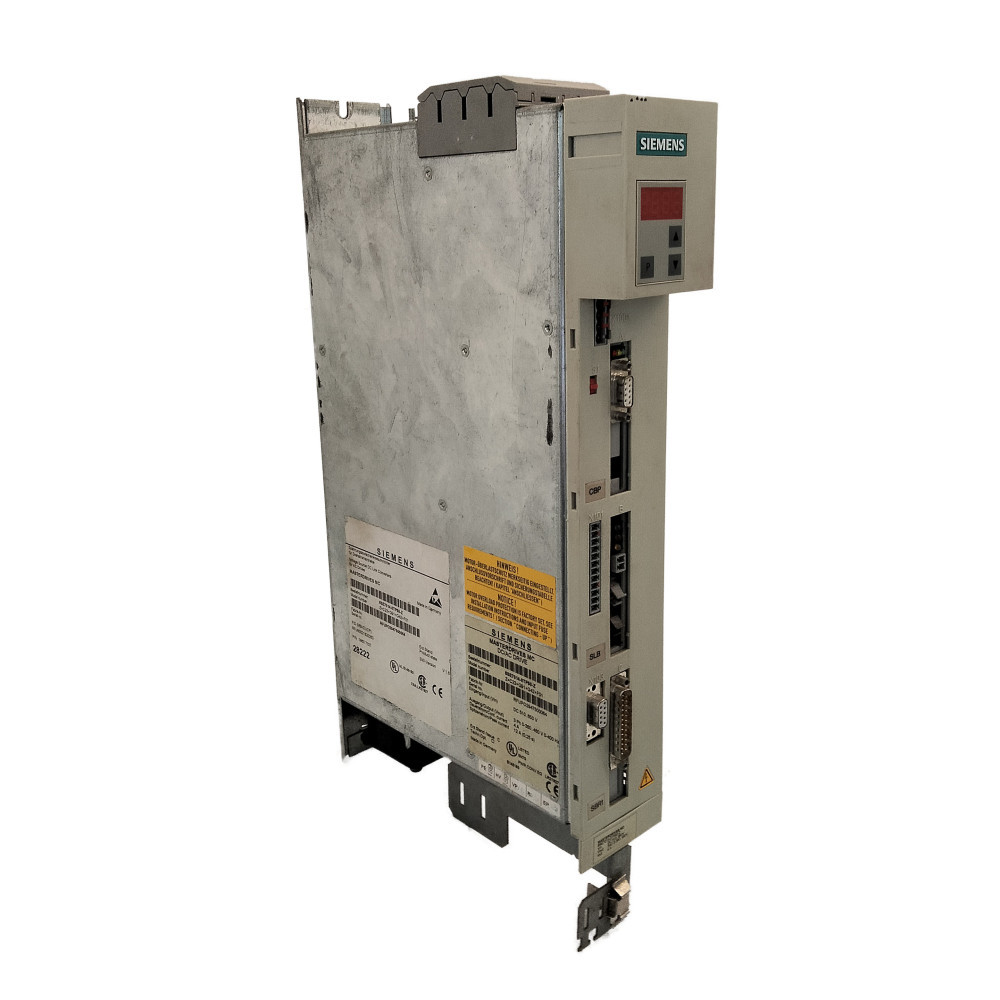

Siemens 6SE7014-0TP50-Z 1.5kW 4A SIMOVERT MasterDrive /w/ C23+G91+G42+F01 Z-Options
The 6SE7014-0TP50-Z (Z-options: C23+G91+G42+F01) by Siemens, part of the SIMOVERT MasterDrive subseries, is an inverter converting a 510...650VDC input supply into 3ph 380...480VAC @ 0-400Hz, /w/ 1.5kW, 2HP power output, a continuous current output of 4A and a 12A peak current output.
Rated for operation between 0°C...+45°C at 95%max relative humidity, non-condensing. Install no greater than 1000m above sea-level.
Compact PLUS type unit; 360mm x 68mm x 260mm (HxWxD), net weight of 3.4kg.
Note: Z-Options can be installed or removed at customer request. Please contact us for more information and a custom quote.
6SE7014-0TP50-Z C23+G91+G42+F01 Specifications
| Input Voltage (V) | 510...650 DC |
| Power Output (kW) | 1.5 |
| Power Output (HP) | 2 |
| Continuous Current Output (A) | 4 |
| Peak Current Output (A) | 12 |
