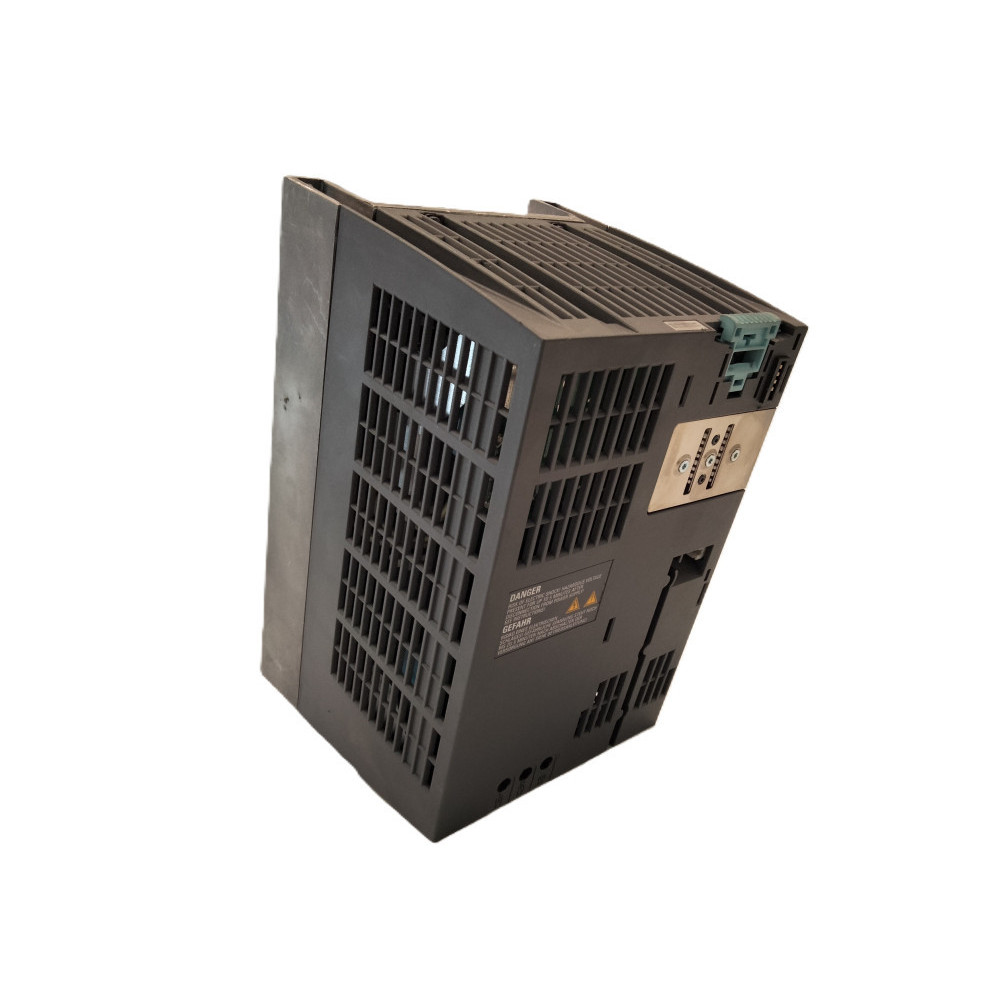

Image shown is a representation only. Actual product may vary -
-
-
-
Siemens 6SL3224-0BE22-2UA0 PM240 Power Module
6SL3224-0BE22-2UA0 SINAMICS PM240 Power Module by Siemens /w/ 3ph 380...480VAC Input ±10% @ 50/60Hz ±5% and 2.2A, 3kW, 5.9A Output. For Use /w/ a Compatible SINAMICS G120 Series Modular Control Unit.
Input Current of 8.8A for High Overload; 10.9A when Fan/Pump Rated; No EMC Filter; For Use /w/ 140Ωmin External Braking Resistor.
Rated for 50°C at High Overload; 40°C when Fan/Pump Rated. Requires 100mm Ventilation Space in Front, 80mm Above and 100mm Below. 120Wmax Heat Loss.
IP20 Rated, Wall Mounted Enclosure, Frame Size B; 165mm Deep x 153mm Wide x 270mm High /w 4.3kg Weight.
6SL3224-0BE22-2UA0 Specifications
| AC Drive Input Voltage (VAC) | 380...480 |
| AC Drive Heavy Duty Output (HP) | 3 |
| AC Drive Heavy Duty Output (Amps) | 5.9 |
| AC Drive Heavy Duty Output (kw) | 2.2 |
| AC Drive Normal Duty Output (HP) | 4 |
| AC Drive Normal Duty Output (Amps) | 7.7 |
| AC Drive Normal Duty Output (kw) | 3 |
| AC Drive Phase | Three |
| AC Drive Protection | IP20 |
| AC Drive Filter | None |
| AC Drive Height (mm) | 270 |
| AC Drive Depth (mm) | 165 |
| AC Drive Width (mm) | 153 |
| AC Drive Weight (kg) | 4.3 |
