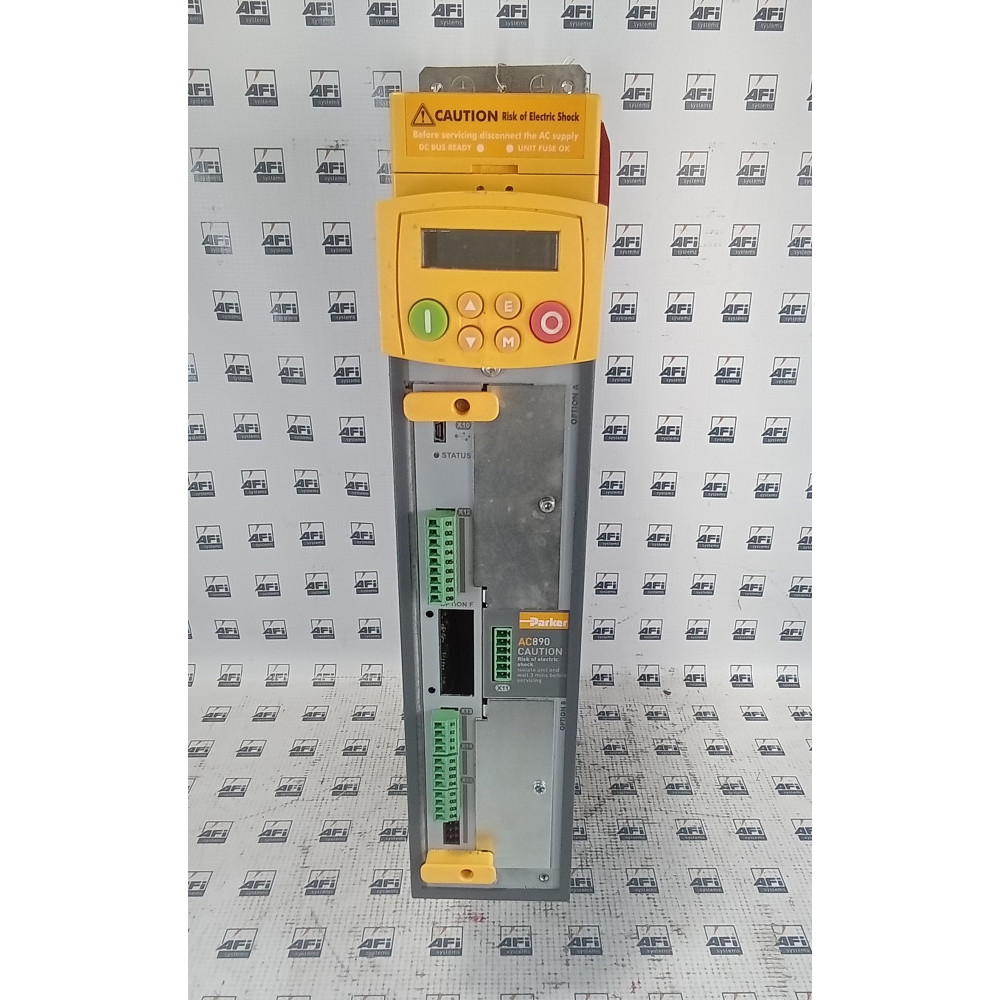

Parker 890CD Series 890CD/5/0012B/N/00/H/US AC Drive
890CD/5/0012B/N/00/H/US/00/00/00/00/00 890CD Series AC Drive by Parker /w/ 3ph 400...500VAC Input and 5.5kW, 7.5HP, 12A Output.
890CD/5/0012B/N/00/H/US Specifications
| Input Voltage (VAC) | 400...500 |
| Heavy Duty Power Output (kW) | 5.5 |
| Heavy Duty Power Output (HP) | 7.5 |
| Heavy Duty Output Current (A) | 12 |
| Input Phase | Three |
| Ingress Protection Rating | IP20 |
| EMC Filter | Industrial |
| Drive Keypad | Yes |
| Drive Loop | Closed |
| No. of Digital Inputs | 7 |
| No. of Analog Inputs | 4 |
| No. of Analog Outputs | 2 |
| No. of Digital Outputs | 2 |
| No. of Relay Outputs | 1 |
| Height (mm) | 433.6 |
| Width (mm) | 72.4 |
| Depth (mm) | 258.5 |
| Weight (kg) | 5 |
