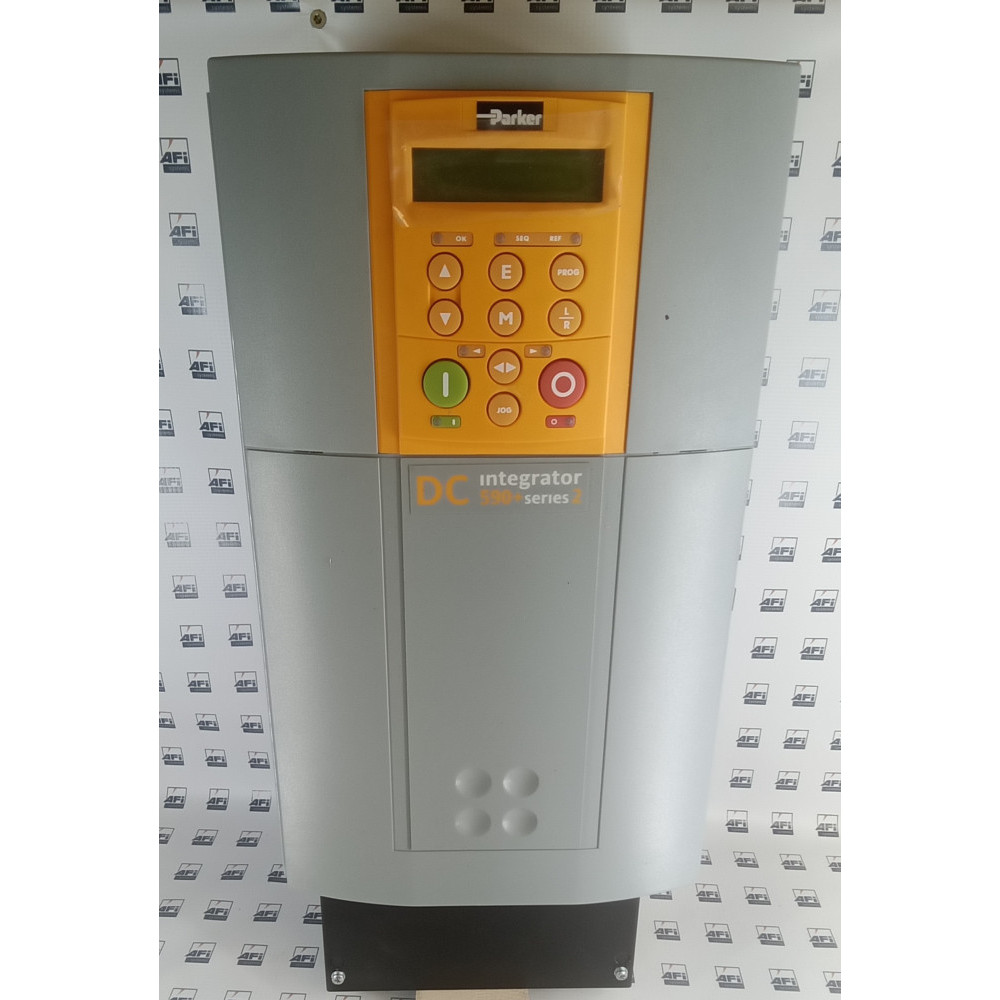

Parker SSD Drive 955+8R0050/083
Parker 955+8R0050/083 DC Drive with 3ph VAC Input and 575VDC, 37kW, 50HP, 90A Output. Has 4x Analog Inputs, 3x Analog Outputs, 10x Digital Inputs and 3x Digital Outputs.
955+8R0050/083 Specifications
| DC Drive Input Voltage (VAC) | 380...460 |
| DC Drive Output (Amps) | 90 |
| DC Drive Power (KW) | 37 |
| DC Drive Power (HP) | 50 |
| DC Drive Phase Input (Single/Three) | Three |
| DC Drive Control Voltage (VDC) | 115 |
