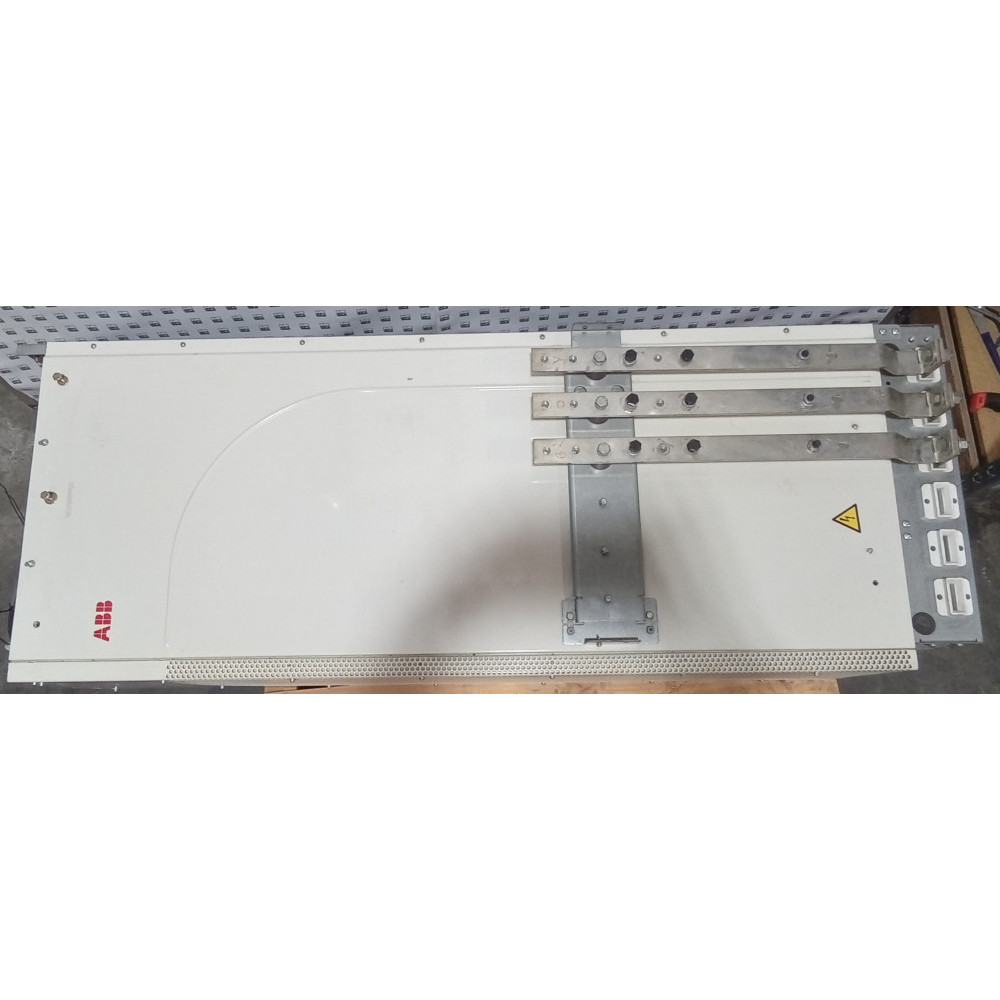

• ABB ACS800-U4-0490-5 AC Drive
    Image shown is a representation only. Actual product may vary
  • ABB ACS800-U4-0490-5 AC Drive
  • ABB ACS800-U4-0490-5 AC Drive
  • ABB ACS800-U4-0490-5 AC Drive
  • ABB ACS800-U4-0490-5 AC Drive

ACS800-U4-0490-5 ABB

Refurbished

only 1 in stock

  • $28,500.00

Fast Delivery!

2 Year AFI Warranty!

Secure Checkout!

Eco Friendly Option!

AFi Inventory Options

Click below to highlight option.

Fast Delivery!

2 Year AFI Warranty!

Secure Checkout!

Eco Friendly Option!

0 reviews / Write a review

ABB ACS800-U4-0490-5 AC Drive

ABB ACS800-U4-0490-5 ACS800 Series AC Drive /w/ 3ph 380...500VAC Input ±10% @ 50/60Hz and 400kW, 540HP, 590A Output.

Terminals Include 2x AI (±15VDC, 0mA / 4mA...20mA), 2x AQ, 6x DI (24VDC -15%...+20%) and 3x Relay Outputs (Switching Capacity: 8A @ 24VDC/250VAC, 0.4A @ 120VDC).

630A Fuse to Suit Input Bridge Rated @ 4,000,000A2s. 8100Wmax Heat Dissipation /w/ 1220m3h-1 Air Flow.

Frame Size R8: 1564mm High, 415mm Wide, 568mm Deep /w/ 200kg Weight. Expected Noise Output of 72Db.

ACS800-U4-0490-5 Specifications

AC Drive Input Voltage (VAC) 380...500
AC Drive Heavy Duty Output (HP) 475
AC Drive Heavy Duty Output (Amps) 515
AC Drive Heavy Duty Output (kw) 355
AC Drive Normal Duty Output (HP) 540
AC Drive Normal Duty Output (Amps) 590
AC Drive Normal Duty Output (kw) 400
AC Drive Phase Three
AC Drive Protection IP00
AC Drive NEMA Rating Open
AC Drive Nr Digital Inputs 6
AC Drive Nr Analog Inputs 2
AC Drive Nr Analog Outputs 2
AC Drive Nr Relay Outputs 3
