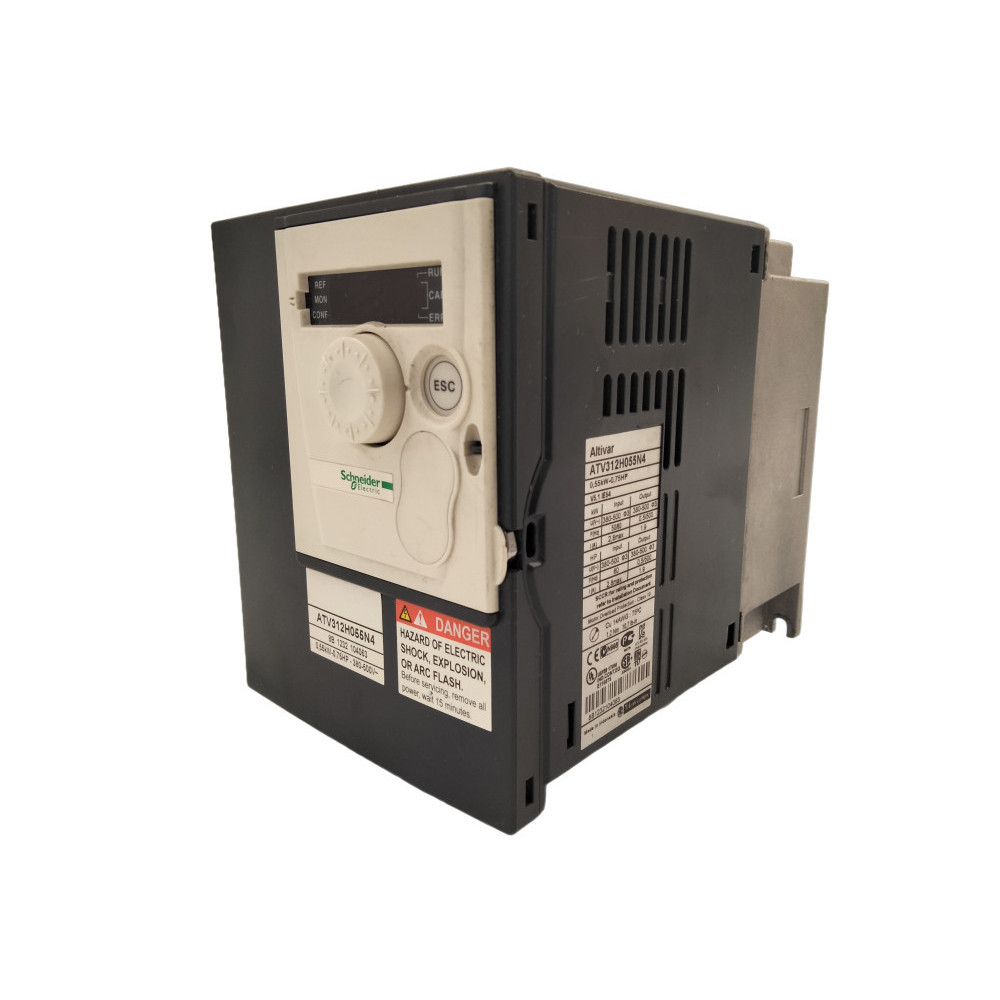

Image shown is a representation only. Actual product may vary -
-
-
Schneider Electric ATV312H055N4 Altivar 312 0.55kW Inverter
ATV312H055N4 Altivar 312 Inverter by Schneider Electric /w/ 3ph 380...500VAC supply and 0.55kW, 0.75HP, 1.9A output.
Terminals include: 3x AI, 1x AQ, 6x DI, 2x DQ. 107mm wide x 143mm high x 152mm deep /w/ 1.8kg weight.
ATV312H055N4 Specifications
| Input Voltage (VAC) | 380...500 |
| Heavy Duty Power Output (kW) | 0.55 |
| Heavy Duty Power Output (HP) | 0.75 |
| Heavy Duty Output Current (A) | 1.9 |
| Input Phase | Three |
| Ingress Protection Rating | IP20 |
| EMC Filter | Industrial |
| Drive Loop | Open |
| Drive Logic | Positive, Negative |
| Drive Communications | Modbus, CANopen |
| No. of Digital Inputs | 6 |
| No. of Analog Inputs | 3 |
| No. of Analog Outputs | 1 |
| No. of Relay Outputs | 2 |
