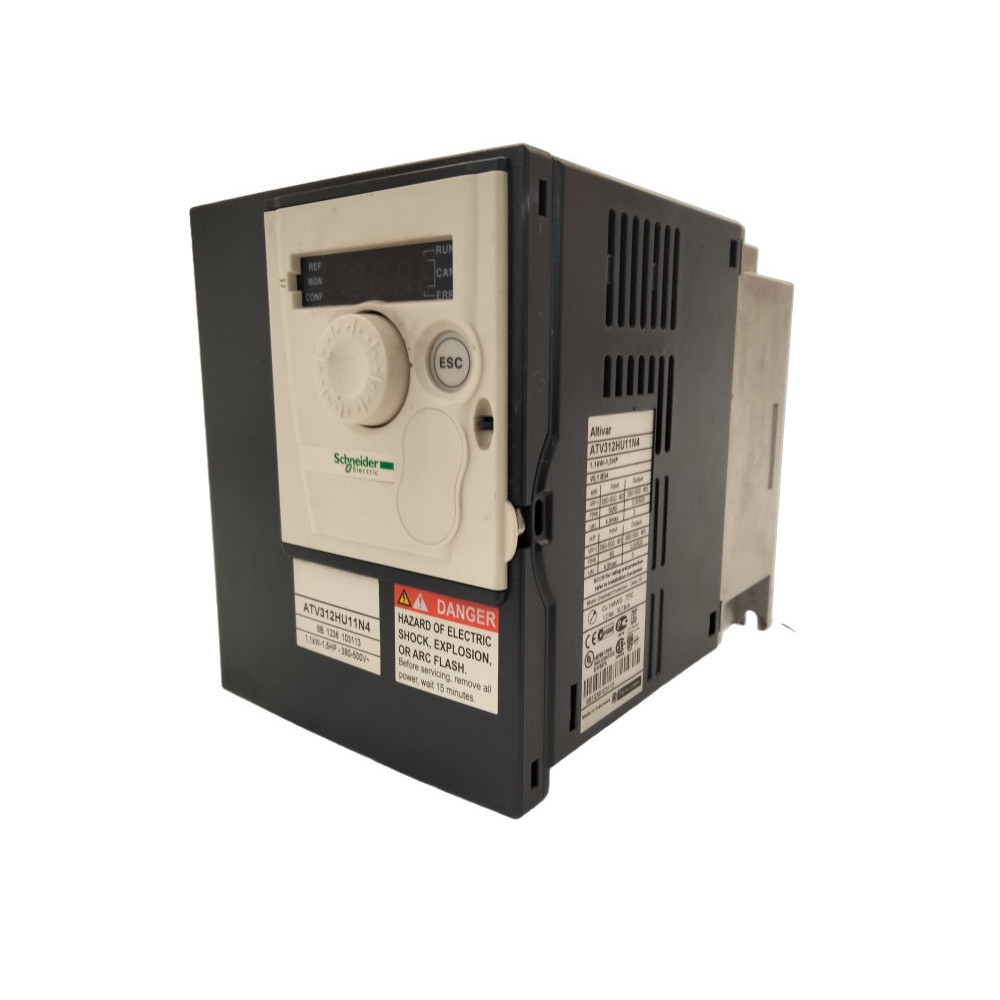

Schneider Electric ATV312HU11N4 Altivar 312 1.1kW Inverter
ATV312HU11N4 Altivar 312 Inverter by Schneider Electric /w/ 3ph 380...500VAC supply and 1.1kW, 1.5HP, 3A output.
Terminals include: 3x AI, 1x AQ, 6x DI, 2x DQ. 107mm wide x 143mm high x 152mm deep /w/ 1.8kg weight.
ATV312HU11N4 Specifications
| Input Voltage (VAC) | 380...500 |
| Heavy Duty Power Output (kW) | 1.1 |
| Heavy Duty Power Output (HP) | 1.5 |
| Heavy Duty Output Current (A) | 3 |
| Input Phase | Three |
| Ingress Protection Rating | IP20 |
| EMC Filter | Industrial |
| Drive Loop | Open |
| Drive Logic | Positive, Negative |
| Drive Communications | Modbus, CANopen |
| No. of Digital Inputs | 6 |
| No. of Analog Inputs | 3 |
| No. of Analog Outputs | 1 |
| No. of Relay Outputs | 2 |
