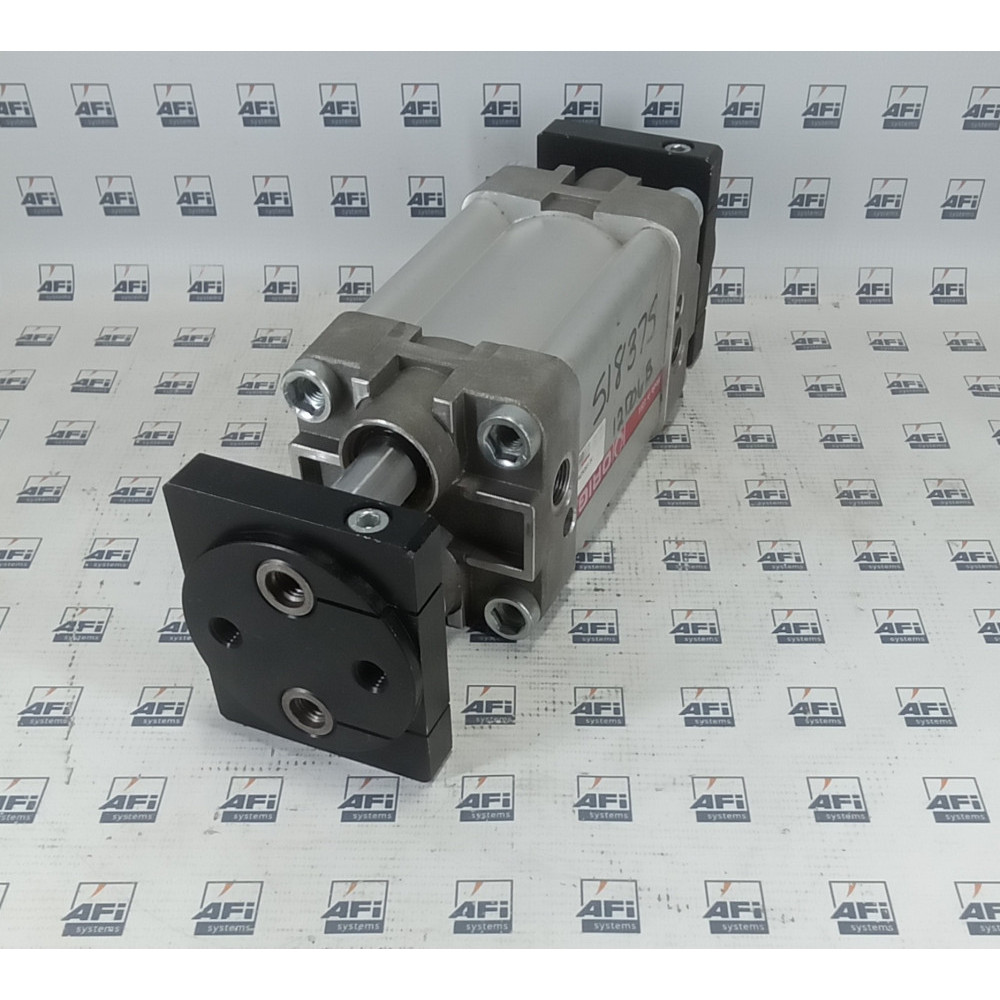

Hoerbiger Origa AZV Series pneumatic cylinder AZV4D5080/50
Series: AZV (Non-rotating, twin rod, double-acting, with cushioning) Piston Diameter (Bore): 80 mm Stroke Length: 50 mm Maximum Operating Pressure: 10 bar (145 psi) Operating Temperature Range: -20°C to +80°C (-5°F to +176°F) Pneumatic Connection Port Size: G3/8 (for 80mm bore cylinders) Piston Rod Diameter: 25 mm (for the 80mm bore AZV series) Operation: Double acting with self-adjusting or adjustable cushioning at both ends Construction Materials: Anodized aluminum barrel, die-cast aluminum end caps, and high-alloy steel piston rod
