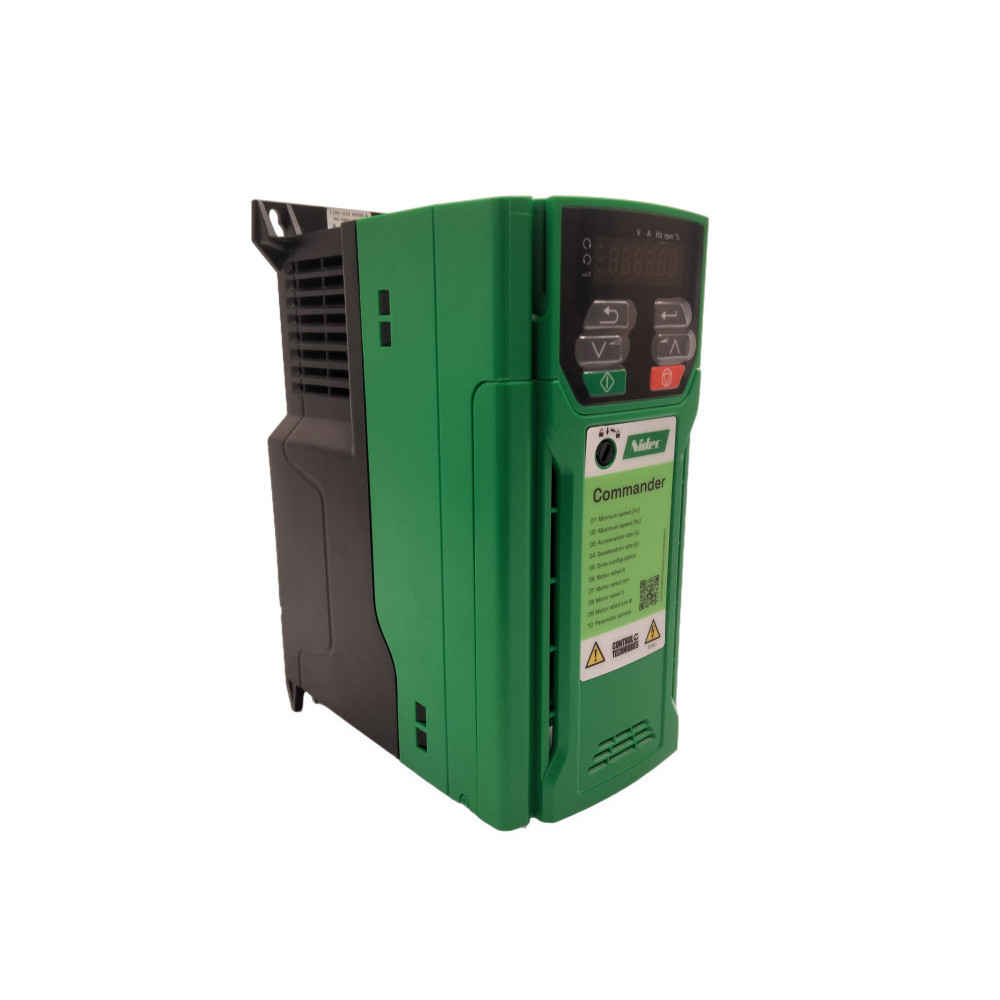

Commander C200 Series 4kW Variable Speed Drive, 3 Phase, 400V, 9.4A, 380/480V AC
Control Techniques C200-034 00094 A Commander C200 Series 4kW Variable Speed Drive, 3 Phase, 400V, 9.4A, 380/480V AC
C200-034 00094 A Specifications
| Drive Application | General Purpose |
| Input Voltage (VAC) | 380...480V AC |
| Heavy Duty Power Output (kW) | 4 |
| Heavy Duty Output Current (A) | 9.4 |
| Normal Duty Power Output (kW) | 4 |
| Normal Duty Output Current (A) | 9.4 |
| Input Phase | Three Phase |
| Ingress Protection Rating | IP20 |
| NEMA Rating | Nema 1 |
| EMC Filter | Industrial |
| Drive Keypad | Yes |
| Drive Loop | Open |
| Drive Logic | Positive |
| No. of Digital Inputs | 4 |
| No. of Analog Inputs | 2 |
| No. of Analog Outputs | 1 |
| No. of Relay Outputs | 1 |
| Bidirectional I/O | 1 |
| Safe Torque Off | No |
| Height (mm) | 200 |
| Width (mm) | 90 |
| Depth (mm) | 160 |
