CPE18-M1H-5/3G-1/4 Festo

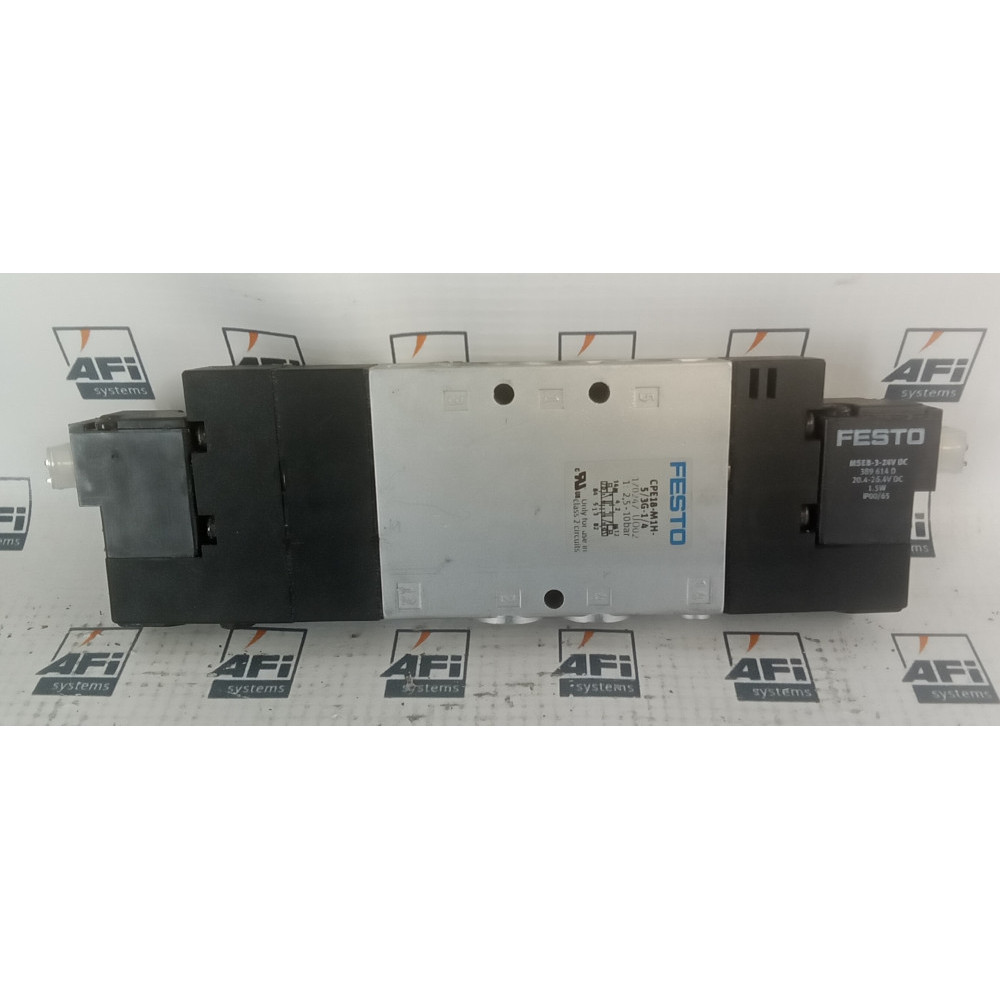

Festo CPE18-M1H-5/3G-1/4 Solenoid Valve

Festo Solenoid Valve

• Valve function 5/3 closed
• Type of actuation Electric
• Construction width 18 mm
• Standard nominal flow rate (standardised to DIN 1343)1450 l/min
• pneumatic working port G1/4
• Operating voltage 24V DC
• Operating pressure 0.25 MPa ... 1 MPa
• Operating pressure 2.5 bar ... 10 bar
• Design Piston gate valve
• Type of reset Mechanical spring
• Approval c UL us - Recognized (OL)
• Degree of protection IP65 With plug socket To IEC 60529
• Nominal size 8 mm
• Exhaust-air function With flow control option
• Sealing principle Soft
• Mounting position optional
• Manual override Detenting via accessory Non-detenting
• Type of piloting Pilot actuated
• Pilot air supply Internal
• Flow direction Non-reversible
• Symbol 00991033
• Valve position code Inscription label holder
• lap Overlap
• Switching time off 38 ms
• Switching time on 20 ms
• Duty cycle100%
• Max. positive test pulse with 0 signal 3300 µs
• Max. negative test pulse with 1 signal 3100 µs
• Characteristic coil data 24 V DC: 1.5 W
• Permissible voltage fluctuations -15%/+10%
• Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
• Note on operating and pilot medium Lubricated operation possible (in which case lubricated operation will always be required)
• Vibration resistance Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
• Shock resistance Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27
• Corrosion resistance class CRC2 - Moderate corrosion stress
• LABS (PWIS) conformity VDMA24364-B1/B2-L
• Media temperature -5 °C ... 50 °C
• Ambient temperature -5 °C ... 50 °C
• Product weight 280 g
• Electrical connection Type C
• Type of mounting With through-hole
• Pilot exhaust port 82 M5
• Pilot exhaust port 84 M5
• Pilot air port 12 M5
• Pilot air port 14 M5
• Pneumatic connection, port 1 G1/4
• Pneumatic connection, port 2 G1/4
• Pneumatic connection, port 3 G1/4
• Pneumatic connection, port 4 G1/4
• Pneumatic connection, port 5 G1/4
• Note on materials RoHS-compliant
• Material seals NBR
• Material housing Die-cast aluminium
