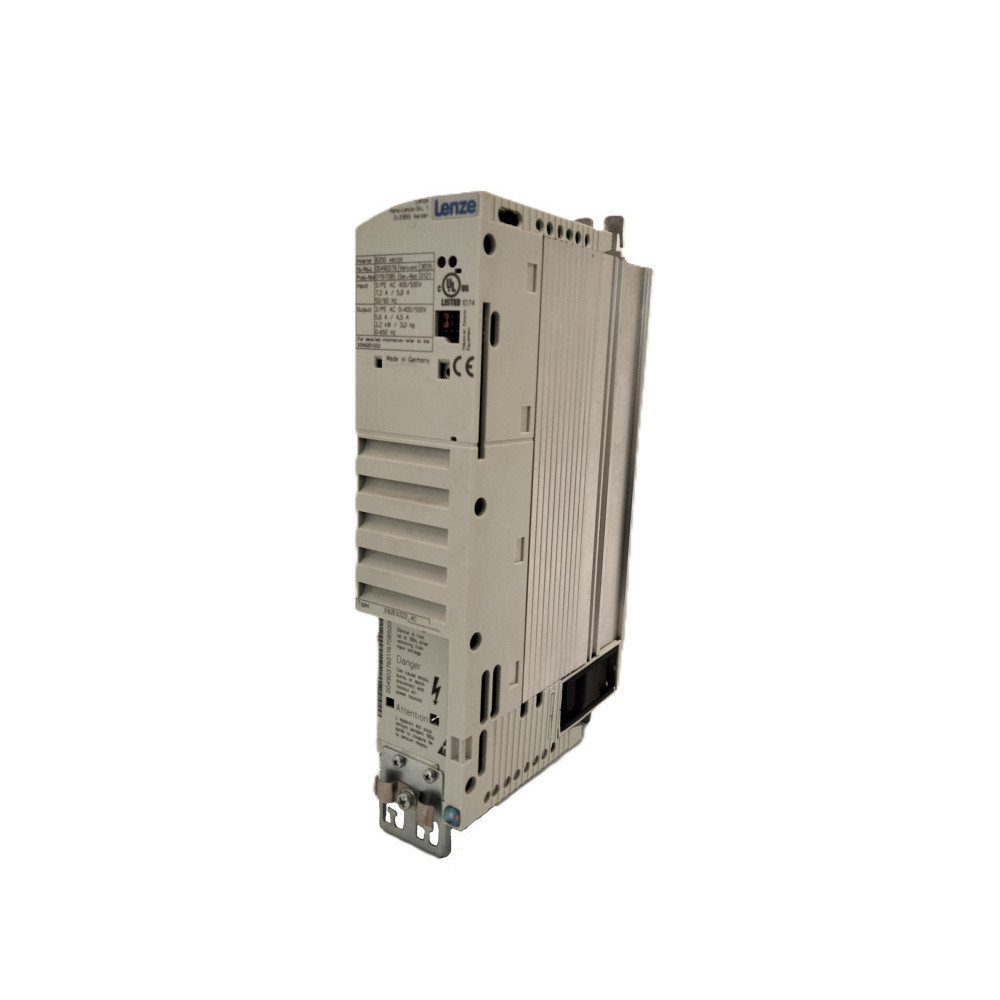

Image shown is a representation only. Actual product may vary -
-
-
-
Lenze E82EV222K4C 2.2kW 8200 Vector Drive
The E82EV222K4C, part of the 8200 Vector line, manufactured by Lenze, is a 2.2kW, 3.0HP, 5.6A VSD /w/ Three Phase 380-480V AC input. With years of experience working on Lenze products, AFi Systems are fully prepared to repair and supply the full line of 8200 Vector variable speed drives.
General Information
Terminals include: 1x AI, 1x AQ, 5x DI, 1x DQ and 1x relay output(s).
Features a IP20, NEMA 1 rated enclosure, 333mm high x 60mm wide x 140mm deep /w/ 1.6kg weight.
Bus Function Modules
The 8200 Vector range supports a variety of possible bus function modules, listed below:
- PROFIBUS-DP (E82ZAFPC010)
- PROFIBUS I/O (E82ZAFPC201)
- System Bus CAN PT (E82ZAFCC010)
- System Bus CAN I/O PT (E82ZAFCC210)
- System Bus CAN I/O RS PT (E82ZAFCC100)
- CANopen PT (E82ZAFUC010)
- DeviceNet PT (E82ZAFVC010)
- INTERBUS PT (E82ZAFIC010)
- LECOM-B PT (E82ZAFLC010)
- AS Interface PT (E82ZAFFC010)
Communications Modules
In addition to the above bus function modules, the 8200 Vector line also supports several communications modules, listed below:
- PROFIBUS-DP (EMF2133IB)
- System Bus CAN (EMF2171IB, EMF2172IB)
- CANopen (EMF2178IB)
- DeviceNet (EMF2179IB)
- INTERBUS (EMF2113IB)
- LECOM-A (EMF2102IBCV004)
- LECOM-B (EMF2102IBCV002)
- LECOM-A/B (EMF2102IBCV001)
- LECOM-LI (EMF2102IBCV003)
Our Repair Process
Any products sent for repair at AFi Systems come with a 2-year warranty to ensure you can be confident in your product upon its return. We will thoroughly service your 8200 Vector VSD, ensuring it is bench tested and confirmed operational. Any components subject to degradation over time such as fans and electrolytic capacitors will be replaced to ensure a greater lifespan for your variable frequency drive.
Any Questions?
If you require any assistance or have any questions about whether this 2.2kW 8200 Vector VFD is right for your application and/or environment, be sure to call or email for help. AFi Systems are happy to fulfill your 8200 Vector requests, and can ship drives to you quickly.
E82EV222K4C Specifications
| Drive Application | HVAC Fan & Pump |
| Input Voltage (VAC) | 380...480 |
| Heavy Duty Power Output (kW) | 2.2 |
| Heavy Duty Power Output (HP) | 3 |
| Heavy Duty Output Current (A) | 5.6 |
| Normal Duty Power Output (kW) | 3 |
| Normal Duty Power Output (HP) | 4.0 |
| Normal Duty Output Current (A) | 6.7 |
| Input Phase | Three |
| Ingress Protection Rating | IP20 |
| NEMA Rating | NEMA 1 |
| EMC Filter | Industrial |
| Drive Loop | Open, Closed |
| No. of Digital Inputs | 5 |
| No. of Analog Inputs | 1 |
| No. of Digital Outputs | 1 |
| No. of Analog Outputs | 1 |
| No. of Relay Outputs | 1 |
| Height (mm) | 333 |
| Width (mm) | 60 |
| Depth (mm) | 140 |
| Weight (kg) | 1.6 |
