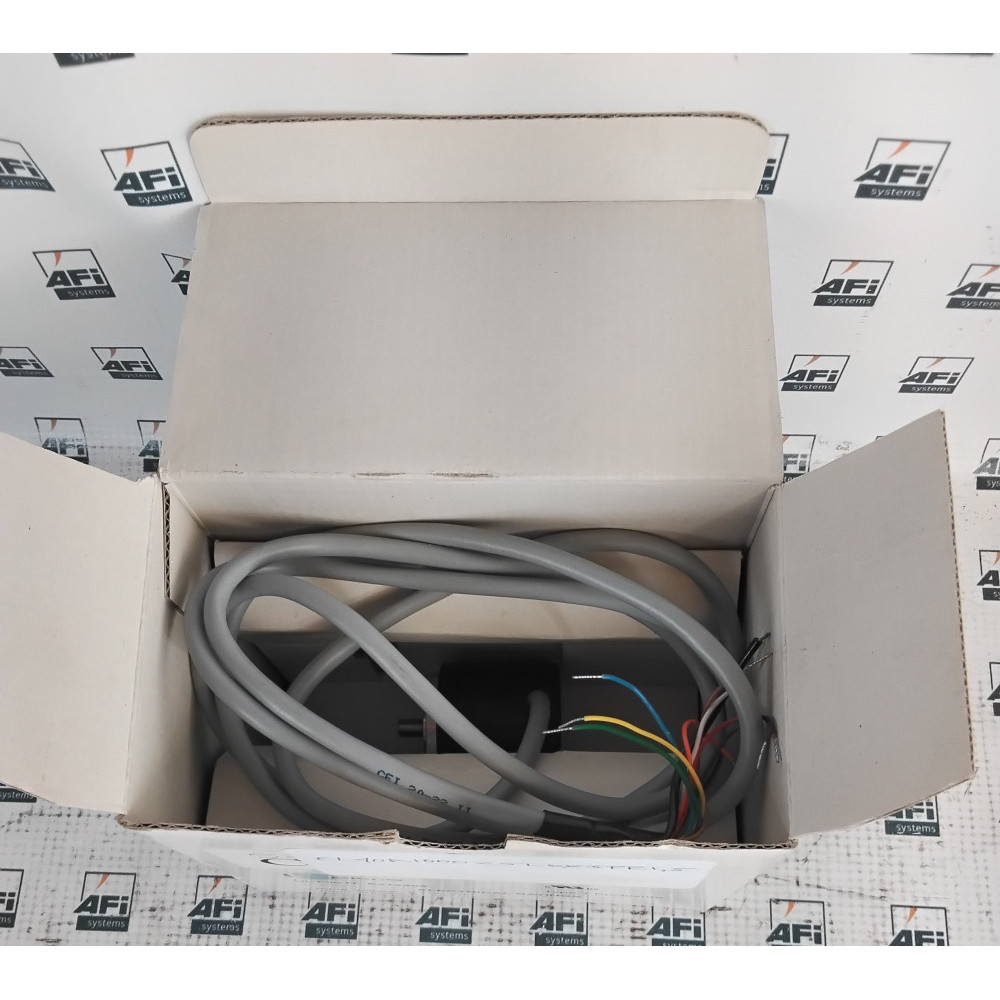

Eltra EL40A1000Z5L6X3PR1,5 Encoder
Eltra Encoder
- Principle of operation: incremental
- Shaft type: solid shaft
- Mounting type: clamping flange
- Electronic interface: line driver
- Special features: miniaturized
- Resolution, ppr: 1000
- Zero pulse: +
- Power supply, V DC: 5
- Shaft diameter, mm: 6
- Enclosure rating: IP54
- Max Rotation speed, rpm: 3000
- Output type: cable
- Direction type: radial
- Construction size (diam.), mm: 42
- Max output frequency: 150 kHz
- Operating temperature , °C: -10…+60
- Operating temperature , °F: +14…+140
- Cable lenth, m: 0,5
- Measurement type: rotary
- Type of sensor: optical
- Weight, g: 100
