KG5016 ifm efector

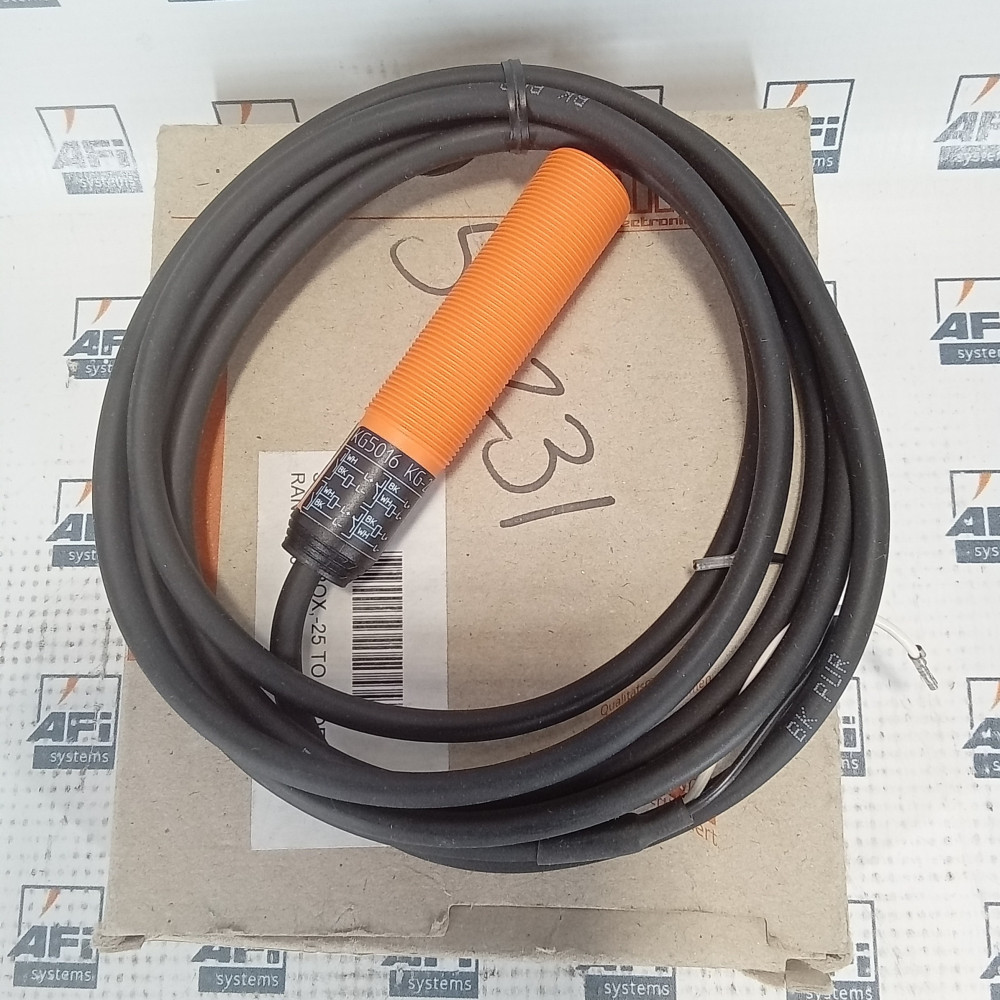

IFM Efector KG5016 Capacitive Sensor

IFM Efector Capacitive Sensor

Electrical design: PNP/NPN

Output function: normally open / closed; (selectable)

Sensing range[mm]: 8

Housing: Threaded type

Dimensions[mm]: M18 x 1 / L = 85

Operating voltage[V]: 10...55 DC

Protection class: II

Reverse polarity protection: yes

Max. voltage drop switching output DC[V]: 4.6

Minimum load current[mA]: 4

Max. leakage current[mA]: 0.6

Permanent current rating of switching output DC[mA]: 400

Switching frequency DC[Hz]: 50

Short-circuit protection: yes

Type of short-circuit protection: yes (non-latching)

Overload protection: yes

Sensing range[mm]: 8

Sensing range adjustable: yes

Factory setting sensing range[mm]: 8

Real sensing range Sr[mm]: 8 ± 10 %

Operating distance[mm]: 0...6.5

Correction factor: glass: 0.4 / water: 1 / ceramics: 0.2 / PVC: 0.2

Hysteresis[% of Sr]: 1...15

Switch-point drift[% of Sr]: -15...15

Ambient temperature[°C]: -25...80

Protection: IP 67

EMC: EN 60947-5-2

HousingThreaded typeMountingnon-flush mountableDimensions[mm]M18 x 1 / L = 85Thread designationM18 x 1MaterialPBT
