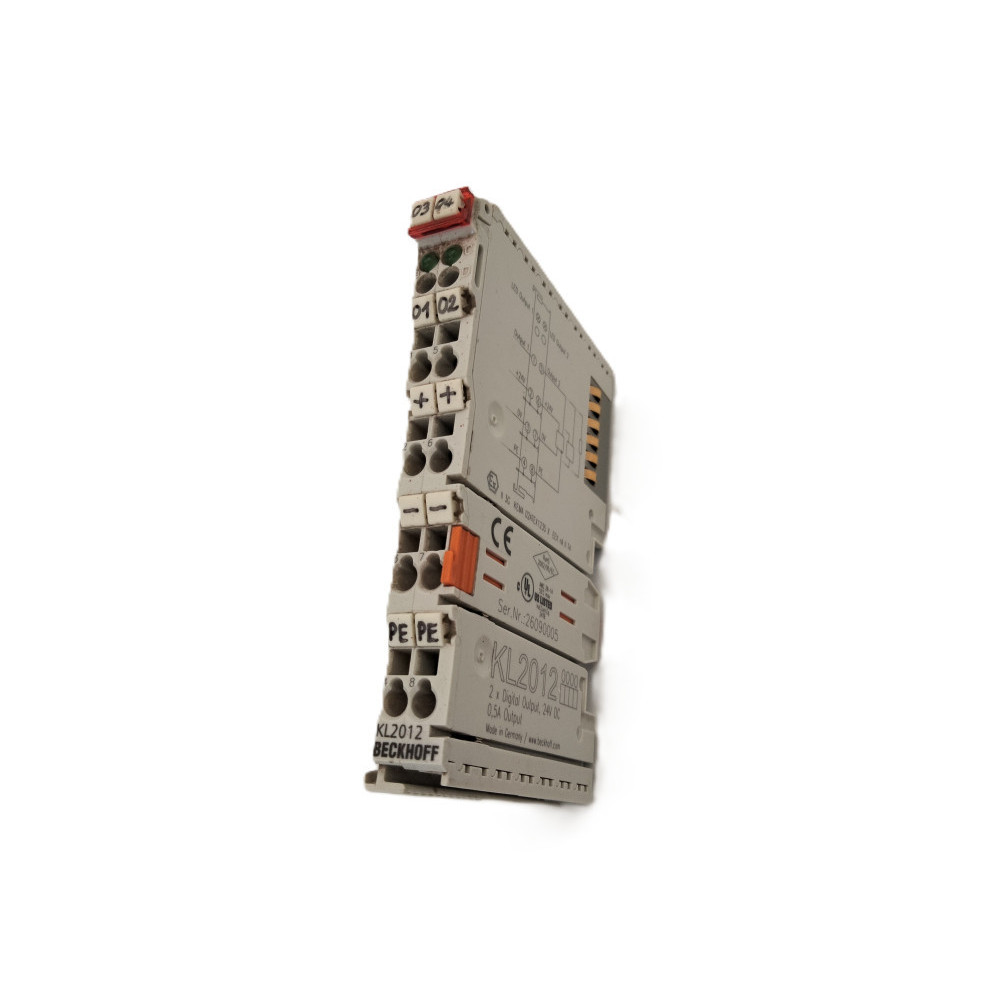

Image shown is a representation only. Actual product may vary -
-
-
-
Beckhoff KL2012 2-Channel Digital Output Bus Terminal
The KL2012 by Beckhoff is a 2-channel 24VDC, 0.5A digital output module for use in a Beckhoff K-bus PLC system. Sports electrically isolated terminals for ohmic, inductive, lamp type loads.
Rated for operation between 0°C...+55°C @ 95%max relative humidity, non-condensing. IP20 rated casing, 100mm x 12mm x 68mm (HxWxD), approx. 55g weight.
KL2012 Specifications
| PLC Voltage (V) | 24 |
| PLC Output/Channel (Amps) | 0.5 |
| PLC Inputs (Total) | 0 |
| PLC Outputs (Total) | 2 |
