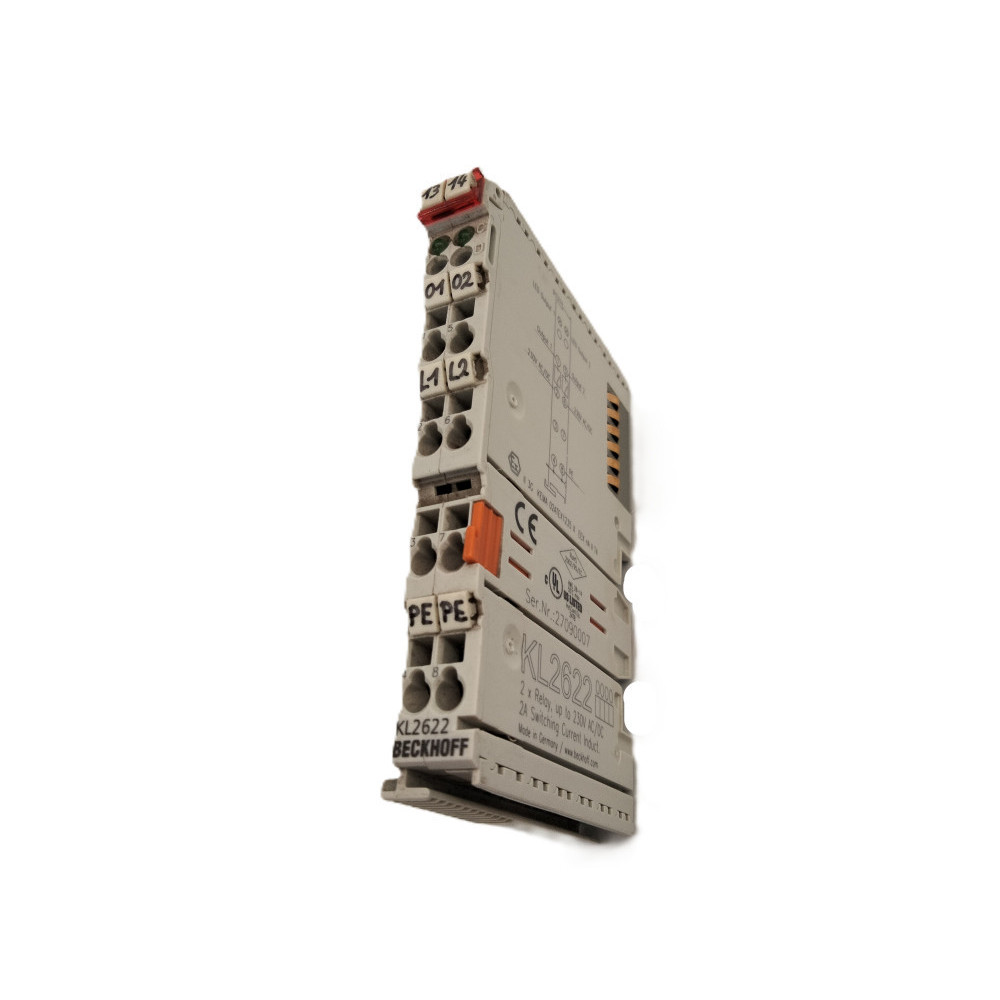

Image shown is a representation only. Actual product may vary -
-
-
-
Beckhoff KL2622 2-Channel Relay Output Module
The Beckhoff KL2622 is a 2-channel 30VDC/230VAC relay output module for use in Beckhoff K-bus PLC systems. Relay contacts are potential free @ 5A/pt. and suitable for ohmic, inductive, lamp type loads, /w/ an ohmic switching current of 5A and an inductive switching current of 2A.
Rated for operation between -25°C...+65°C @ 95%max relative humidity, non-condensing. IP20 rated casing, 100mm x 12mm x 68mm (HxWxD), weight of approx. 80g.
KL2622 Specifications
| PLC Voltage (V) | 30 |
| PLC Output/Channel (Amps) | 5 |
| PLC Inputs (Total) | 0 |
| PLC Outputs (Total) | 2 |
