OJ5026 ifm efector

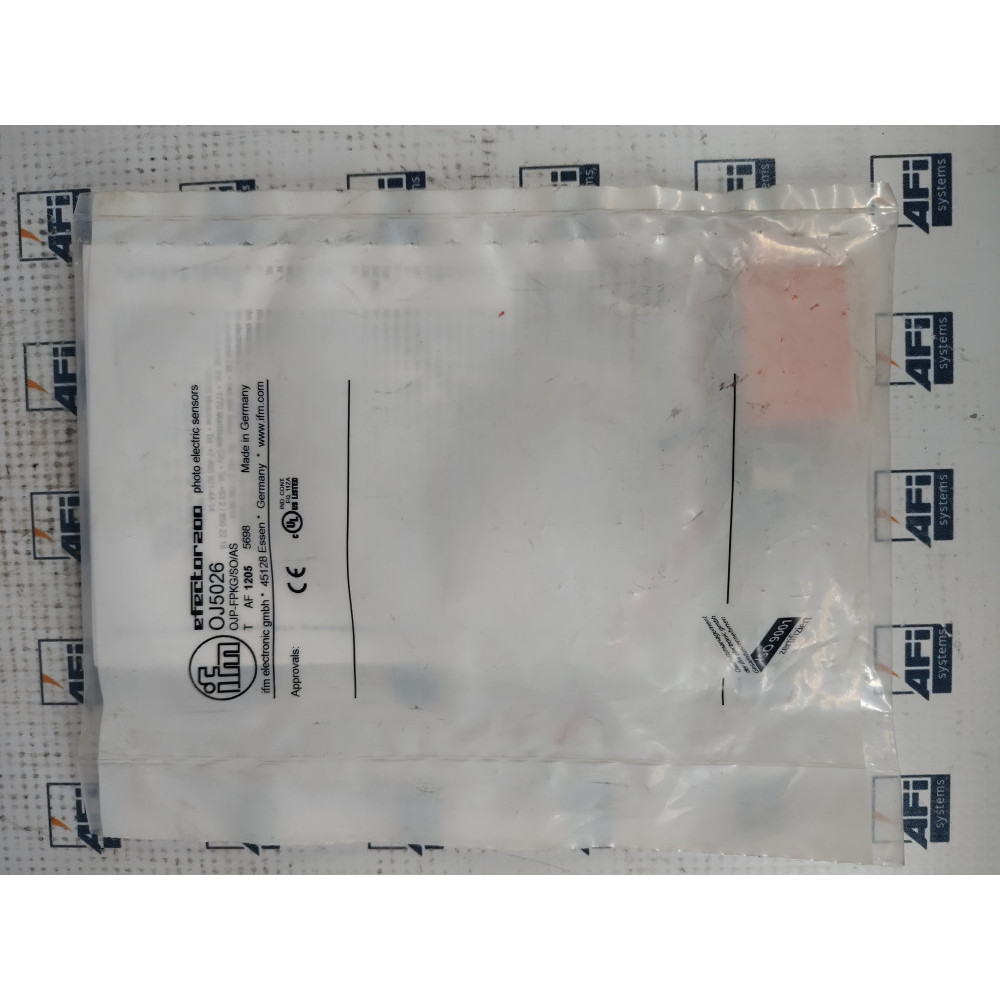

IFM OJ5026 Retro reflective sensor

Retro reflective sensor

Type of light: red light

Housing: rectangular

Application

System: polarization filter

Function principle: Retro-reflective sensor

Electrical data

Operating voltage[V]: 10...30 DC

Current consumption[mA]: < 22

Protection class: III

Reverse polarity protection: yes

Type of light: red light

Wave length[nm]: 660

Outputs

Electrical design: PNP

Output function: light-on/dark-on mode; (programmable)

Max. voltage drop switching output DC[V]: 2.5

Permanent current rating of switching output DC[mA]: 200

Switching frequency DC[Hz]: 2000

Short-circuit protection: yes

Type of short-circuit protection: yes (non-latching)

Overload protection: yes

Monitoring range

Range referred to prismatic reflector[m]: 0...2; (Prismatic reflector Ø 80 E20005)

Range adjustable: yes

Max. light spot diameter[mm]: 64

Light spot dimensions refer to: at maximum range

Polarization filter available: yes

Operating conditions

Ambient temperature[°C]: -25...60

Protection: IP 67

Tests / approvals

EMC: EN 60947-5-2

MTTF[years]: 854

Mechanical data

Weight[g]: 27.3

Housing: rectangular

Dimensions[mm]: 35 x 11 x 24

Material: housing: ABS; fixture: diecast zinc; LED window: SEPS; pushbutton: SEPS

Lens material: glass

Lens alignment: Side sensing

Displays / operating elements

Display: Switching status 1 x LED, yellow Power 1 x LED, green Function 1 x LED, red

Electronic lock: yes

Accessories

Items supplied: screws: 2 x (M3 x 16 mm) Basic clip: 1, E20964 spring washers: 2 Nuts: 2

Remarks: cULus - Class 2 source required

Pack quantity1 pcs.

Connection: Connector: 1 x M8; coding: A
