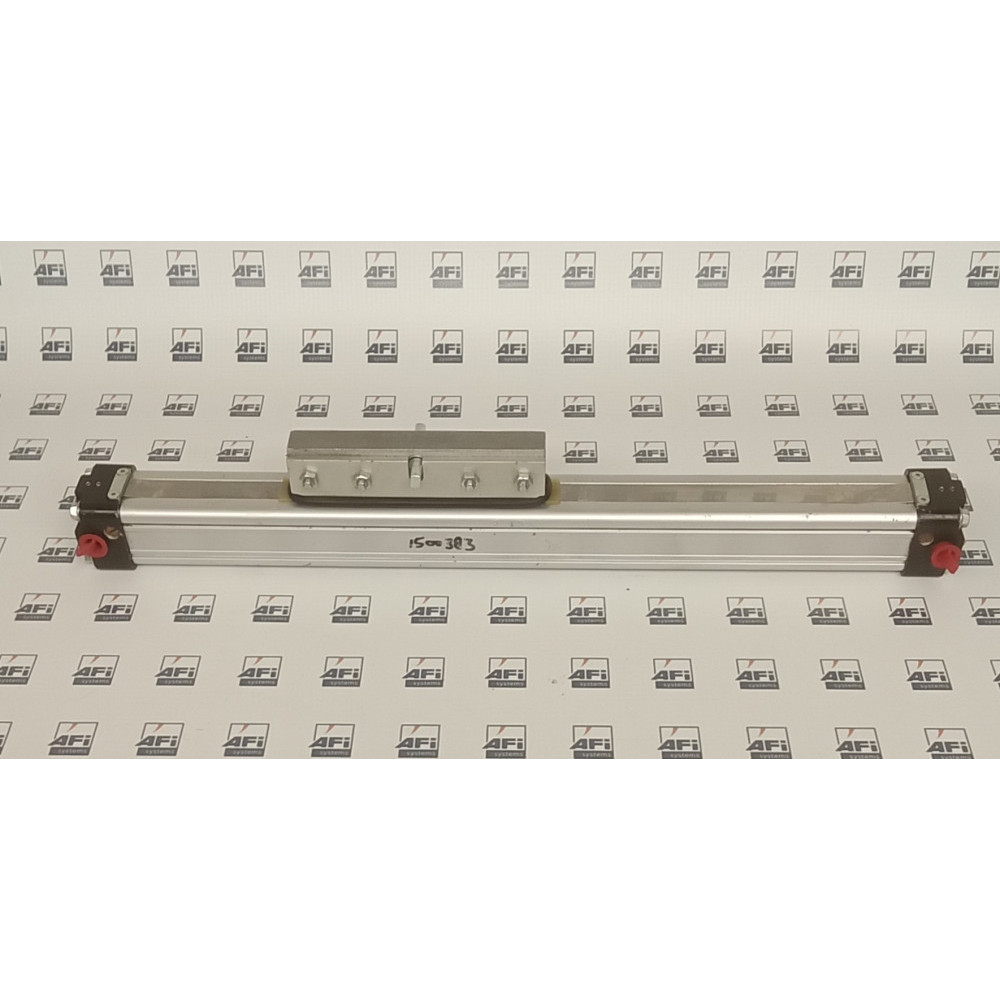

P210/25-25X220MM PARKER SCHRADER BELLOWS

PAKER SHRADER BELLOWS/ ORIGA P210/25-25X220MM

Part Type: Pneumatic rodless actuator/cylinder. Key Specifications: Bore Size: 25 mm. Stroke Length: 220 mm. The 220MM in the part number indicates the specific stroke length of 220 millimeters. Action: Typically double-acting. Maximum Operating Pressure: Up to 8 bar (approx. 116 psi). Features: Rodless Design: The carriage moves along the cylinder profile, eliminating the need for an external rod and providing a compact solution for limited space applications. Sealing: Features a corrosion-resistant steel inner and outer sealing band for low friction and protection from the environment. Cushioning: Includes adjustable end position cushioning at both ends. Modularity: Designed for integration into the larger "ORIGA SYSTEM PLUS", allowing for direct mounting of modular components like guides, brakes, and switches. Material: Optimized cylinder profile for maximum stiffness and minimum weight.
