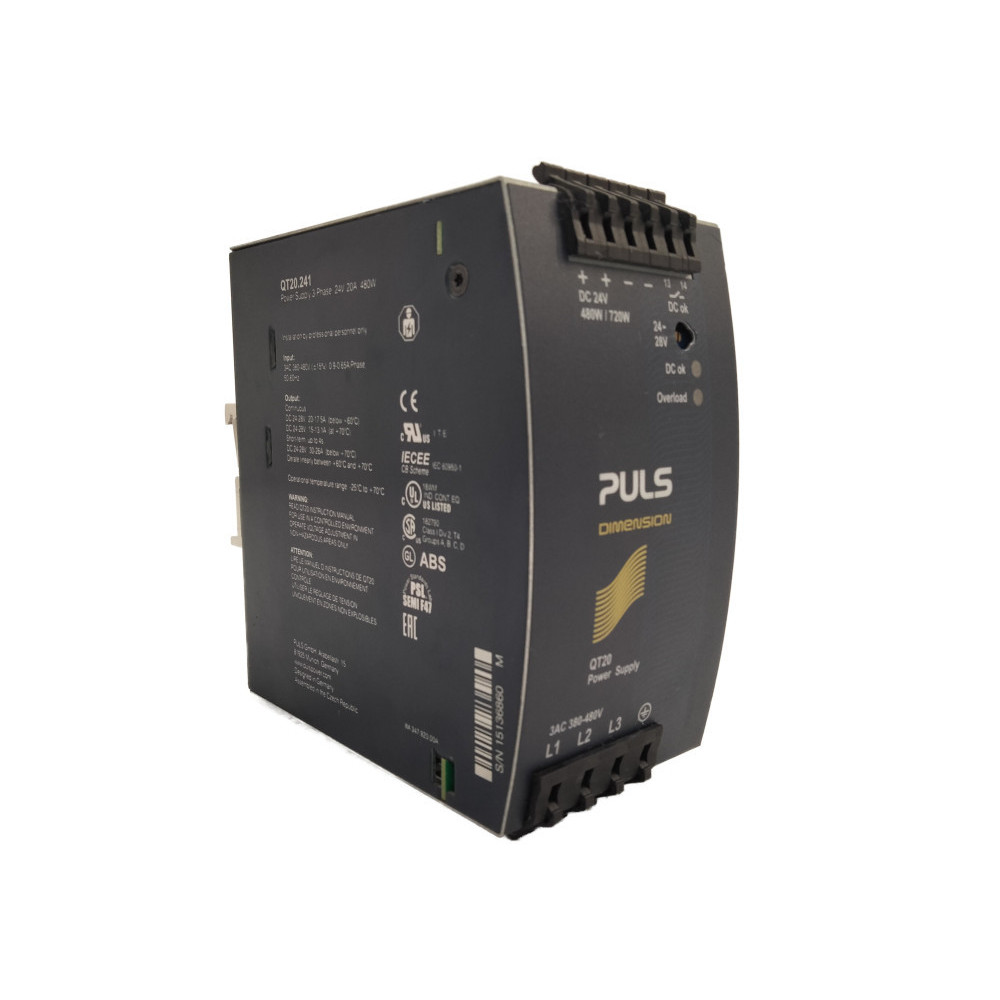

Puls QT20.241 3-Phase 24VDC 480W Power Supply
The QT20.241 is a power supply by Puls, taking 0.65...0.9A/ph input on a 3ph 380...480VAC supply ±15% @ 50/60Hz.
Suitable for operation between -25°C...+70°C. 17.5A...20A output @ 24...28VDC <=+60C for 480W, derate linearly at 12W/Δ°C above 60°C up to 70°Cmax. Short-term overload of 26A...30A @ 24...28VDC for up to 4s at a temperature of <=+70°C.
Active harmonic correction and active input inrush current limitation for input inrush current of 3A. Power factor of 0.94, ripple and noise voltage max. of 100mVpp.
DIN rail mounted, unit measuring 124mm x 65mm x 127mm (HxWxD), weight of approx. 870g.
