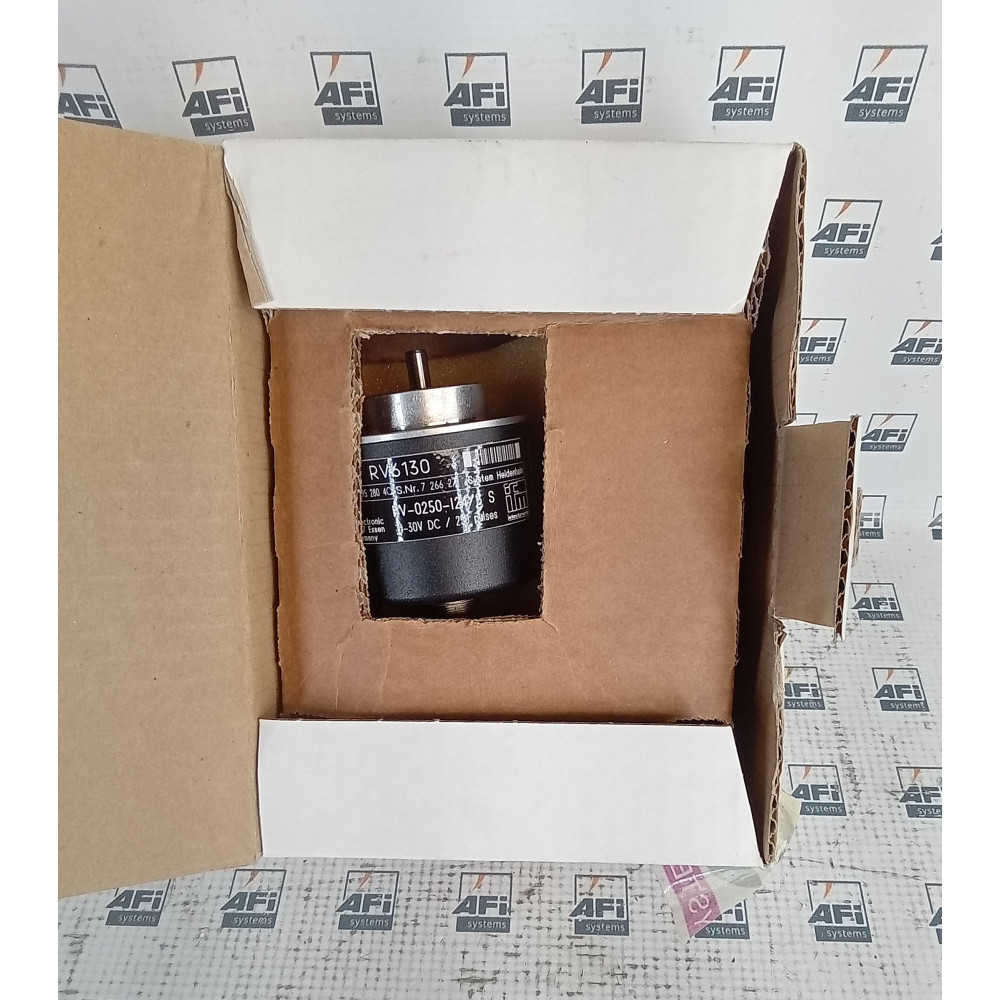

IFM Efector RV6130 Encoder
IFM Efector Encoder
Resolution: 250 resolution
Shaft design: solid shaft
Shaft diameter[mm]: 6
Electrical data
Operating voltage[V]: 10...30 DC
Current consumption[mA]: 150
Outputs
Electrical design: HTL
Max. current load per output[mA]: 50
Switching frequency[kHz]: 160
Type of short-circuit protection: < 60 s
Phase difference A and B[°]: 90
Measuring/setting range
Resolution: 250 resolution
Operating conditions
Ambient temperature[°C]: -30...85
Storage temperature[°C]: -30...100
Max. relative air humidity[%]: 98
Protection: IP 64
Tests / approvals
Shock resistance: 100 g (6 ms)
Vibration resistance: 10 g (55...2000 Hz)
Mechanical data
Housing: cylindrical
Dimensions[mm]: Ø 58 / L = 85
Materials: aluminium
Max. revolution, mechanical[U/min]: 12000
Max. starting torque[Nm]: 1
Reference temperature torque[°C]: 20
Shaft design: solid shaft
Shaft diameter[mm]: 6
Shaft material: steel (1.4104)
Max. shaft load axial (at the shaft end)[N]: 10
Max. shaft load radial (at the shaft end)[N]: 20
Electrical connection
Connector: 1 x, axial
