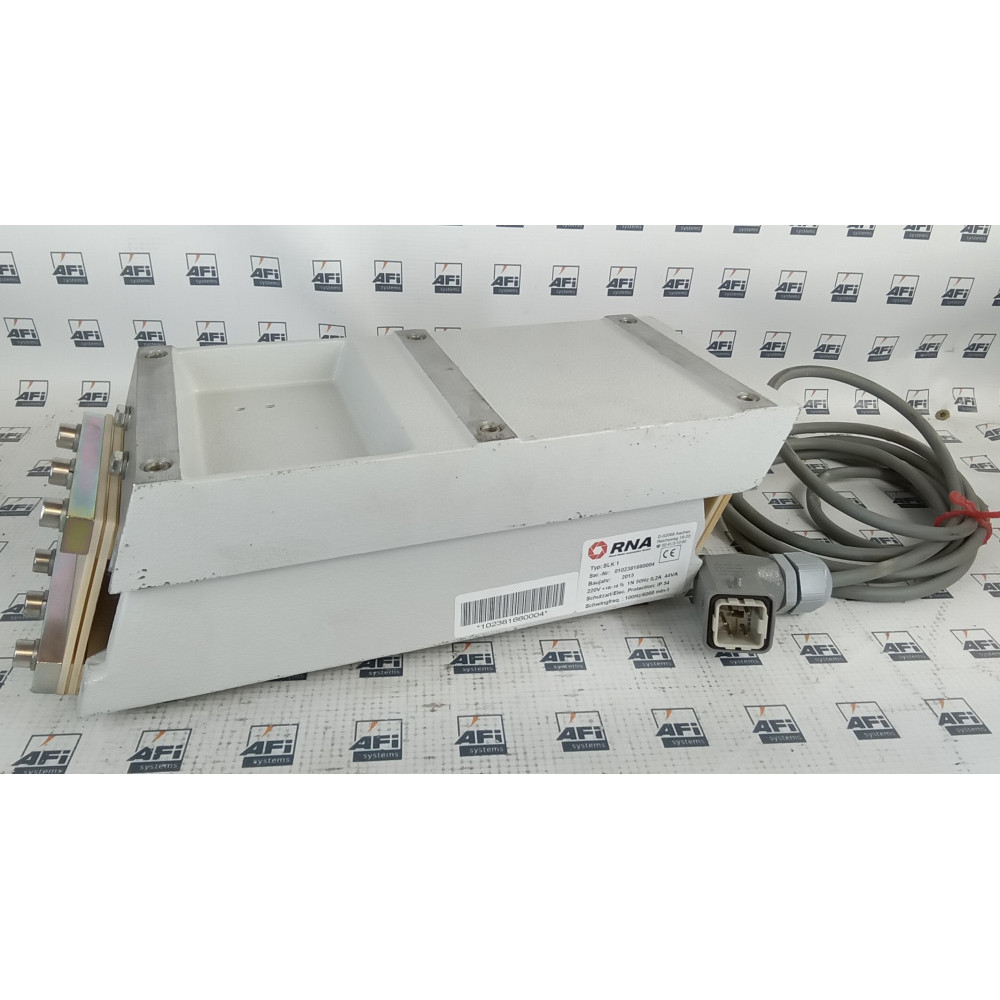

RNA SLK 1 Line Feeder
RNA Line Feeder
Dimensions L x W x H in mm: 305 x 123 x 104
Weight in kg: 7,8
Insulation type: IP 54
Connecting cable length in m: 1,5
Power consumption (1) in VA: 44
Current consumption (1) in A: 0,2
Magnet nominal voltage (1)/Frequency in V/Hz: 200 / 50
Number of magnets: 1
Magnet type: ME 1/100/120
Magnet colour: brown
Air gap in mm: 1,0
Vibration frequency in Hz/min: 100 / 6.000
Number of spring assemblies: 2
Standard no. of springs Number per spring assembly: 1 x 3,0; 1 x 2,5 2 x 2,5
Spring dimensions Length (gauge for boreholes) x width in mm: 73(59) x 85
Spring size in mm: 2,5; 3,0
Spring material: Plastic
Quality of the spring fastening screws: 8.8
Tightening moment of the spring fastening screws in Nm: 15
Max. weight of the oscillating units (linear track) depending on the mass moment of inertia and required running speed approx.kg in kg: 1,3 - 3,4
Max. track length in mm: 400
Maximum useful weight of the linear feeder in kg: 1,3 - 3,4
