SLX145 Sprint Electric

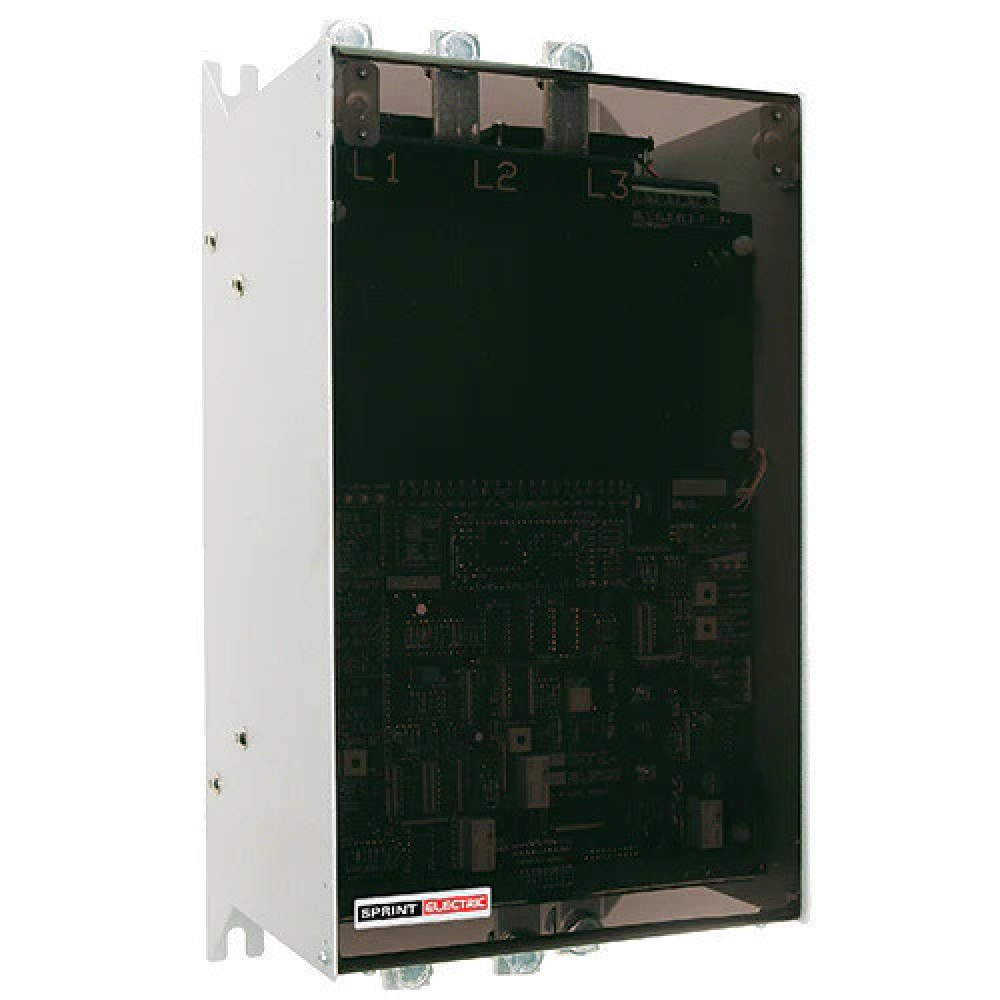

Sprint Electric SLX145 SLX Series DC Drive

SLX145 SLX Series 4Q Non-Regenerative DC Thyristor Drive by Sprint Electric /w/ 3ph 200...240/380...480VAC Input ±10% @ 50/60Hz and 145kW, 190HP, 330A Output.

Features Built-in Field Weakener for Extended Field Ranges; 50% Peak Torque for Rapid Acceleration or Shock Loads; ±10, 12, 24VDC Control Rails.

Zero Reference Interlock Facility, Ideal for Extruder Applications; Numerous Alarms for Enhanced Drive and Motor Protection; High Accuracy Armature Voltage Feedback Mode, Eliminating the Need for Tacho in Most Applications.

Automatic Economy Field Mode for Motor Protection in Cold Climates; Torque Control Input for Basic Winding and Tension Control /w/ Speed Over-limiting; Many Other Input and Output Terminals, Ideal for System Applications; Regen. Stop Feature Available.

270A Armature Input + 10A Field, 350A Fuse to Suit Input Bridge @ 128000A²s. 3ph Field and Armature Supplies Input Through Different Terminals, May be at Different Levels if Desired. Use a Choke in the Supply @ 25µH, 264A.

Forced Venting /w/ Control Fed Fan Supply Source. Rated for 40°C Ambient, 160mm Ventilation Above, 100mm Ventilation Below, No Side Ventilation. 234W^max Heat Loss.

Frame Size 2; 204mm Wide x 187mm Deep x 410mm High /w/ 11kg Weight. Panel Mount /w/ M6 Screw Fixings on 418mm x 140mm Centers.

SLX145 Specifications
