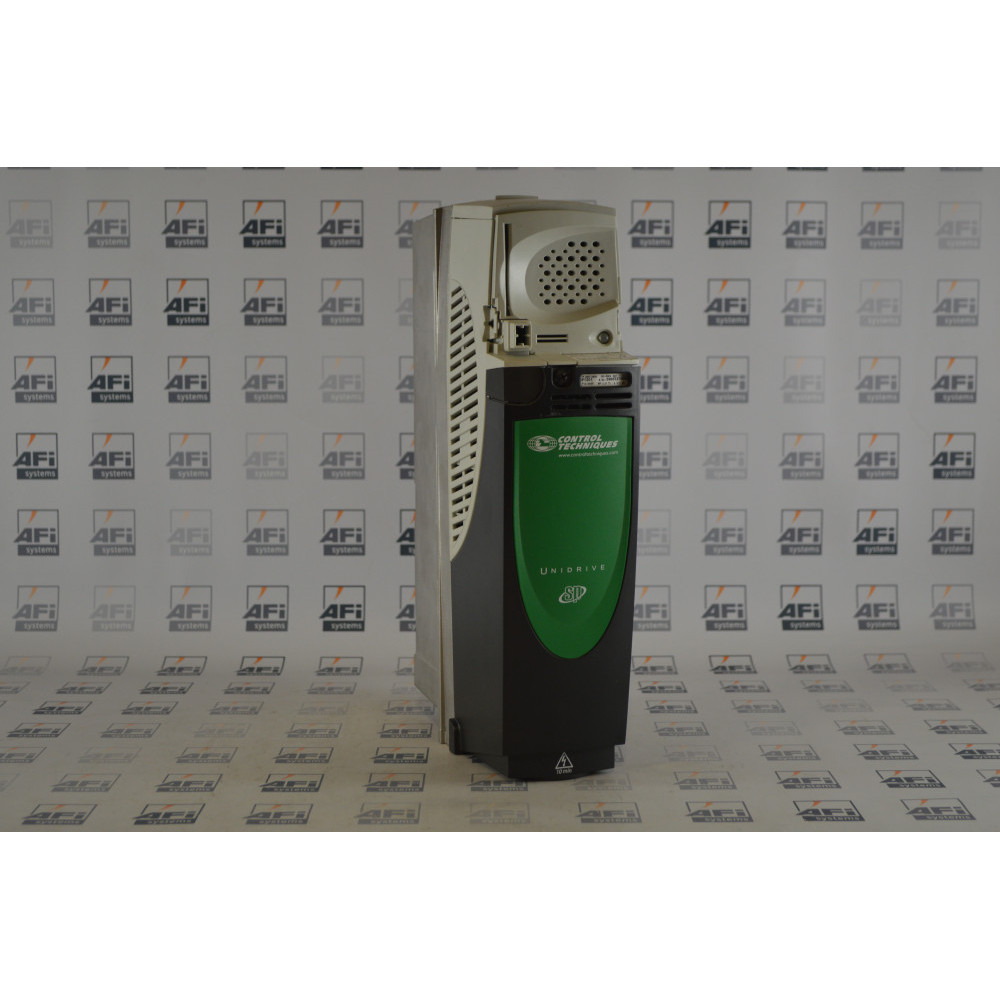

Control Techniques Unidrive SP1201 AC Inverter Drive
The Control Techniques SP1201 is a 3 phase, 0.75Kw, 4.3 amp, 200-230V AC inverter drive without a keypad from the Unidrive SP range.
AFi systems are able to both supply and repair this drive and also other drives from within the Unidrive SP range.
In a breakdown situation we know that speed is key, so if your requirement is urgent give us a call for the fastest possible delivery.
All parts are supplied with our standard 2 year warranty.
SP1201 Specifications
| AC Drive Application | HVAC Fan & Pump |
| AC Drive Depth (mm) | 219 |
| AC Drive Filter | Industrial |
| AC Drive Heavy Duty Output (kw) | 0.75 |
| AC Drive Height (mm) | 322 |
| AC Drive Input Voltage (VAC) | 200...240V AC |
| AC Drive Keypad | Yes |
| AC Drive Logic | Positive |
| AC Drive Loop | Closed |
| AC Drive NEMA Rating | Nema 1 |
| AC Drive Normal Duty Output (kw) | 1.1 |
| AC Drive Nr Analog Inputs | 3 |
| AC Drive Nr Analog Outputs | 2 |
| AC Drive Nr Digital Inputs | 7 |
| AC Drive Nr Digital Outputs | 3 |
| AC Drive Nr Relay Outputs | 1 |
| AC Drive Phase | Three Phase |
| AC Drive Protection | IP20 |
| AC Drive Weight (kg) | 5 |
| AC Drive Width (mm) | 62 |
| AC Drive Heavy Duty Output (Amps) | 4.3 |
| AC Drive Normal Duty Output (Amps) | 5.2 |
