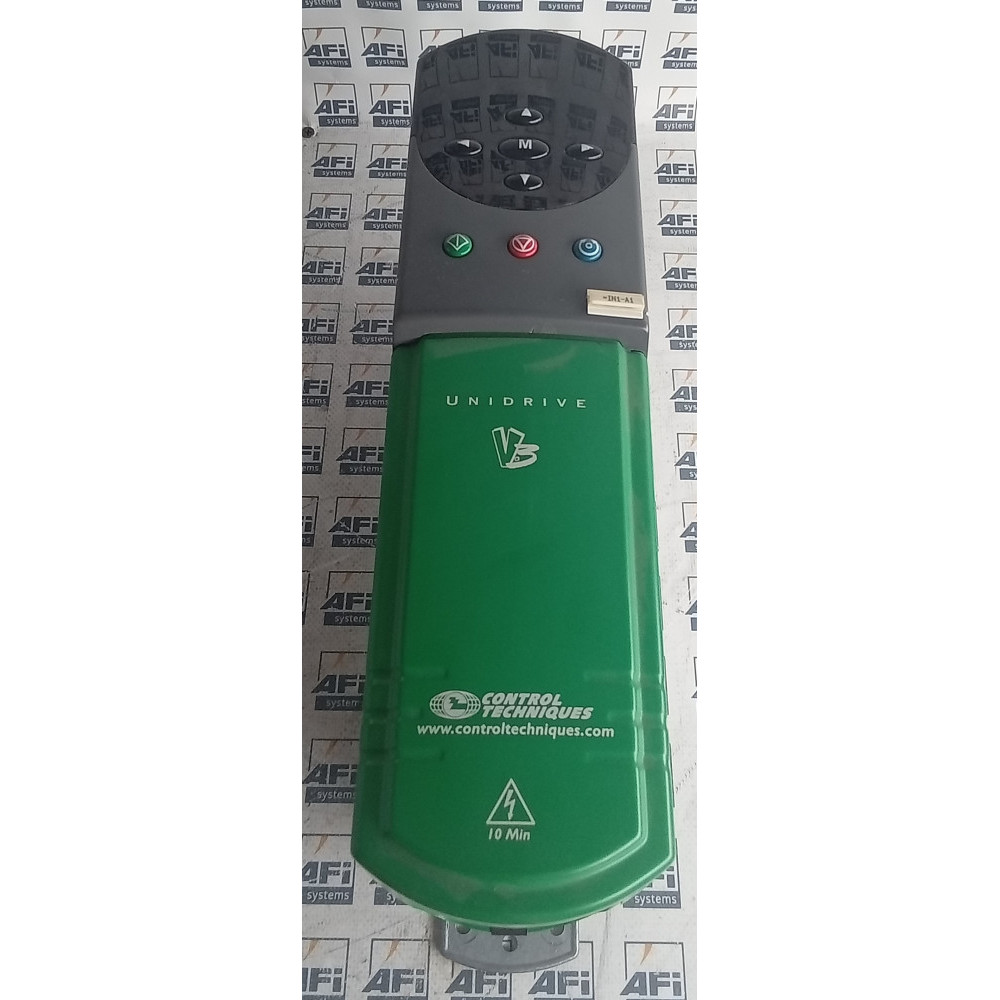

Control Techniques Unidrive UNI1402 AC Inverter Drive
The Control Techniques UNI1402 is a 3 phase, 1.1kW, 2.8 amp AC inverter drive from the Unidrive Classic series.
AFi Systems are able to both supply and repair this drive and also other drives from the Unidrive Classic range.
In a breakdown situation we know that speed is key, so if your requirement is urgent give us a call for the fastest possible delivery.
All parts are supplied with our standard 2 year warranty.
UNI1402 Specifications
| Drive Application | High Performance, HVAC Fan & Pump |
| Input Voltage (VAC) | 380...480 |
| Heavy Duty Power Output (kW) | 1.1 |
| Heavy Duty Output Current (A) | 2.8 |
| Input Phase | Three |
| Ingress Protection Rating | IP00 |
| Drive Keypad | Yes |
| Drive Loop | Open, Closed |
| Drive Logic | Positive, Negative |
| No. of Digital Inputs | 3 |
| No. of Analog Inputs | 3 |
| No. of Analog Outputs | 2 |
| No. of Digital Outputs | 3 |
| Height (mm) | 335 |
| Width (mm) | 95 |
| Depth (mm) | 200 |
