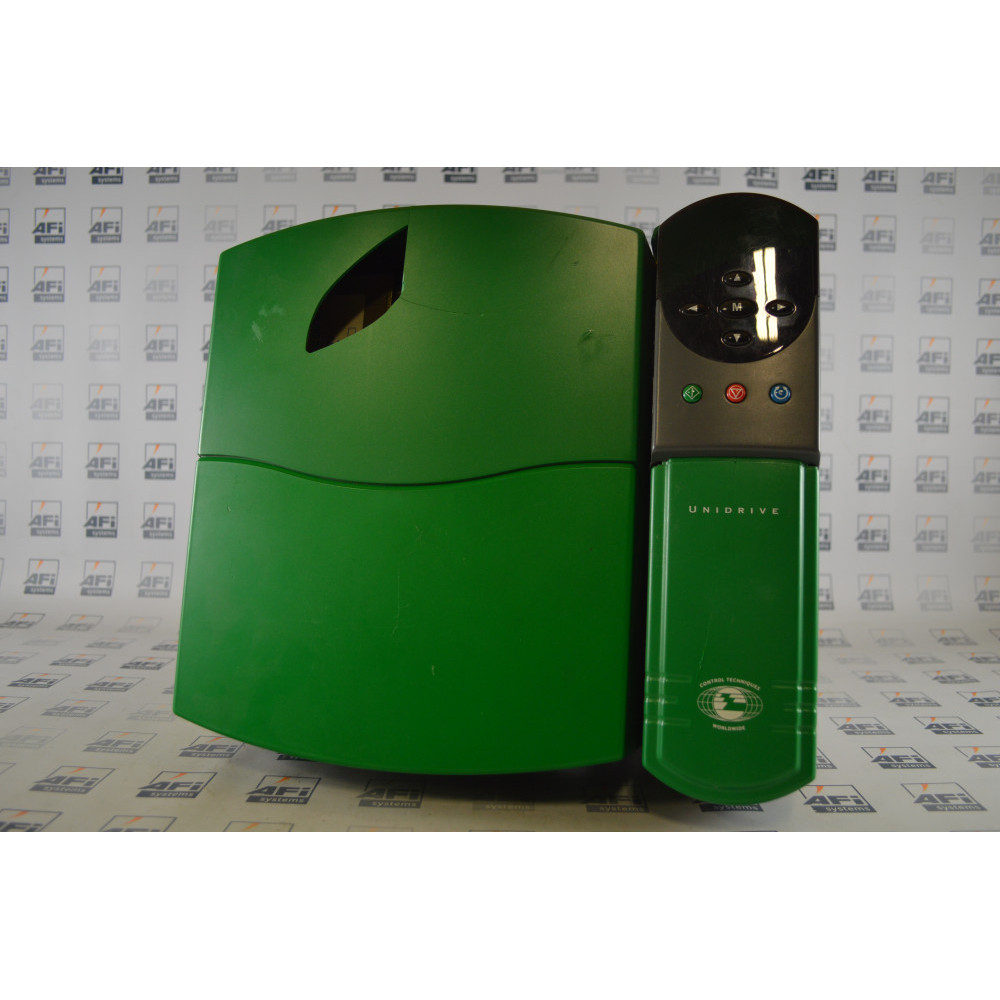

Control Techniques Unidrive UNI3404 AC Inverter Drive
The Control Techniques Uni3404 is a 3 phase, 30kW, 60 amp, 380-480V AC inverter drive from the Unidrive Classic range.
AFi systems are able to both supply and repair this drive and also other drives from within the Unidrive Classic range.
In a breakdown situation we know that speed is key, so if your requirement is urgent give us a call for the fastest possible delivery.
All parts are supplied with our standard 2 year warranty.
UNI3404 Specifications
| AC Drive Application | HVAC Fan & Pump |
| AC Drive Depth (mm) | 260 |
| AC Drive Heavy Duty Output (kw) | 30 |
| AC Drive Height (mm) | 335 |
| AC Drive Input Voltage (VAC) | 380...480V AC |
| AC Drive Keypad | Yes |
| AC Drive Logic | Positive |
| AC Drive Loop | Closed |
| AC Drive Nr Analog Inputs | 3 |
| AC Drive Nr Analog Outputs | 2 |
| AC Drive Nr Digital Inputs | 3 |
| AC Drive Nr Digital Outputs | 3 |
| AC Drive Phase | Three Phase |
| AC Drive Protection | IP00 |
| AC Drive Width (mm) | 375 |
| AC Drive Heavy Duty Output (Amps) | 60 |
Tags: Uni3404
