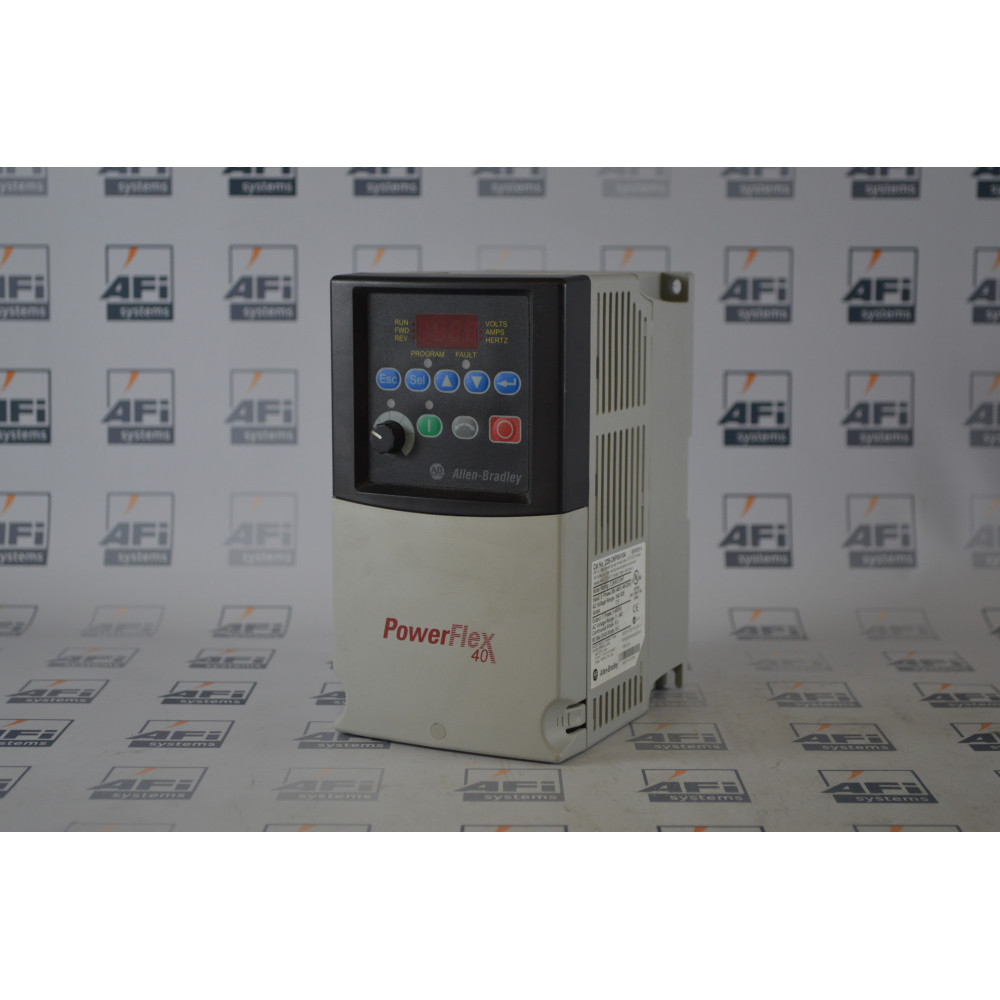

Image shown is a representation only. Actual product may vary -
-
-
-
Allen-Bradley 22B-D6P0N104 2.2kW PowerFlex 40 Series Inverter
The 22B-D6P0N104 is an Allen-Bradley PowerFlex 40 series inverter /w/ 3ph 380...480VAC ±10% supply and 2.2kW, 3HP, 6A output.
Terminals include 7x DI, 2x DQ, 2x AI, 2x AQ and 1x Relay Contact. Unfiltered drive, suitable for operation between -10°C...+40°C.
IP20, NEMA/UL type open rated enclosure, frame size B; 180mm x 100mm x 136mm (HxWxD), net weight of 2.2kg.
22B-D6P0N104 Ser A Specifications
| Input Voltage (VAC) | 380...480 |
| Heavy Duty Power Output (kW) | 2.2 |
| Heavy Duty Power Output (HP) | 3 |
| Heavy Duty Output Current (A) | 6 |
| Input Phase | Three |
| Ingress Protection Rating | IP20 |
| EMC Filter | No Filter |
| Drive Keypad | Yes |
| Drive Loop | Open |
| Drive Logic | Positive, Negative |
| Drive Communications | Modbus |
| No. of Digital Inputs | 7 |
| No. of Analog Inputs | 2 |
| No. of Analog Outputs | 1 |
| No. of Digital Outputs | 2 |
| No. of Relay Outputs | 1 |
| Height (mm) | 180 |
| Width (mm) | 100 |
| Depth (mm) | 136 |
| Weight (kg) | 2.2 |
