Image shown is a representation only. Actual product may vary

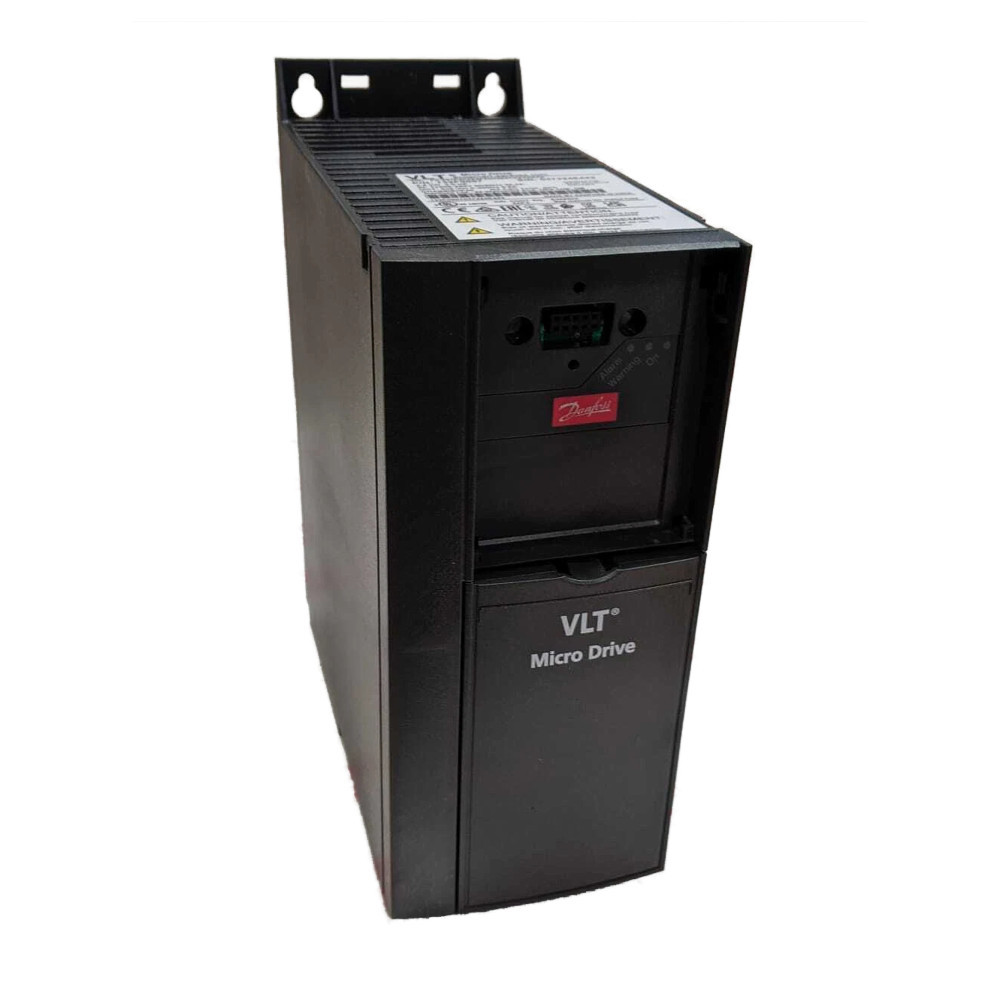

132F0026 4kW 10 A inverter drive , Three Phase 380...480V AC supply (no keypad)
The 132F0026 is a 4kW, 10A, Three Phase inverter drive with a 380...480V AC supply. As part of the VLT Micro Drive series, this inverter drive is incredibly compact, and the book style design enables side by side mounting without derating, making it ideal for most industrial and HVAC applications. Like the rest of the VLT range, the 132F0026 4kW AC drive is built with quality and reliability in mind not to mention ease of use and great functionality.
As an approved Danfoss service partner AFi are able to offer set up support for the 132F0026 as well as the rest of the VLT Micro Drive range. We can also offer 132F0026 repairs.
132F0026 Specifications
| Drive Application | General Purpose |
| Input Voltage (VAC) | 380...480V AC |
| Heavy Duty Power Output (kW) | 4 |
| Heavy Duty Output Current (A) | 10 |
| Normal Duty Power Output (kW) | 4 |
| Normal Duty Output Current (A) | 10 |
| Input Phase | Three Phase |
| Ingress Protection Rating | IP20 |
| EMC Filter | Industrial |
| Drive Keypad | No |
| Drive Loop | Open |
| Drive Logic | Positive, Negative |
| Drive Communications | Modbus Comms |
| No. of Digital Inputs | 5 |
| No. of Analog Inputs | 2 |
| No. of Analog Outputs | 1 |
| No. of Relay Outputs | 1 |
| Pulse Input | 1 |
| Width (mm) | 90 |
