Image shown is a representation only. Actual product may vary

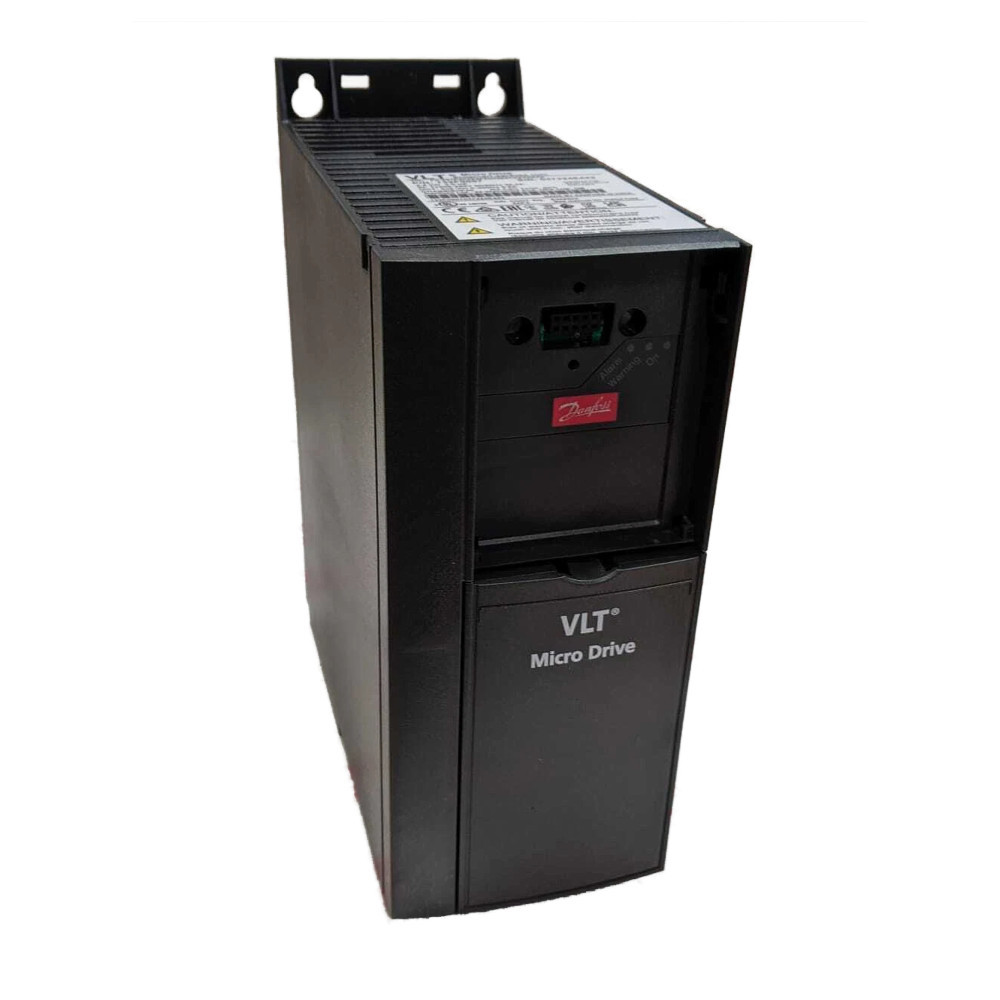

132F0028 5.5kW 13 A inverter drive , Three Phase 380...480V AC supply (no keypad)
The 132F0028 is a 5.5kW, 13A, Three Phase AC drive with a 380...480V AC supply. As part of the VLT Micro Drive family, this inverter drive is incredibly compact, and side by side mounting without derating is possible thanks to the book style design, making it perfect for many industrial and HVAC applications. Like the rest of the VLT range, the 132F0028 5.5kW AC drive is built with quality and reliability in mind not to mention ease of use and great functionality.
As an authorised Danfoss service center AFi are able to offer comissioning support for the 132F0028 as well as the rest of the VLT Micro Drive range. We can also offer 132F0028 repairs.
132F0028 Specifications
| Drive Application | General Purpose |
| Input Voltage (VAC) | 380...480 |
| Heavy Duty Power Output (kW) | 5.5 |
| Heavy Duty Output Current (A) | 13 |
| Normal Duty Power Output (kW) | 7.5 |
| Normal Duty Output Current (A) | 13 |
| Input Phase | Three |
| Ingress Protection Rating | IP20 |
| EMC Filter | Industrial |
| Drive Keypad | No |
| Drive Loop | Open |
| Drive Logic | Positive, Negative |
| Drive Communications | Modbus |
| No. of Digital Inputs | 5 |
| No. of Analog Inputs | 2 |
| No. of Analog Outputs | 1 |
| No. of Relay Outputs | 1 |
| Pulse Input | 1 |
| Width (mm) | 90 |
