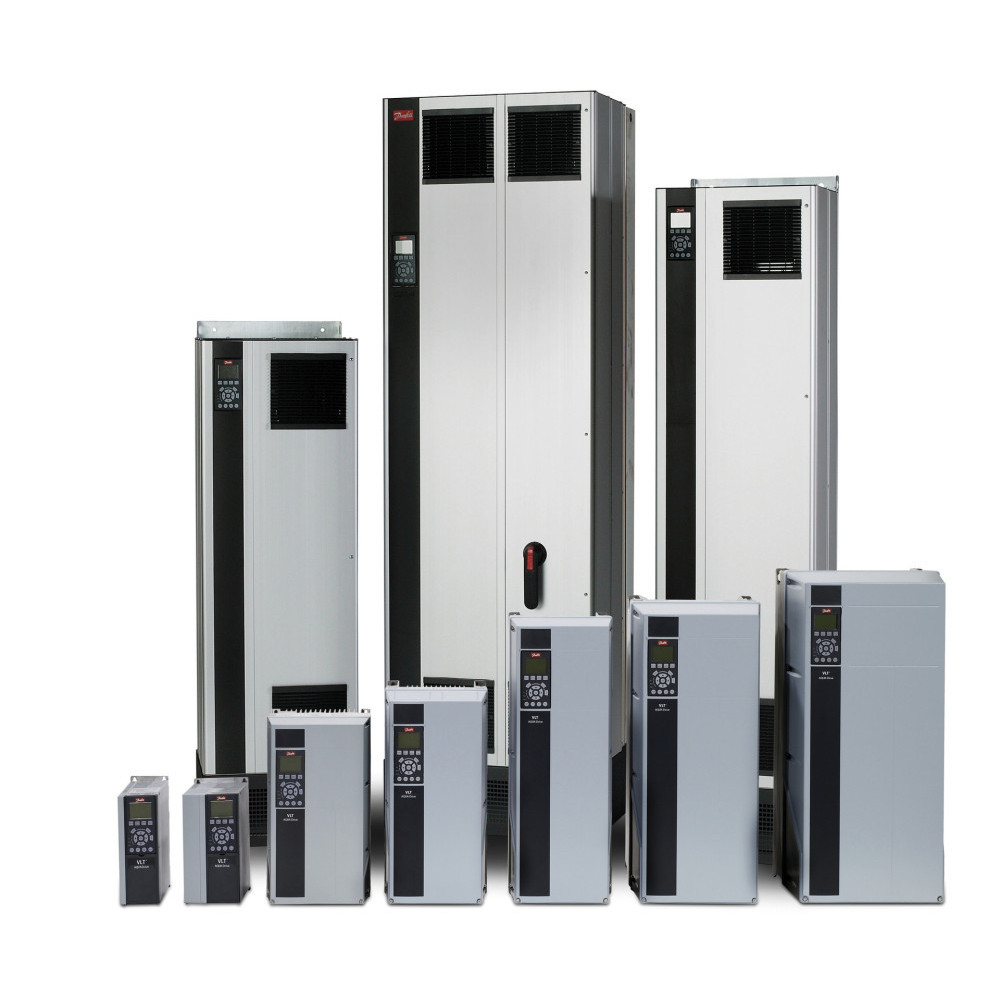

Image shown is a representation only. Actual product may vary
Danfoss 135N4886 (FC-202P30KT6E21HXXGX3XXSXXXXAXBXCXXXXDX) 30HP 27A IP21 VLT Aqua Drive FC-202
The 135N4886 is an optimised inverter for AC motor driven pumping applications, with a continuous output of 30HP, or 27A and running off a Three Phase 525-600V supply.
User friendly comissioning makes installation simple and enables owners to reach the highest level of performance and lowest cost of ownership. Set up the 135N4886 quickly and easily with the user friendly dialogue based Smart Start, and a quick menu. The quick menu provides direct access to the most important features for water and pump applications, by collecting these in one place, the risk of incorrect configuration is reduced significantly.
Featuring a wide selection of powerful, standard features, which can be expanded with performance improving options, the VLT® AQUA Drive is equally suited to both new and retrofit projects. Features such as dry run detection and flow confirmation help to protect your pumps and deragging can be performed as either preventative or reactive cleaning. Motor alternation and cascade controller helps to save energy and reduce equipment costs. These are only a few of the dedicated pumping features of the 135N4886
The 135N4886 is also referred to as FC-202P30KT6E21HXXGX3XXSXXXXAXBXCXXXXDX.
As an approved Danfoss service centre, AFi are also able to offer repairs of the 135N4886, along with field service, installation and commissioning support and selection advice. Our experienced team also provide upgrade advice and implementation and control panel design and build.
135N4886 Specifications
| Input Voltage (VAC) | 525-600V |
| Heavy Duty Power Output (kW) | 22 |
| Heavy Duty Power Output (HP) | 30 |
| Heavy Duty Output Current (A) | 27 |
| Normal Duty Power Output (kW) | 30 |
| Normal Duty Power Output (HP) | 40 |
| Input Phase | Three Phase |
| Ingress Protection Rating | IP21 |
| Drive Keypad | Yes |
| EMC Filter | No RFI Filter |
| Drive Communications | Modbus Comms |
| Drive Loop | Open Loop |
| Drive Logic | Positive, Negative |
| No. of Digital Inputs | 6 |
| No. of Analog Inputs | 2 |
| No. of Digital Outputs | 2 |
| No. of Analog Outputs | 1 |
| No. of Relay Outputs | 2 |
| Pulse Input | 2 |
| Brake Chopper | No |
| Conformal Coating | No |
| Safe Torque Off | No |
