EVS9327-CI Lenze

Lenze EVS9327-CI 15kW 32A 9300 Servo VFD

Manufactured by Lenze and part of the 9300 Servo line, the EVS9327-CI is a servo drive with a 3ph 380...480VAC supply and 15kW, 20HP, 32A output. With years of experience working on Lenze products, AFi Systems are fully prepared to repair and supply the full range of 9300 Servo controllers.

General Information

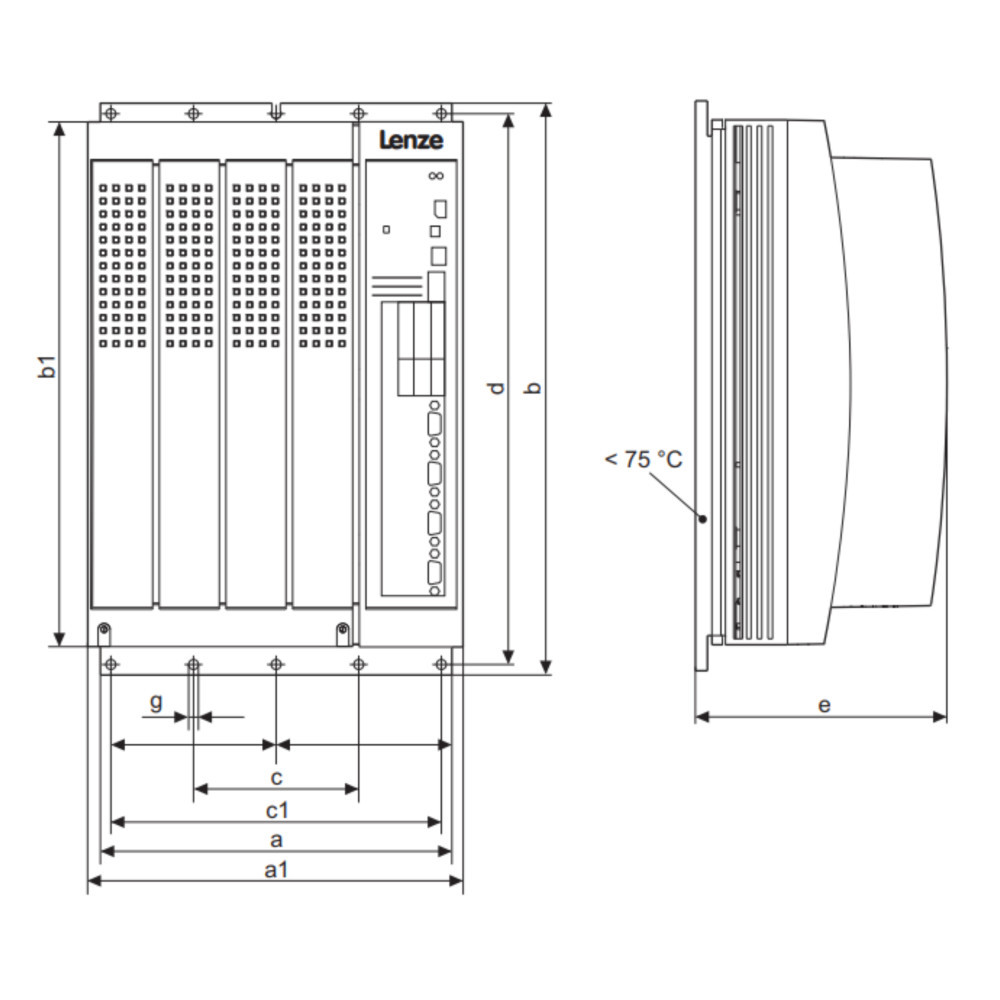

Within a NEMA 1, IP20 rated enclosure, measuring 381mm x 250mm x 171mm (HxWxD) with a weight of 9.5kg.

Terminals include; 2x AI, (-10V...+10V, -20mA...+20mA), 2x AQ (-10V...+10V @ 2mA^max), 5x DI (8mA @ +24V; 0V^LOW...+3V^LOW, +12V^HIGH...+30V^HIGH), 2x DQ (50mA^max; 0V^LOW...+3V^LOW, +12V^LOW...+30V^LOW) and PTC/KTY input.

Drive Application

The EVS9327-CI is a 9300 Servo PLC, denoted by the "-CI" suffix, featuring pre-configured PLC programming solutions.

Easily adapted to application requirements, the pre-configured solutions are designed to support complex drive tasks. Individual function extensions can be programmed using the IEC 61131-3 programming languages.

This drive is suitable for reel changer, handling and robotics with decentralised intelligence, rack drive, and complex motion control applications amongst others.

Communication Modules

The 9300 Servo line of servo inverters supports a wide variety of communication modules. These are listed below, with their order numbers and interface types.

• Keypad XT - EMZ9371BC

• LECOM-A/B (RS-422/485) - EMF2102IBV001

• LECOM-B (RS-485) - EMF2102IBV002

• LECOM-LI (Optical Fibre) - EMF2102IBV003

• LON - EMF2141IB

• INTERBUS - EMF2113IB

• INTERBUS Loop - EMF2112IB

• PROFIBUS-DP - EMF2133IB

• DeviceNet/CANopen - EMF2175IB

Our Repair Process

Any products sent for repair at AFi Systems come with a 2-year warranty to ensure you can be confident in your product upon its return. We will thoroughly service your 9300 Servo controller, ensuring it is bench tested and confirmed operational. Any components subject to degradation over time such as fans and electrolytic capacitors will be replaced to ensure a greater lifespan for your servo drive.

Any Questions?

If you require any assistance or have any questions about whether this 15kW 9300 Servo controller is right for your application and/or environment, be sure to call or email for help. AFi Systems are happy to fulfill your 9300 Servo requests, and can ship drives to you quickly.

EVS9327-CI Specifications
