EVS9328-ET Lenze

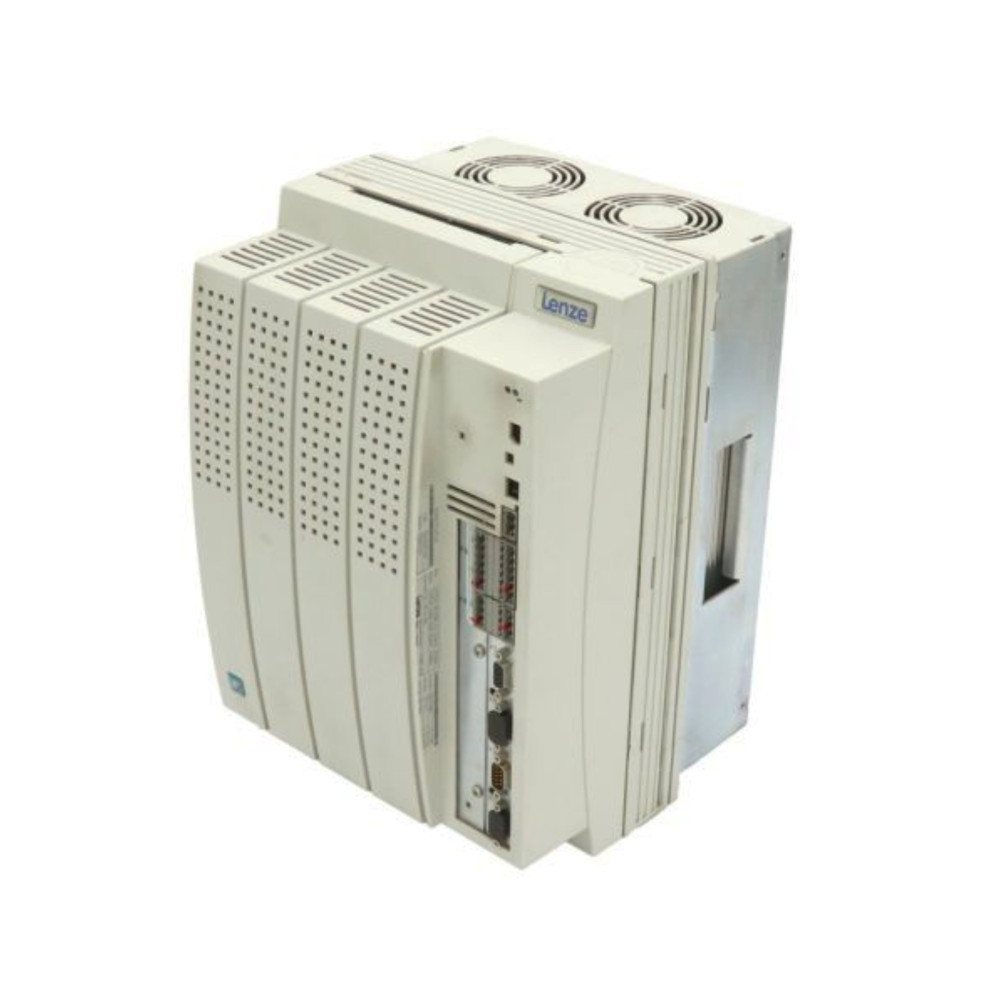

Lenze EVS9328-ET 22kW 47A 9300 Servo Drive

Part of the 9300 Servo line by Lenze, the EVS9328-ET is a servo drive with a 3ph 380...480VAC supply and 22kW, 30HP, 47A output. With years of experience working on Lenze products, AFi Systems are fully prepared to repair and supply the whole line of 9300 Servo drives.

General Information

Within a NEMA 1, IP20 rated enclosure, measuring 402mm x 250mm x 250mm (HxWxD) with a weight of 15kg.

Terminals include; 2x AI, (-10V...+10V, -20mA...+20mA), 2x AQ (-10V...+10V @ 2mA^max), 5x DI (8mA @ +24V; 0V^LOW...+3V^LOW, +12V^HIGH...+30V^HIGH), 2x DQ (50mA^max; 0V^LOW...+3V^LOW, +12V^LOW...+30V^LOW) and PTC/KTY input.

Drive Application

The EVS9328-ET is a 9300 Servo Technology PLC, denoted by the "-ET" suffix, featuring pre-configured PLC programming solutions.

Developed for the general use of technology functions, it is required for use of library functions or pre-configured solutions from the technology packages. Technology packages are available for point-to-point positioning drives, cam drives with individual motion profiles, winding drives with dancer control or tension control, and more.

This drive is suitable for reel changer, handling and robotics with decentralised intelligence, rack drive, and complex motion control applications amongst others.

Communication Modules

The 9300 Servo line of servo drives supports a wide host of communication modules. These are listed below, with their order numbers and interface types.

• Keypad XT - EMZ9371BC

• LECOM-A/B (RS-422/485) - EMF2102IBV001

• LECOM-B (RS-485) - EMF2102IBV002

• LECOM-LI (Optical Fibre) - EMF2102IBV003

• LON - EMF2141IB

• INTERBUS - EMF2113IB

• INTERBUS Loop - EMF2112IB

• PROFIBUS-DP - EMF2133IB

• DeviceNet/CANopen - EMF2175IB

Our Repair Process

Any products sent for repair at AFi Systems come with a 2-year warranty to ensure you can be confident in your product upon its return. We will thoroughly service your 9300 Servo drive, ensuring it is bench tested and confirmed operational. Any components subject to degradation over time such as fans and electrolytic capacitors will be replaced to ensure a greater lifespan for your servo controller.

Any Questions?

If you require any assistance or have any questions about whether this 22kW 9300 Servo drive is right for your application and/or environment, be sure to call or email for help. AFi Systems are happy to fulfill your 9300 Servo requests, and can ship drives to you quickly.

EVS9328-ET Specifications
